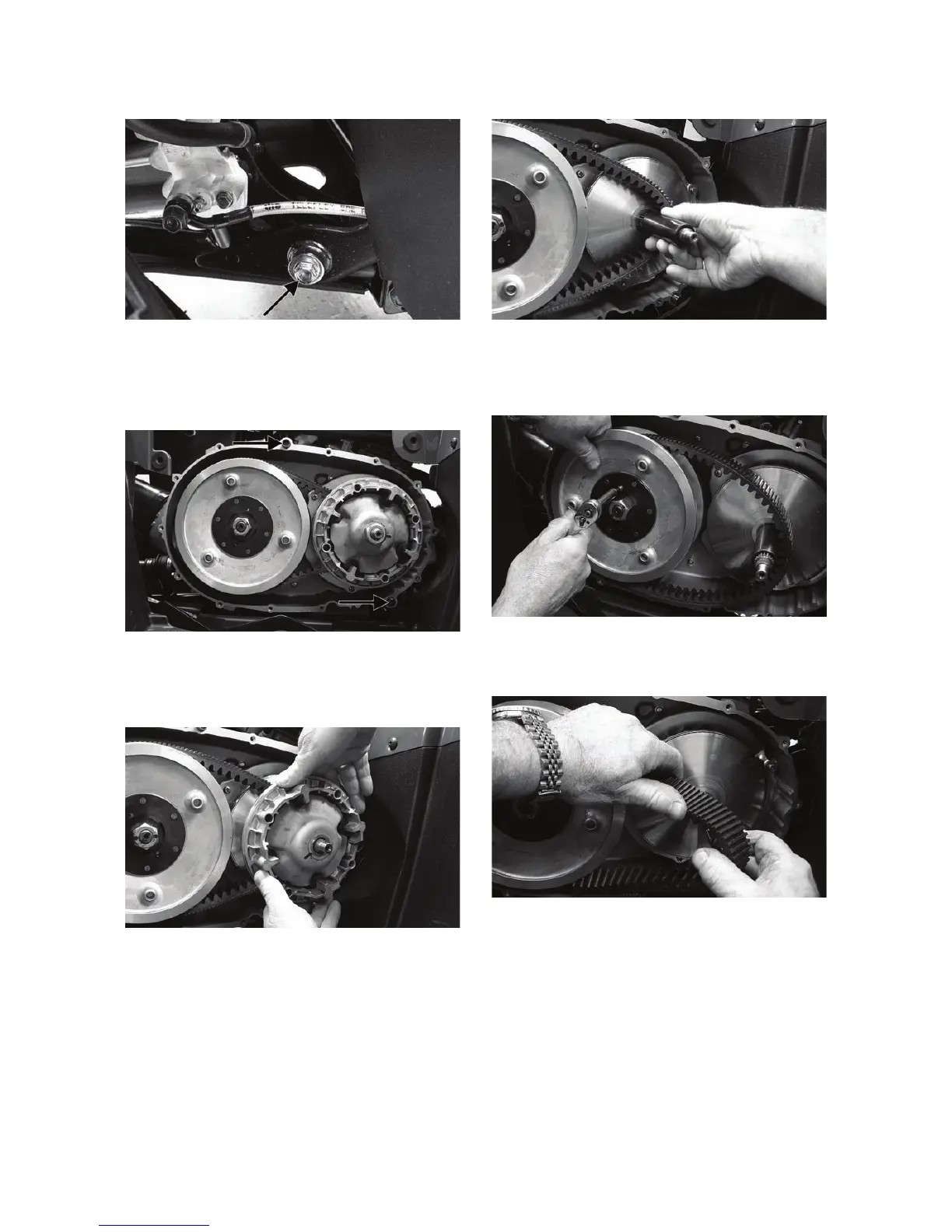

2. Slide the auxiliary brake pedal part way off the
pivot stud but do not remove; then remove the cap
screws from the V-belt housing and remove the
cover. Account for two alignment pins and a gas-
ket.
KC142A
3. Remove the nut securing the movable drive face to
the clutch shaft; then remove the movable drive
face assembly being careful not to let the roller fall
out. Account for a bushing.
KC127
KC128
4. Thread a cap screw from the V-belt cover into the
driven pulley fixed face and push the movable face
open allowing the V-belt to drop down between
the pulley faces approximately 3/4 in.
KC137
5. Pinching the V-belt together in front of the driven
pulley, pull it forward and outward off the clutch
shaft; then remove it from the driven pulley.
KC136
6. Inspect the faces of the drive and driven pulleys
for scoring, pitting, cracks, or grooving; then clean
any dirt and debris from the V-belt housing and
cover.
INSTALLING
1. Place the V-belt onto the driven pulley making
sure the arrows point in the direction of rotation;
then pinch the belt together in front of the driven
pulley and place it over the clutch shaft.
