2-19
2
KC135
KC131

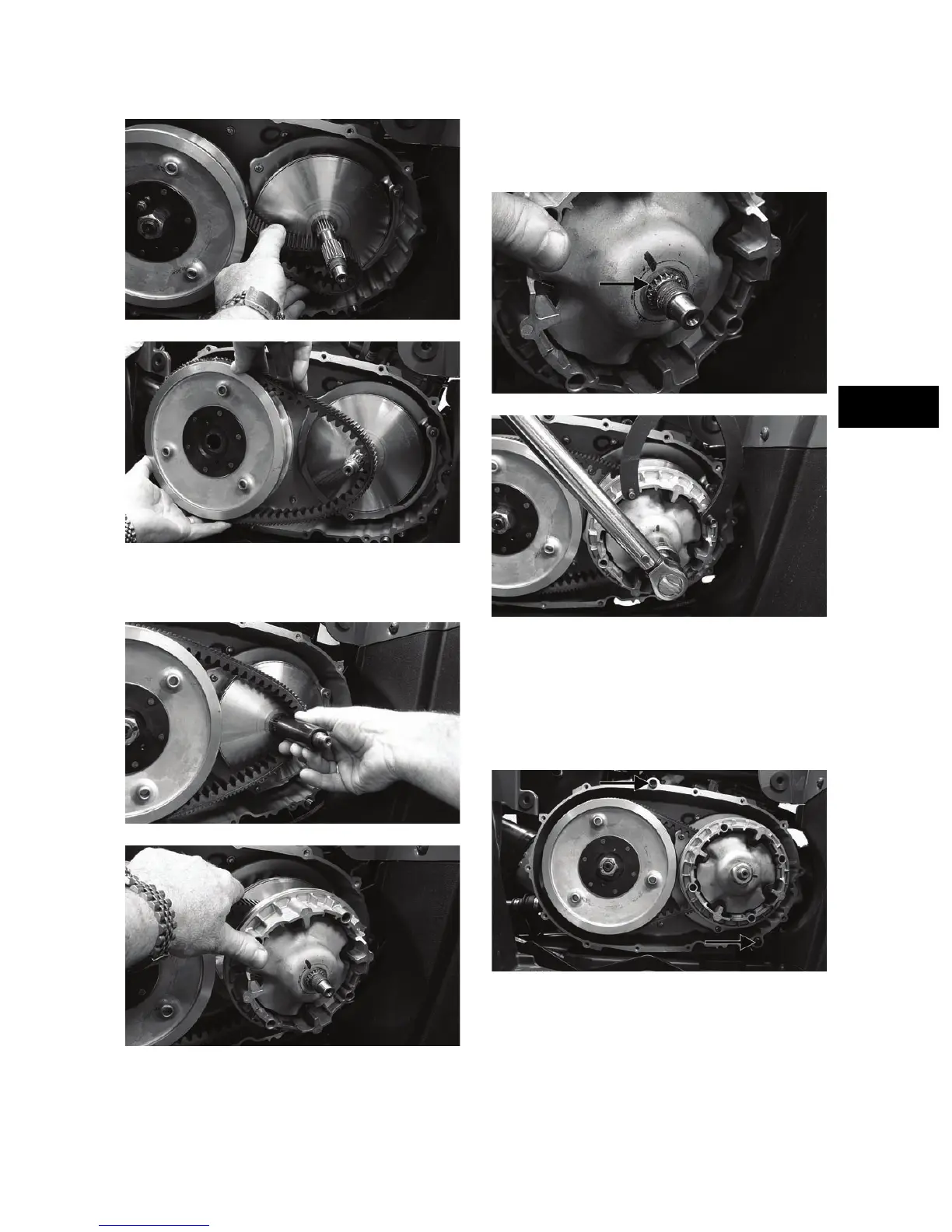

2. Install the bushing over the clutch shaft; then
install the movable drive face assembly on the
clutch shaft.
KC128
KC138
3. With two drops of red Loctite #271 on the threads
and with the splines of the clutch shaft protruding
through the movable drive face, install the nut and
tighten to 147 ft-lb.
KC152A
KC141
4. Remove the cap screw from the fixed driven face;
then rotate the pulleys counterclockwise until the
driven pulley faces are together.
5. With the two alignment pins installed in the V-belt
housing and a new V-belt cover gasket in place,
install the V-belt cover. Using the pattern shown,
secure with the cap screws tightened to 8 ft-lb.
KC142A
