4-3
4
KC257A

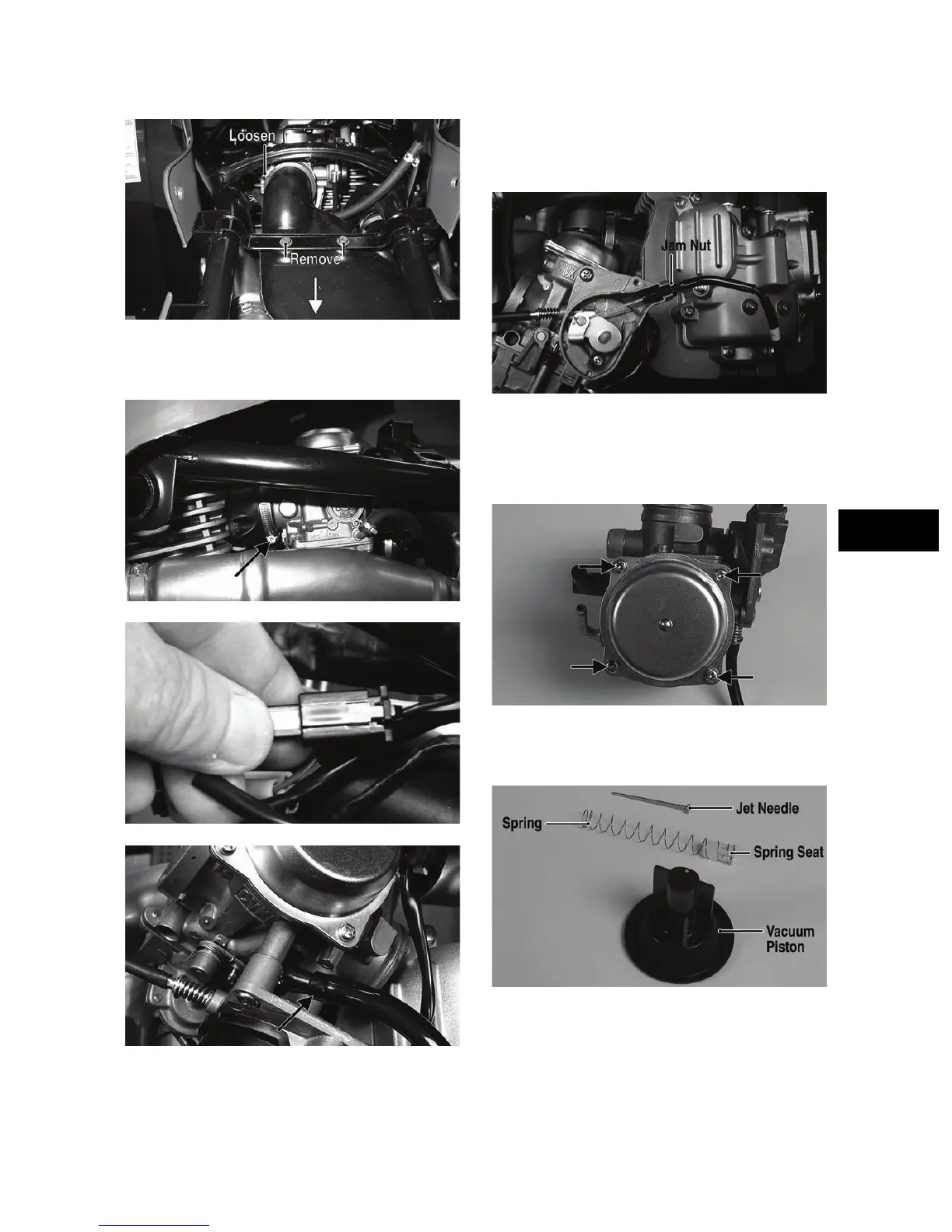

3. Loosen the clamp on the intake pipe and lift the
carburetor up and to the rear; then disconnect the
electric choke connector and vent hose.
KC256A
KC263
KC264A
4. Remove the throttle arm cover; then loosen the
jam nut on the throttle cable and remove the throt-
tle cable from the throttle arm. The carburetor can
now be removed for service.
KC258A
DISASSEMBLING
1. Remove the four Phillips-head screws securing the
top cover; then remove the cover.
KC0019A
2. Remove the vacuum piston assembly from the car-
buretor body. Account for a spring, spring seat,
and the jet needle.
KC0021A
3. Remove the three screws securing the pump hous-
ing. Account for the diaphragm assembly, spring,
and U-ring (in the housing).
