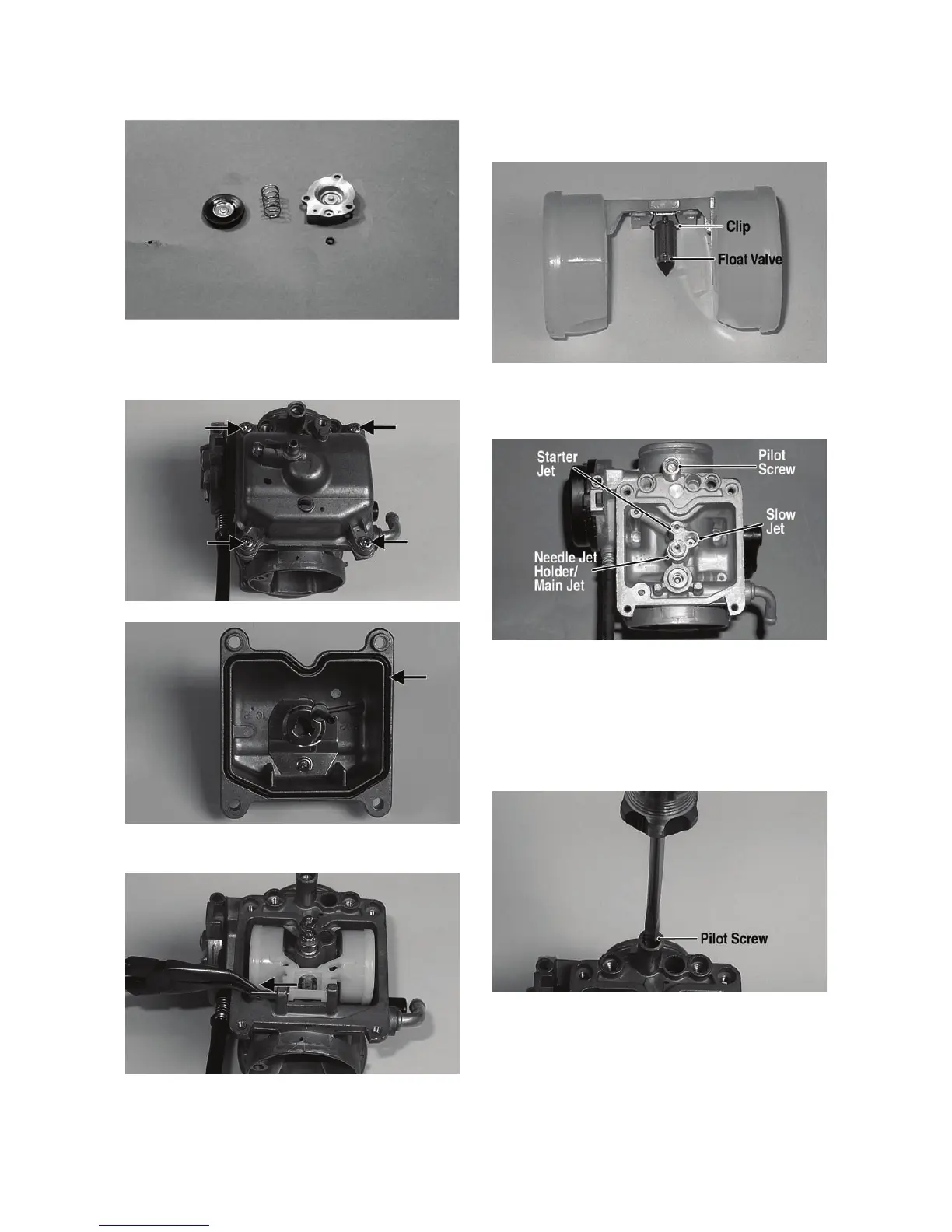

4. Remove the Phillips-head screws securing the
float chamber; then remove the chamber. Account
for the O-ring.
KC0022A
KC0063A
5. Remove the float pin.
KC0024A
6. Lift the float assembly from the carburetor.
Account for the float valve and clip.
KC0025A
NOTE: Note the locations of the jets, pilot screw,
and holder for disassembling procedures.
CC761A
7. Secure the needle jet holder with a wrench; then
remove the main jet.
8. Remove the needle jet holder; then remove the
needle jet, slow jet, and the starter jet.
9. Remove the pilot screw. Account for a spring,
washer, and an O-ring.
KC0028A
