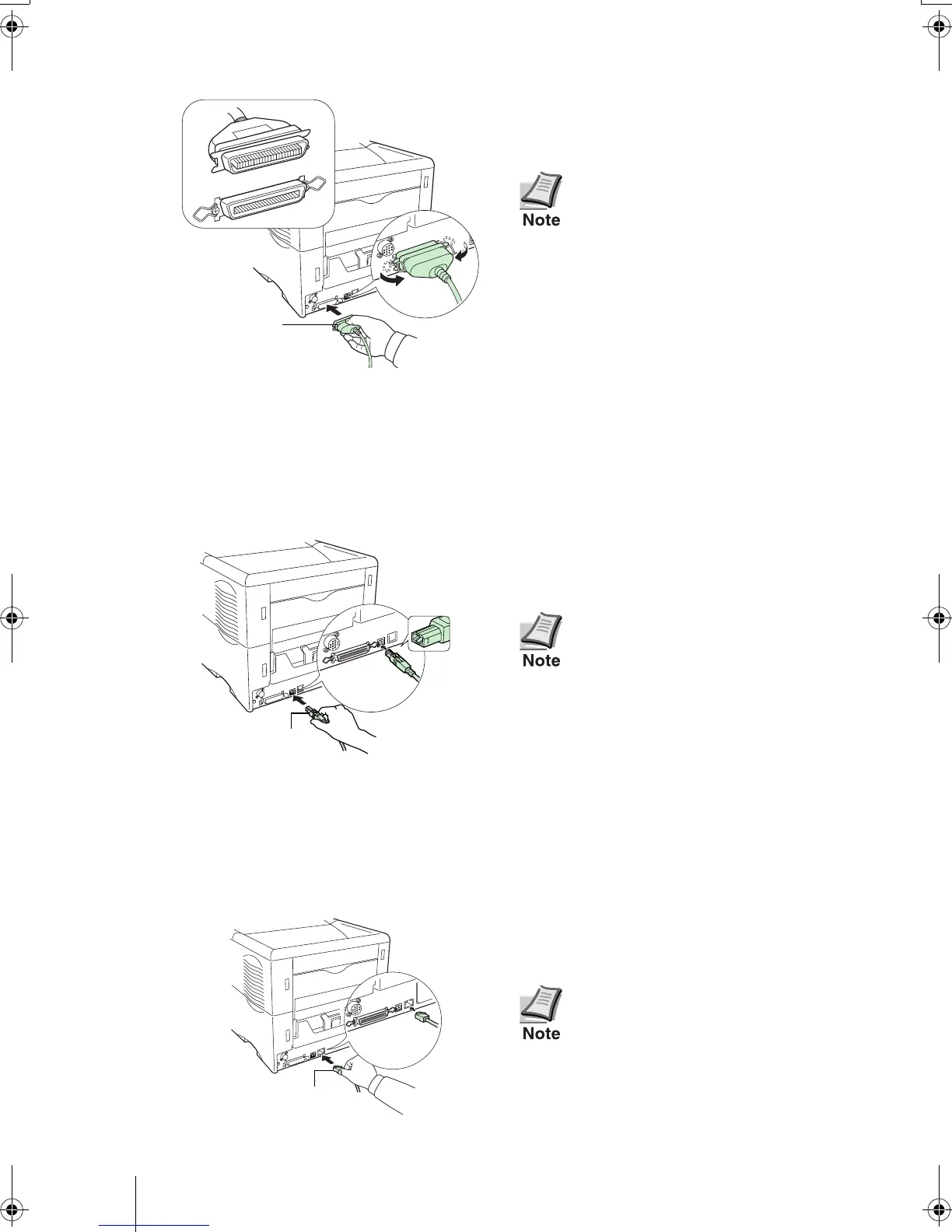

Parallel Interface Connection
1 Plug one end of the printer cable (not
included) into the parallel interface con-
nector on the rear of the printer.
• Use a parallel printer cable
that complies with the
IEEE1284 standards.
• The printer will work best if it
is installed near the com-
puter. The connecting cable
should be shielded and not be
longer than 3 meters (10 feet).
2 Close the clips on both sides to fix the
connector in place.
Plug the other end of the printer cable
into the computer’s parallel interface
connector.
USB (Universal Serial Bus) Interface Connection
1 Plug one end of the USB cable into the
USB interface connector on the rear of
the printer.
• Use a cable that complies
with Revision 2.0 of USB stan-
dard. (a rectangular Type A
plug or a square Type B plug).
• The connecting cable should
be shielded and not be longer
than 5 meters (16 feet).
2 Plug the other end of the USB cable into
the computer’s USB interface connec-
tor.
Network Interface Connection
1 Plug one end of the network cable (not
included) into the network interface
connector on the rear of the printer.
Use an Ethernet cable (10Base-
T or 100Base-TX) as the net-
work cable.
2 Plug the other end of the network cable
into the network hub.
Parallel Printer
Cable
Clip
Clip
USB Cable
Network Cable
