2-9

Drawing Circles

The CIR (draw circle) command draws a circle of a specified radius using the line thick-

ness set by the SPD (set pen diameter) command. The circle drawn is centered on the

current cursor position; the position of the cursor remains unaffected. See the following

example:

!R! RES;

UNIT C;

SPD 0.1;

MZP 8, 8;

CIR 1;

CIR 2;

CIR 3;

PAGE;

EXIT;

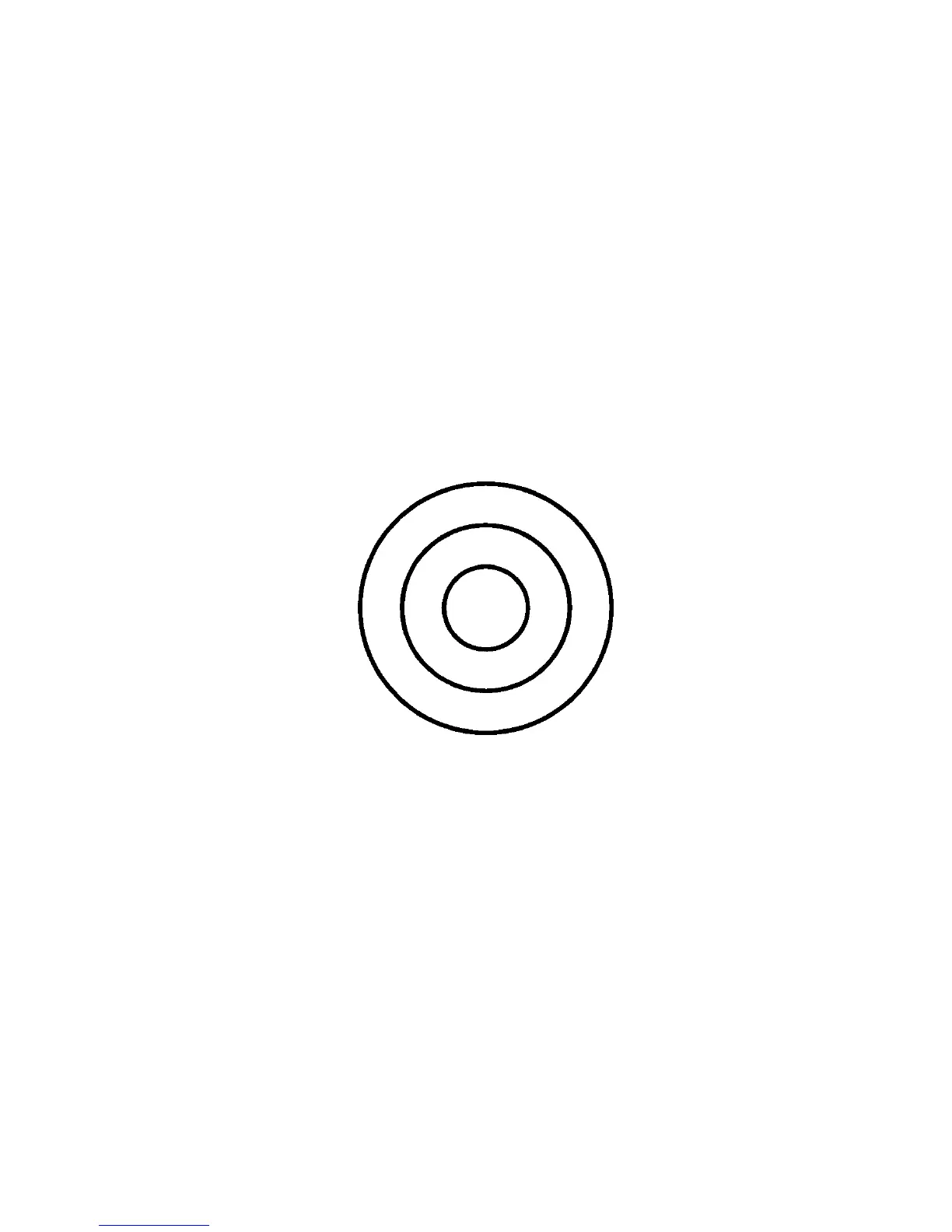

Figure 2. 7. Circles

Lines 1, 2 and 3 start PRESCRIBE mode, reset the printing system to its default parame-

ters, establish the unit of measurement as centimeters, and set the line width to 0.1 centi-

meters.

Next, the MZP command moves the cursor to the point that is 8 centimeters to the right

of the left edge limit and 8 centimeters below the top edge limit.

Lines 5, 6, and 7 draw three circles with radii of 1, 2, and 3 centimeters.

Drawing Filled Shapes

The standard graphics mode provides two types of filled shapes: arcs and blocks. Such

shapes are filled with one of the printing system’s predefined patterns, or with a user

defined pattern.

Filled areas of other shapes can be printed using path mode graphics. For details, see the

explanation in section Path Mode Graphics on page 16.
