Chapter 2 Graphics Tutorial

2-20

Line Ends

The line end type determines how PRESCRIBE renders the ends of lines when they are

stroked onto the page. PRESCRIBE provides three kinds of line ends. These include:

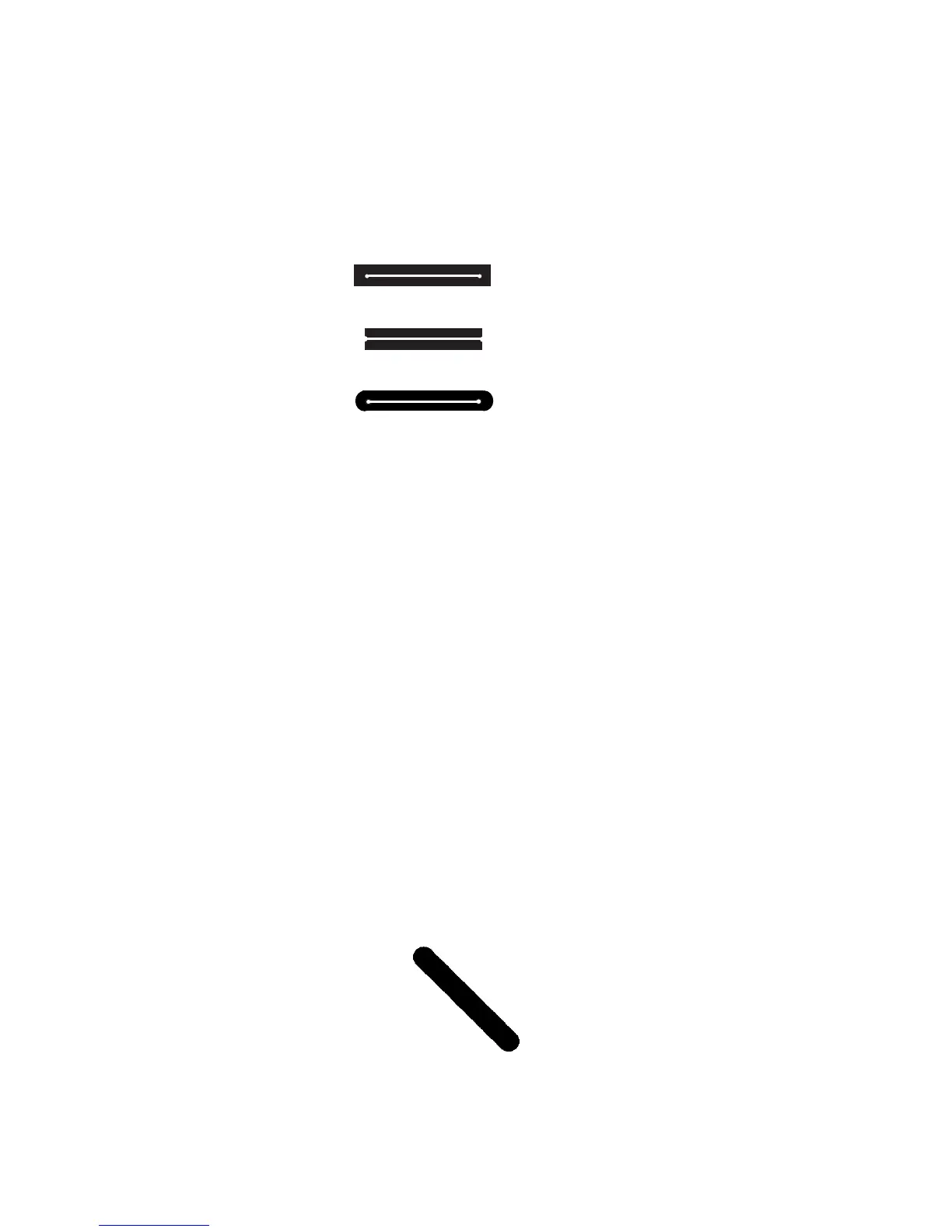

Figure 2. 16. Line Ends

The default line end type is butt caps. You can switch from the current line end type to

any of the other types with the SCAP command. This command uses the following for-

mat:

SCAP line-cap mode;

Value s f or line-cap mode include:

1 (for square caps)

2 (for butt caps)

3 (for round caps)

Use of this command is illustrated in the following example.

!R! RES;

UNIT C; CMNT Sets unit to cm;

NEWP; CMNT Starts new path;

SPD .5; CMNT Sets line width to .5 cm;

SCAP 1; CMNT Sets square caps;

PMZP 2, 2;

PDZP 4, 4;

SCAP 3; CMNT Sets round caps;

STRK;

PAGE;

EXIT;

Figure 2. 17. Printout of SCAP Example

Note that the line is rendered with round caps, rather than with square ones. Although

square caps is set before constructing the path, the line type is changed to round prior to

Square caps

Butt caps

Round caps
