Troubleshooting > Clearing Paper Jams

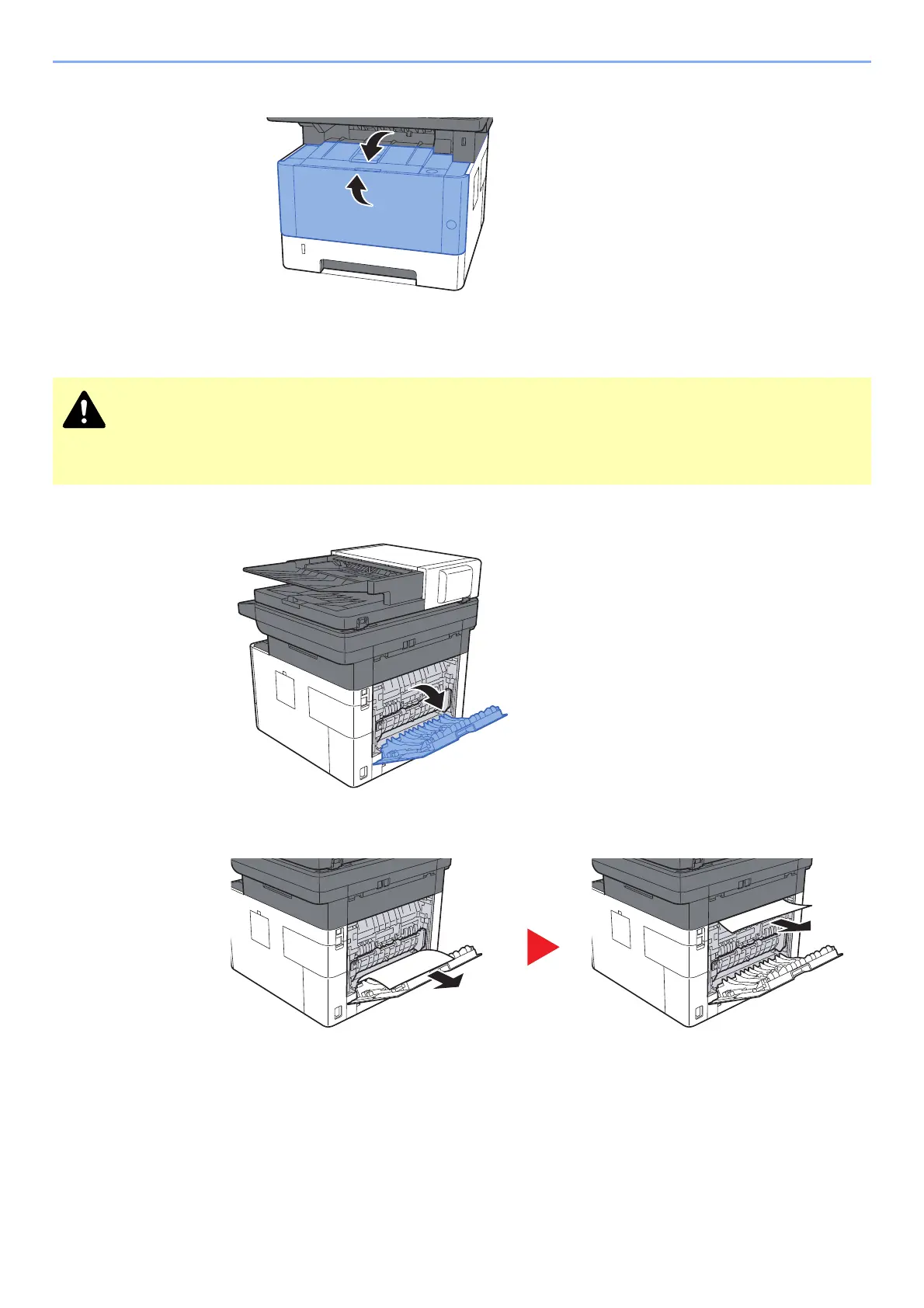

Close the front cover.

Remove any jammed paper in Rear Cover

Open Rear Cover.

Remove any jammed paper.

CAUTION

The fixing unit is extremely hot. Take sufficient care when working in this area, as there is a danger of getting

burned.
