Part Names

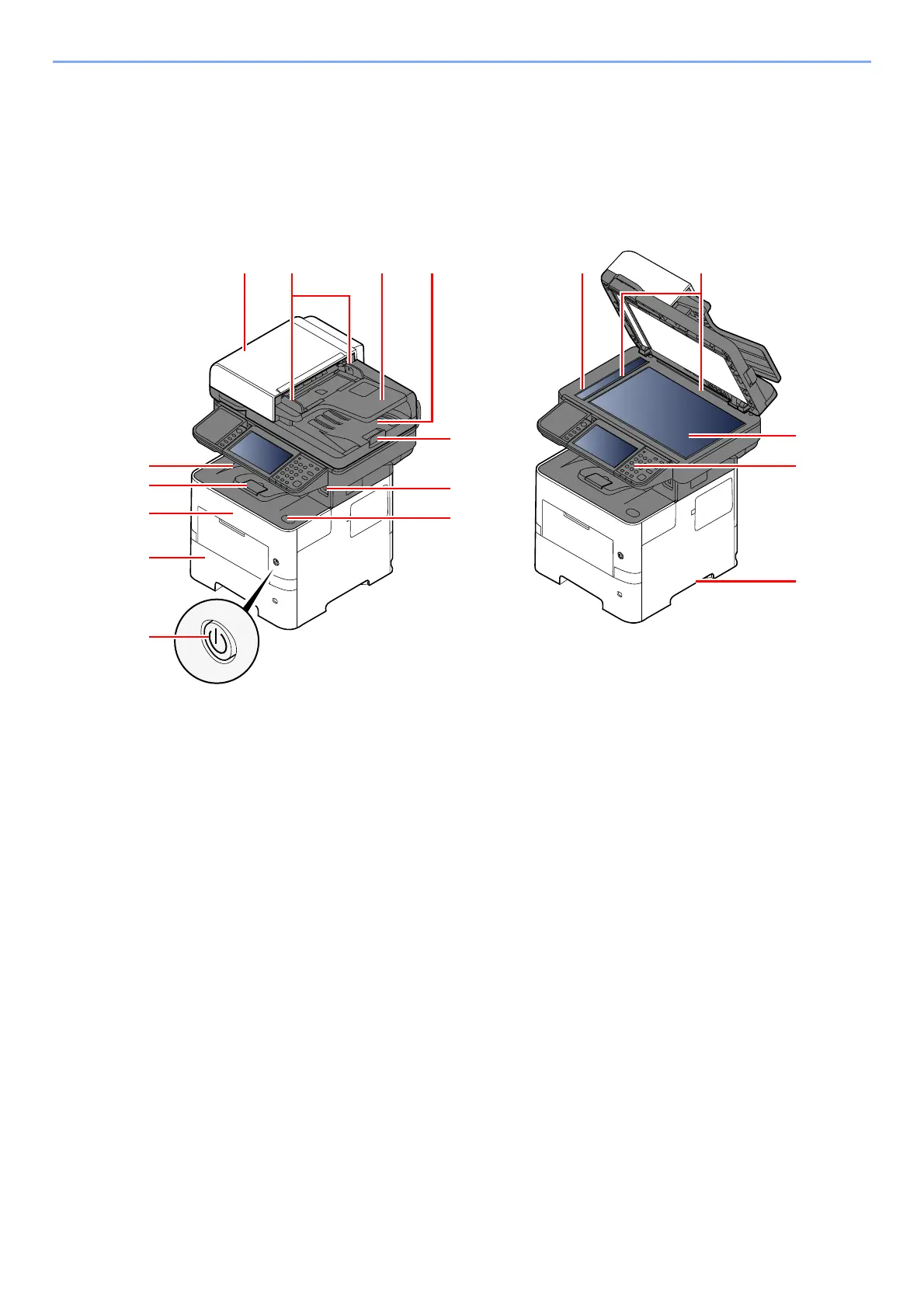

Machine Exterior
Model without the finisher
1 Document Processor
2 Original Width Guides
3 Original Table
4 Original Eject Table
5 Inner Tray
6 Paper Stopper
7 Front Cover
8 Cassette 1
9 Power Switch
10 Original Stopper
11 USB Memory Slot
12 Front Cover Open Button
13 Slit Glass
14 Original Size Indicator Plates
15 Platen
16 Operation Panel
17 Handles
1 2 3 4
10
11
13 14
15
16
7
12
5
9
8
17
6
