(7) Detaching and refitting the left lower cover
Procedure
1. Remove the left upper cover.
(See page 1-5-5)
2. Pull out the cassette.
3. Remove the rear left lower cover.
(See page 1-5-5)
4. Remove the screw.
5. Release the hook A.
6. Release two hooks B by sliding the left
lower cover upward and then remove
the left lower cover.

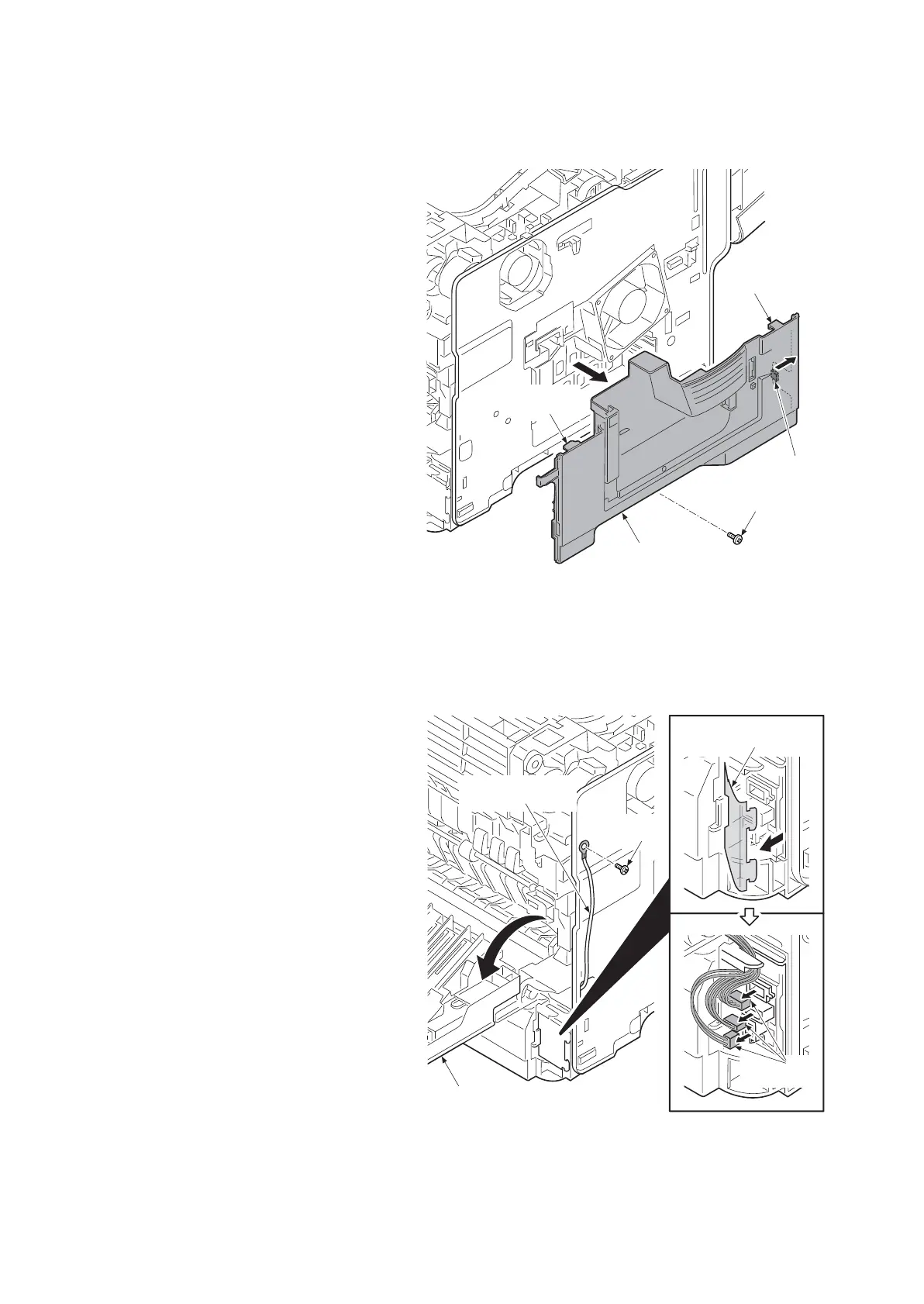

Figure 1-5-9
(8) Detaching and refitting the rear cover
Procedure
1. Remove the rear left lower cover.
(See page 1-5-5)
2. Open the rear cover.
[60/50/45 ppm model only]
3. Remove the screw and then the
grounding wire.
4. Open the connector cover and then
remove three connectors.
Figure 1-5-10
Screw
Hook B
Hook B
Left lower cover
Hook
Connector cover
Connectors
Rear cover
Screw
Grounding wire
