3S3
1-4-3

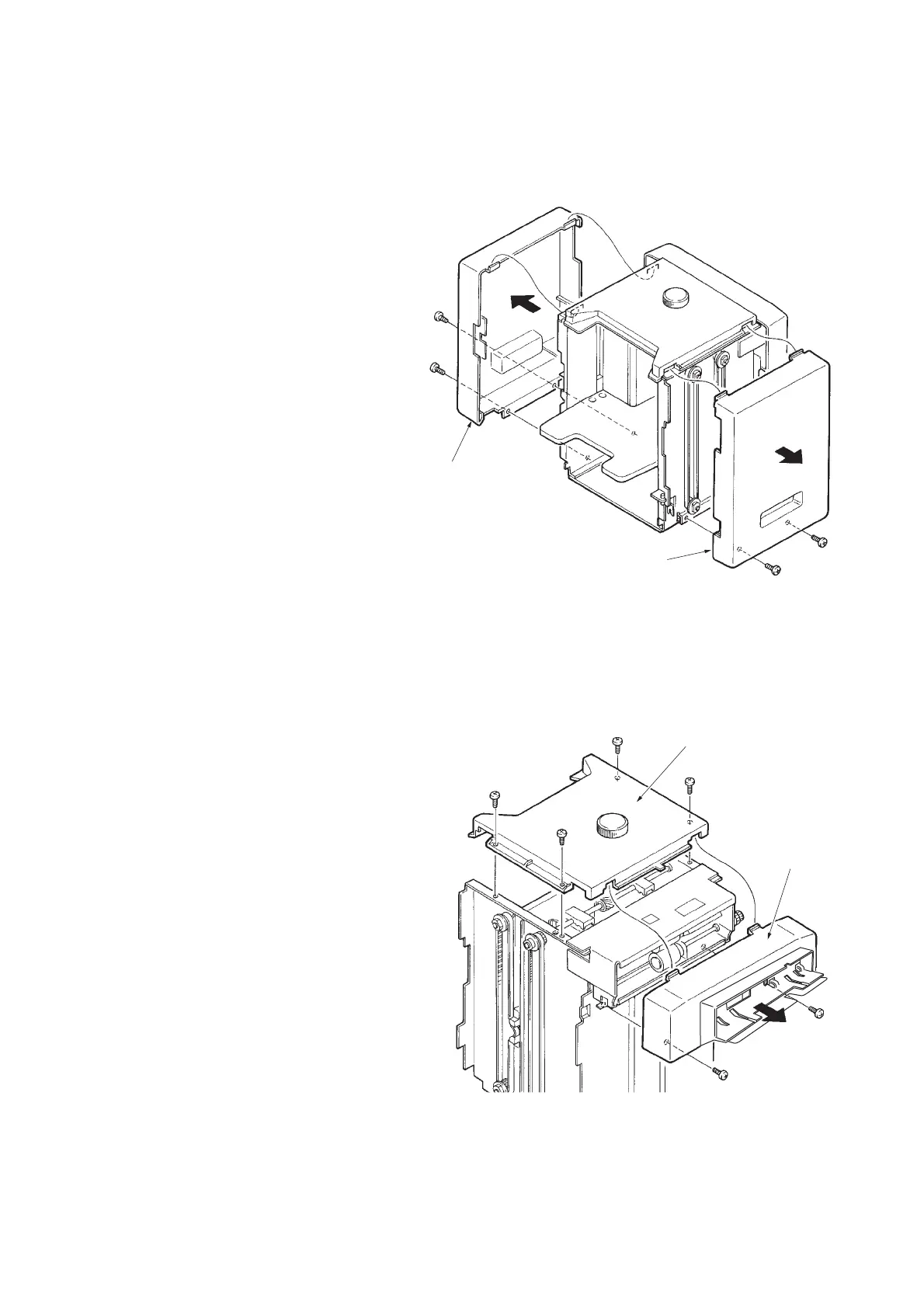

(3) Removing the side covers
Note: To gain access to any of the internal parts, the side covers must be removed first.
1. To remove the side cover, remove two
screws at the bottom side of the side cover.
2. Remove the other side cover using the
same manner.
Figure 1-4-3
(4) Removing the paper outlet and top cover
To remove the paper outlet or the top cover, follow the procedure below. We recommend that the paper outlet is also
removed when removing the top cover.
1. To remove the paper outlet, remove two
screws as follows.
2. To remove the top cover, remove four
screws as follows.
Note The paper adjuster knob may not be
removed before removing the top cover.
Figure 1-4-4
Top cover
Paper outlet
To Next Page
