2T6/2T7/2T8/2T9
1-5-24

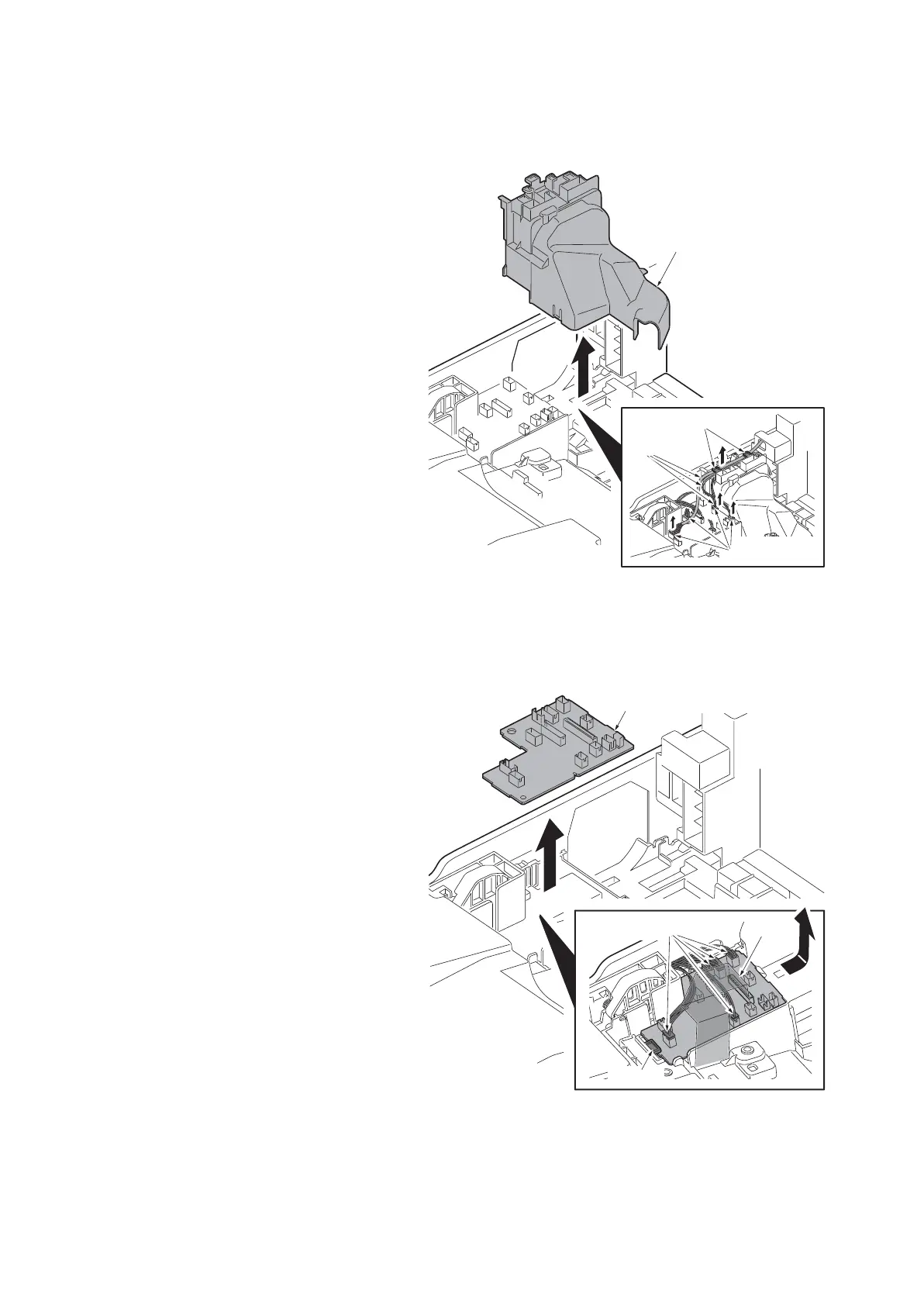

(3) Detaching and refitting the relay-L PWB
Procedure
1. Remove the top cover assembly.
(See page 1-5-3)
2. Pull the connectors out from relay-L
PWB and then release the wires from
hooks.
3. Remove the LSU fan motor assembly
upward.
Figure 1-5-37
4. Pull the connectors and FFC out and
then remove the relay-L PWB.
5. Check or replace the relay-L PWB and
refit all the removed parts.
Figure 1-5-38
Connectors
Hooks
Wires
LSU fan motor assembly
Connectors
Hook
FFC
Connect-L PWB
To Next Page
