2-1-5 Transfer/Separation section
The transfer and separation section consists mainly of the transfer roller and separation electrode.
A high voltage generated by the high voltage PWB (HVPWB) is applied to the transfer roller for transfer charg-
ing.
Paper after transfer is separated from the drum by applying separation charging that is output from the high
voltage PWB (HVPWB) to the separation electrode.

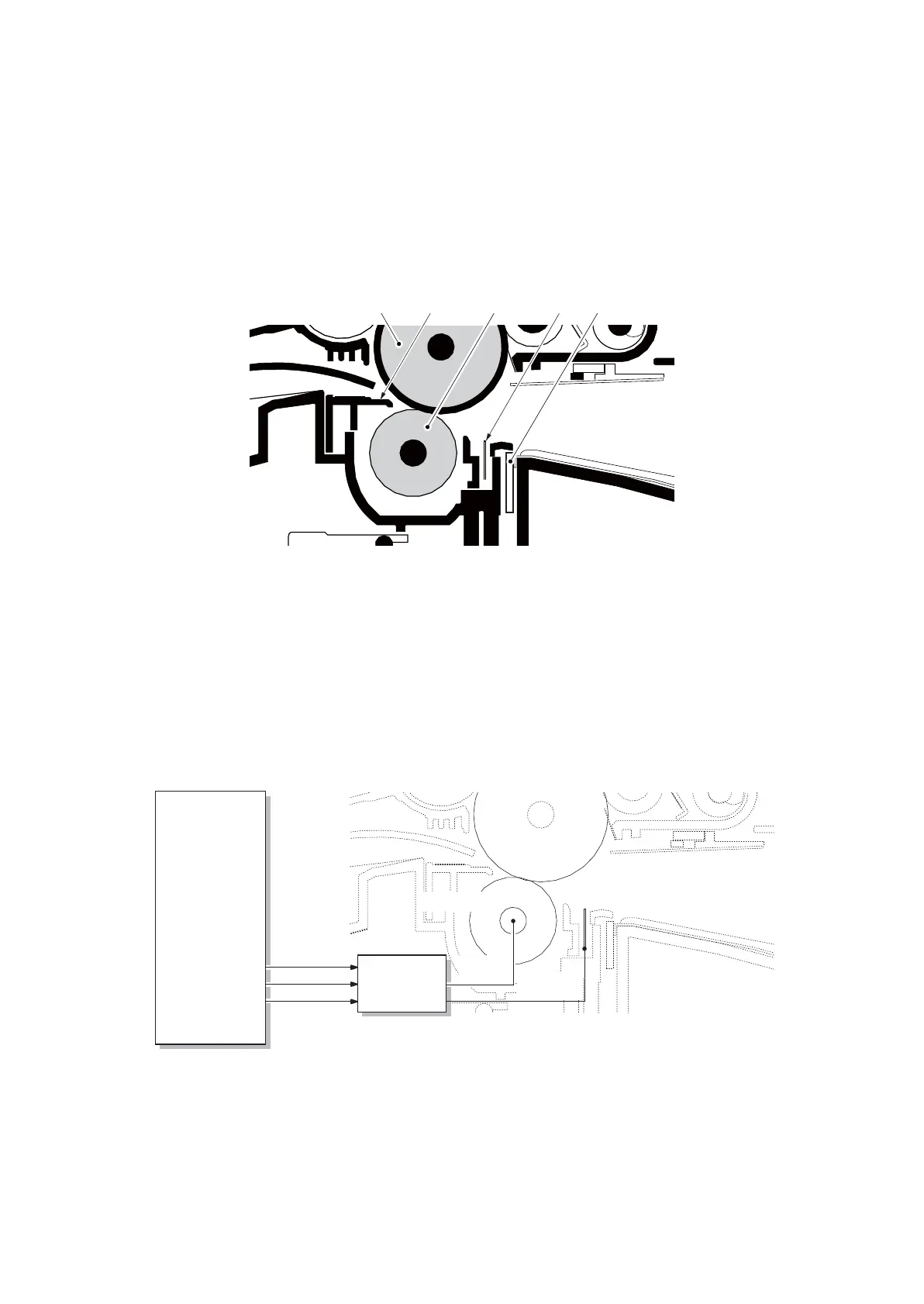

Figure 2-1-15 Transfer/Separation section
Figure 2-1-16 Transfer/Separation section block diagram
32
15
4
1. Transfer roller
2. Paper chute guide
3. Separation needle
4. Drum
5. Drum heater *1
SCNT
TRREM
TCNT
Transfer roller
Separation needle
Separation
bias
Transfer
bias
HVPWB
YC19-15
YC19-16
YC19-17
EPWB
