3S3

1-2-4

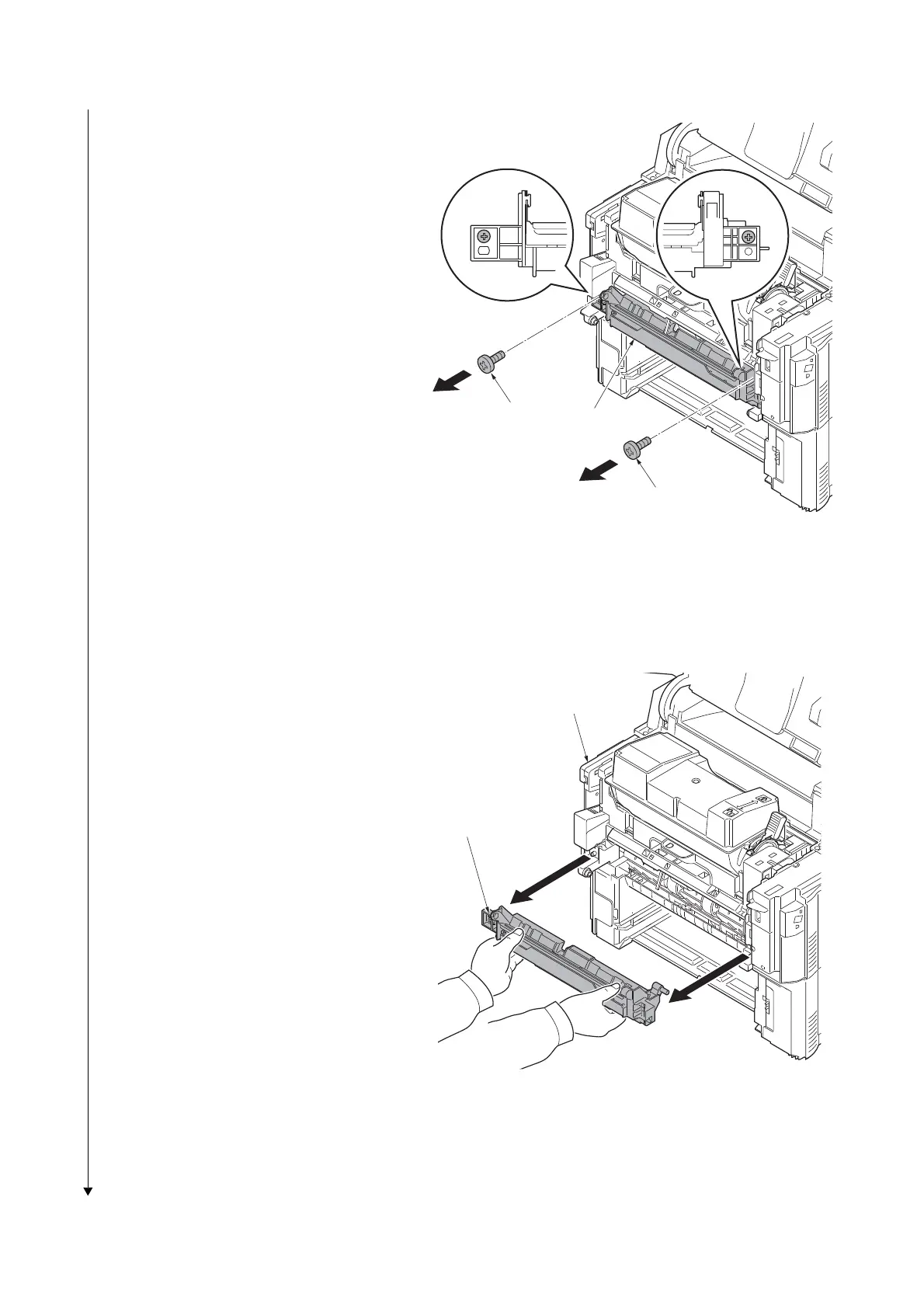

7. Remove two screws on the MP paper feed

unit.

Figure 1-2-3

8. Remove the MP paper feed unit from the

printer. Retain the MP paper feed unit for

future use.

Figure 1-2-4

MP paper feed unit

Screw

MP paper feed unit

Printer
