2PR
1-5-21
11. Remove six screws and then remove the
feed drive unit.
12. Remove four connectors from the engine
PWB.

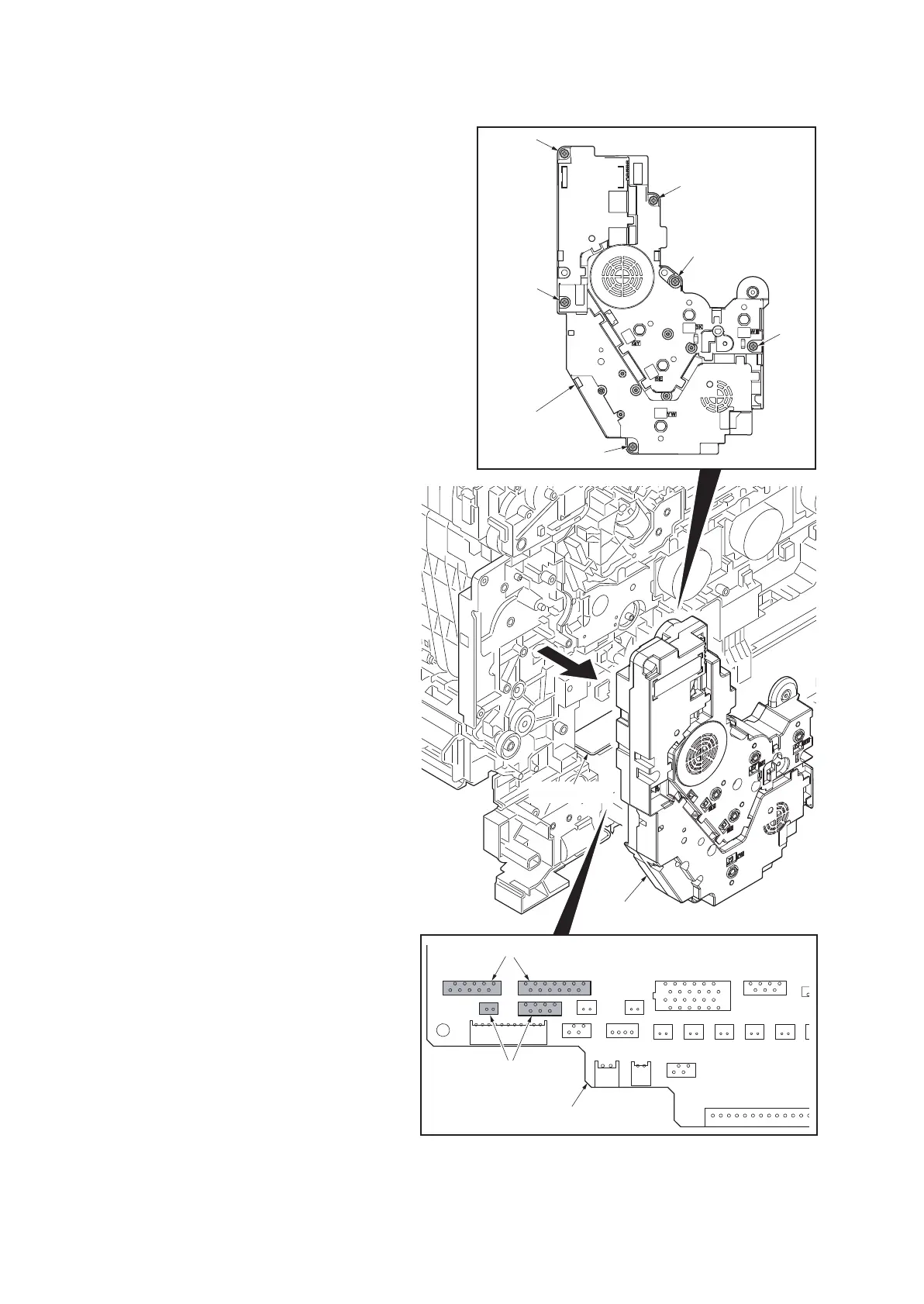

Figure 1-5-27
YC26
YC40
YC3
YC605
Engine PWB
Engine PWB
Connectors
Connectors
Feed drive unit
Feed drive unit
Screw
Screw
Screw
Screw
Screw
Screw
