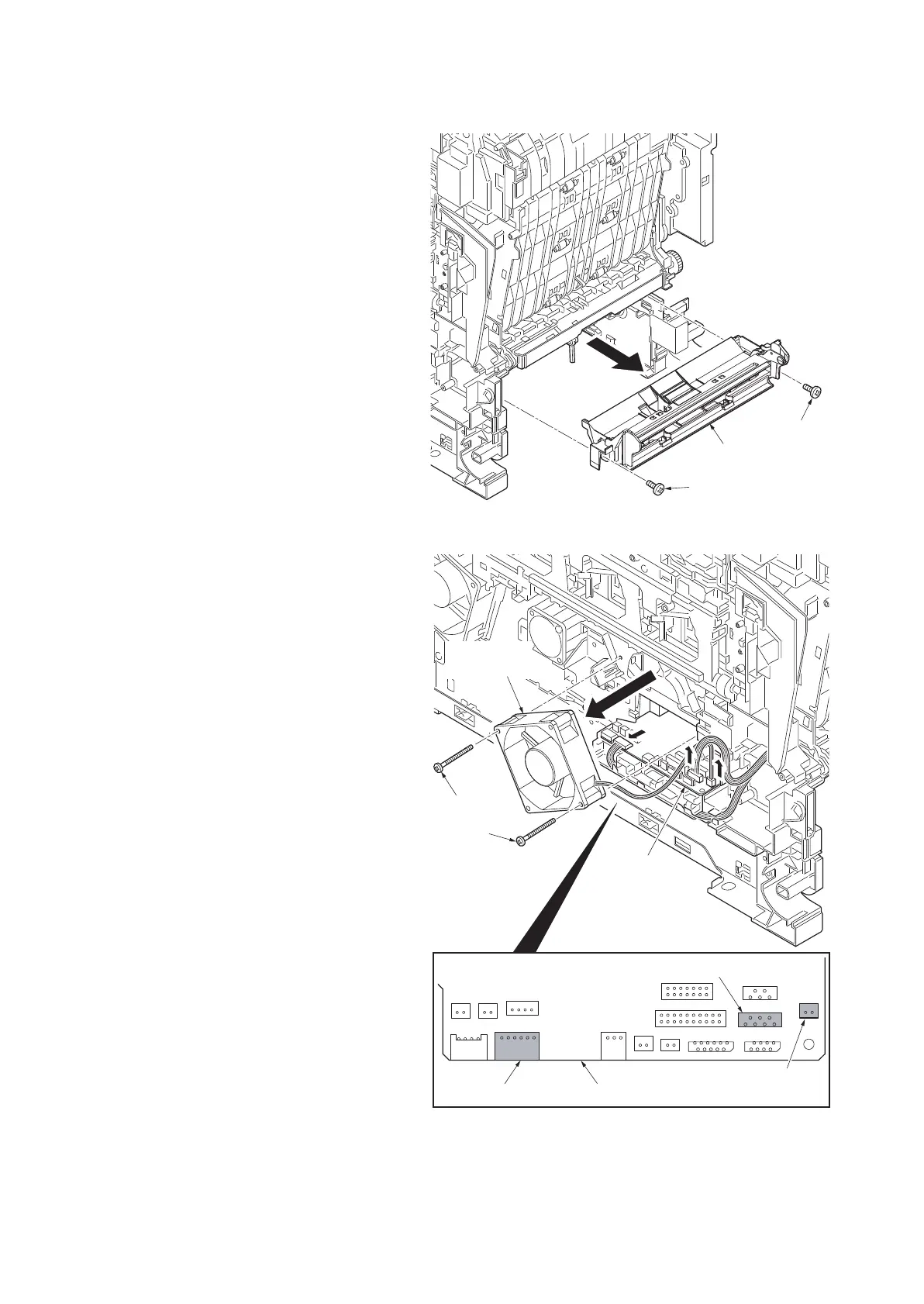

13. Remove two screws and then remove the
MP paper feed lower unit.
Figure 1-5-28
14. Remove two screws and then remove the
developing fan motor 1.
15. Remove three connectors from the engine
PWB.
Figure 1-5-29
Screw
Screw
MP paper feed lower unit
YC10
YC21
YC610
Screw
Screw
Developing
fan motor 1
Engine PWB
Engine PWB
Connector
Connector
(Developing fan motor 1)
Connector
