Kyocera ECOSYS P7035cdn - Page 116

2PR
1-5-30
6. Release the lock lever and then remove the
link lever.
7. Remove three connectors and three FFCs
from the engine PWB.

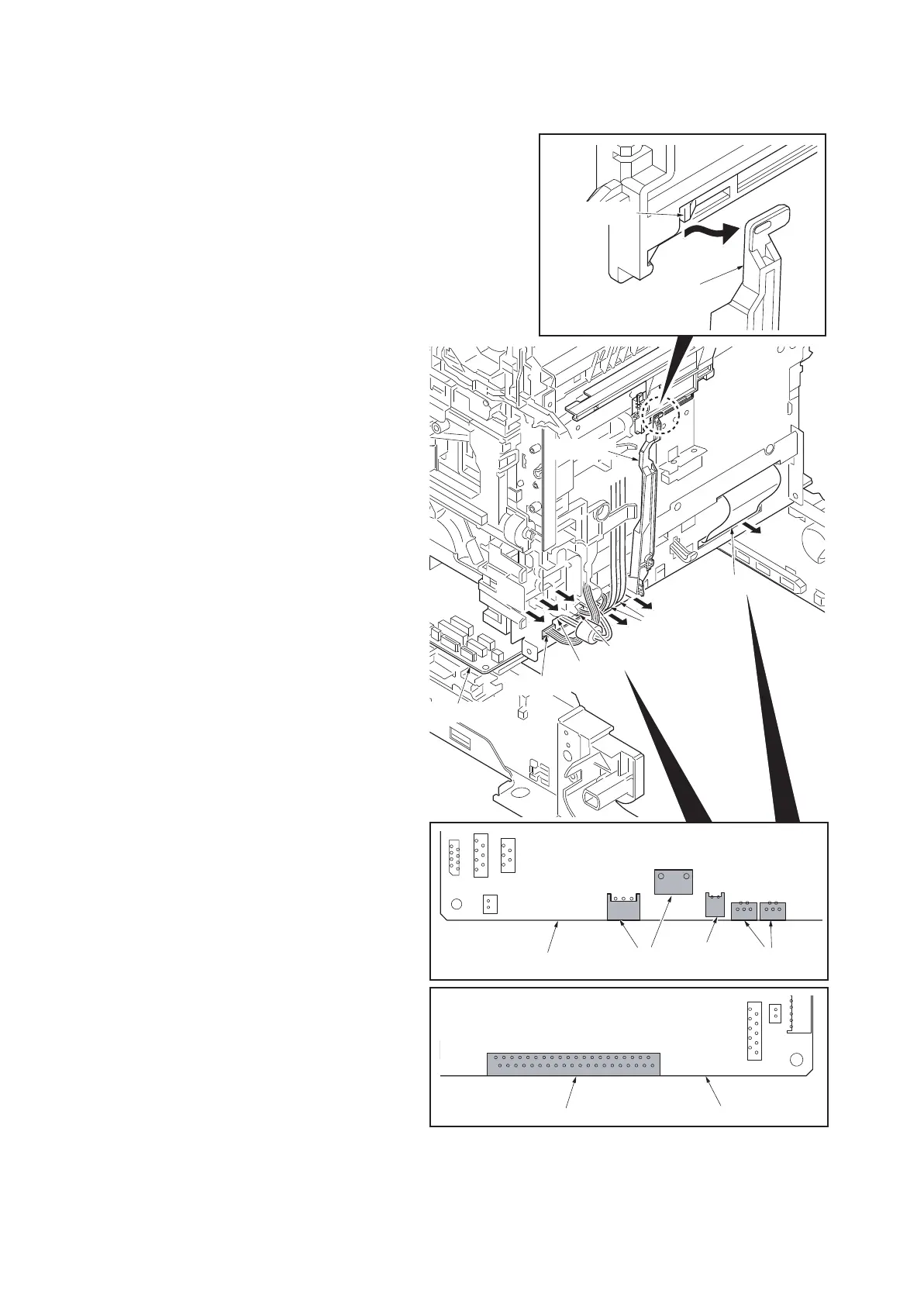

Figure 1-5-39
YC6YC5
YC617
YC13
YC14
YC600
FFC
Link lever
Link lever
FFC
Connector
Connector
Connector
Connector
Connector
(ID solenoid)
Engine PWB
Engine PWB
Engine PWB
FFCs
FFCs
Lock lever
