Kyocera ECOSYS P7035cdn Service Manual

2PR
2-1-12
2-1-5 Transfer/separation section
The transfer/separation section consists of the intermediate transfer unit and the transfer roller unit. The intermediate
transfer unit consists of the transfer cleaning unit, the transfer belt, and the four primary transfer rollers for respective color
drums, and forms a full-color toner image by superimposing and transferring single-color toner images formed on each
drum onto the transfer belt. Also with the left and right ID sensors mounted on the machine frame, the toner density on the
transfer belt is measured. The transfer cleaning unit collects toner remaining on the transfer belt after secondary transfer
and forwards it as waste toner to the waste toner box. The transfer roller unit consists of the secondary transfer roller
mounted to the paper conveying unit and the separation brush. To the secondary transfer roller, DC bias is applied from
the high voltage PWB. The toner image formed on the transfer belt is transferred to the paper by the potential difference
and the paper is separated by curvature separation and separation needle (DC bias).

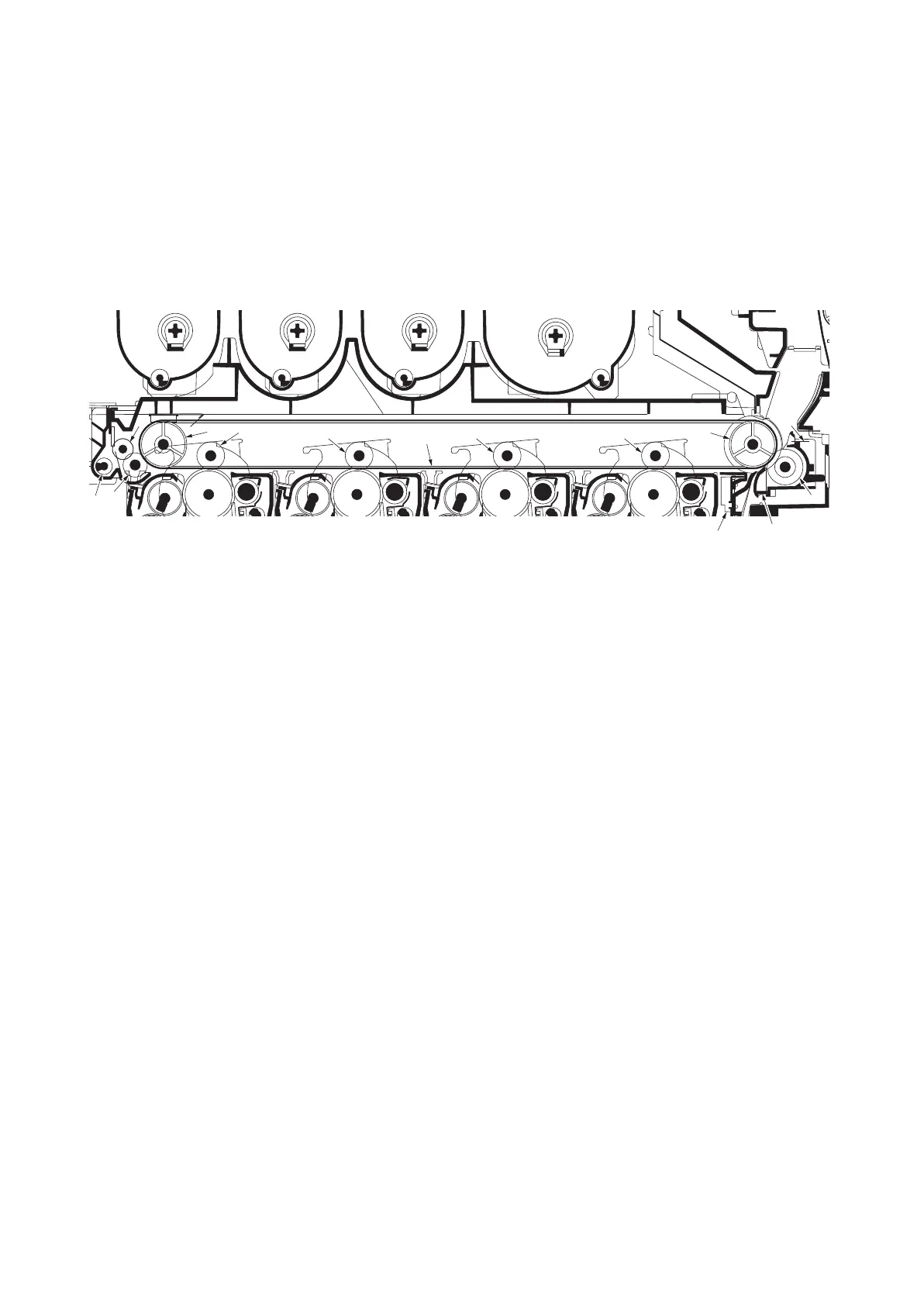

Figure 2-1-15 Transfer/separation section
1
8
10
9
3
2
11
12
13
14
4
7
5 6
(1) Tension roller
(2) Drive roller
(3) Primary transfer roller M
(4) Primary transfer roller C
(5) Primary transfer roller Y
(6) Primary transfer roller K
(7) Transfer belt
(8) Cleaning fur brush
(9) Cleaning roller
(10) Cleaning screw
(11) Secondary transfer roller
(12) Paper chute
(13) Separation needle
(14) Left ID sensor/Right ID sensor

Kyocera ECOSYS P7035cdn Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	8 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	150000 pages per month
Number of print cartridges	4
Page description languages	Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7, PostScript 3
Paper input type	Cassette, Paper tray
Total input capacity	650 sheets
Total output capacity	- sheets
Maximum input capacity	2650 sheets
Total number of input trays	2
Maximum number of input trays	6
Multi-Purpose tray input capacity	150 sheets
Custom media width	70 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	138 - 356 mm
Paper tray media types	Plain paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Wi-Fi	No
Mobile printing technologies	-
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Processor model	465S
Processor family	PowerPC
Maximum internal memory	1536 MB
Sound power level (standby)	33.7 dB
Sound pressure level (printing)	53.2 dB
Display	LCD
Certification	TÜV/GS, CE
Product color	Black, White
Display number of lines	5 lines
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0 W
Power consumption (standby)	86 W
Power consumption (printing)	622 W
Power consumption (PowerSave)	4 W
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Sustainability certificates	Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	518 mm
Width	345 mm
Height	512 mm
