Kyocera ECOSYS P7035cdn Service Manual

2PR
2-2-5
(3) Motors

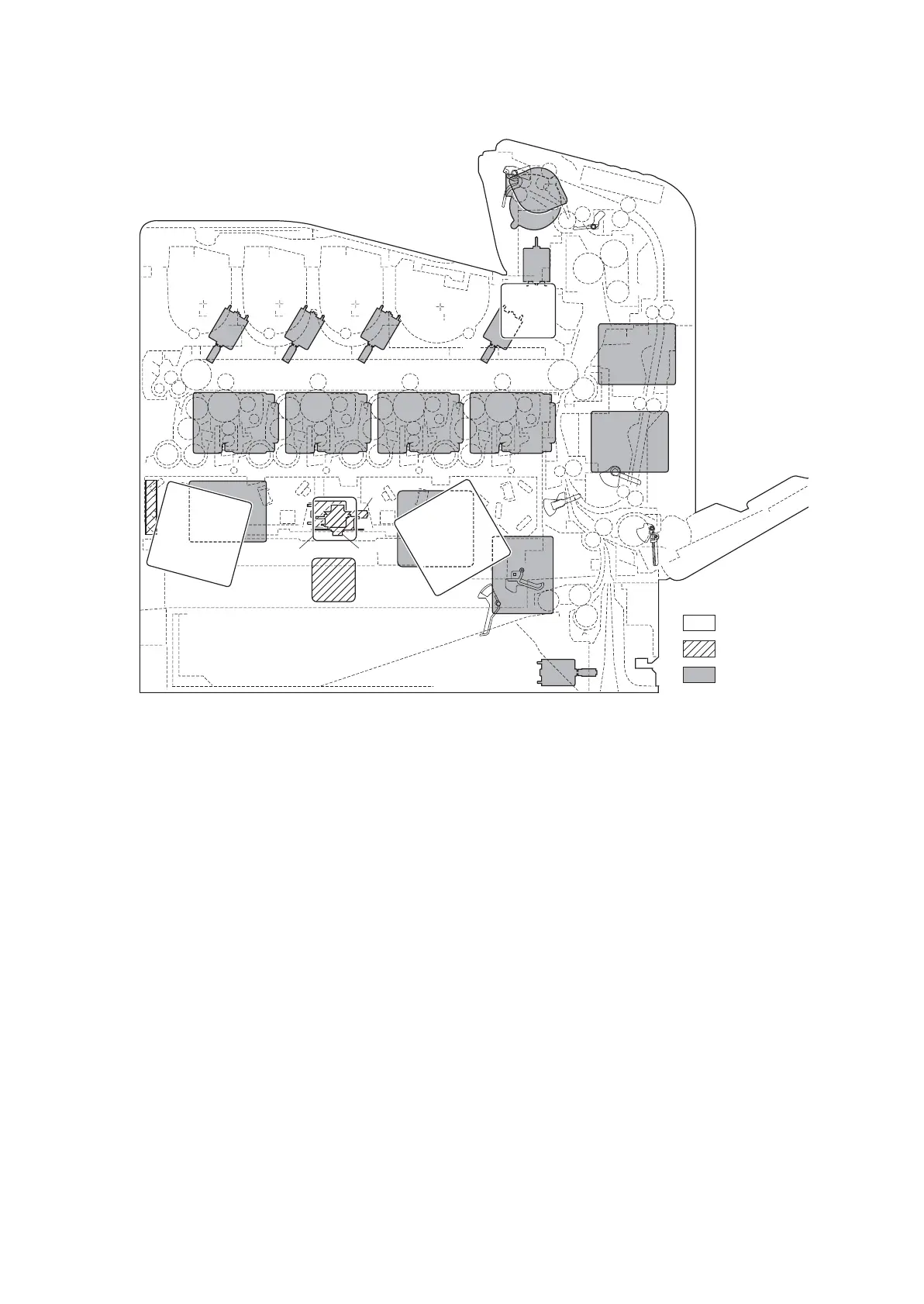

Figure 2-2-3 Motors
1. Paper feed motor ......................................... Drives the paper feed section.
2. Lift motor ...................................................... Operates the bottom plate in the cassette.
3. Polygon motor.............................................. Drives the polygon mirror.
4. Drum motor M .............................................. Drives drum unit M.
5. Drum motor C .............................................. Drives drum unit C.
6. Drum motor Y............................................... Drives drum unit Y.
7. Drum motor K............................................... Drives drum unit K.
8. Developing motor MCY................................ Drives developing unit M, C and Y.
9. Developing motor K ..................................... Drives developing unit K and intermediate transfer unit.
10. Toner motor M.............................................. Replenishes the developing unit M with toner.
11. Toner motor C .............................................. Replenishes the developing unit C with toner.
12. Toner motor Y .............................................. Replenishes the developing unit Y with toner.
13. Toner motor K .............................................. Replenishes the developing unit K with toner.
14. Duplex motor................................................ Drives duplex section.
15. Fuser motor.................................................. Drives fuser section and paper exit section.
16. LSU cleaning motor ..................................... Drives LSU dust shield glass cleaning system.
17. LSU fan motor.............................................. Cools the LSU.
18. Fuser pressure change motor...................... Switch drive of the fuser (press roller) pressure.
19. Fuser fan motor 1......................................... Cools the duplex solenoid and fuser section.
20. Fuser fan motor 2......................................... Disperses steam.
21. Ozone fan motor .......................................... Cools the image formation section. The exhaust gas of ozone.
22. Developing fan motor 1................................ Cools the image formation section.
23. Developing fan motor 2................................ Cools the image formation section.
24. Left side fan motor ....................................... Cools the image formation section.
25. Power source fan motor............................... Cools the power source PWB.
2
3
22
21
25
24
23
18
4567
14
16
17
8
15
19
20
10
11
12
13
9
1
Machine inside
Machine left
Machine right

Kyocera ECOSYS P7035cdn Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	8 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	150000 pages per month
Number of print cartridges	4
Page description languages	Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7, PostScript 3
Paper input type	Cassette, Paper tray
Total input capacity	650 sheets
Total output capacity	- sheets
Maximum input capacity	2650 sheets
Total number of input trays	2
Maximum number of input trays	6
Multi-Purpose tray input capacity	150 sheets
Custom media width	70 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	138 - 356 mm
Paper tray media types	Plain paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Wi-Fi	No
Mobile printing technologies	-
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Processor model	465S
Processor family	PowerPC
Maximum internal memory	1536 MB
Sound power level (standby)	33.7 dB
Sound pressure level (printing)	53.2 dB
Display	LCD
Certification	TÜV/GS, CE
Product color	Black, White
Display number of lines	5 lines
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0 W
Power consumption (standby)	86 W
Power consumption (printing)	622 W
Power consumption (PowerSave)	4 W
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Sustainability certificates	Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	518 mm
Width	345 mm
Height	512 mm
