Kyocera ECOSYS P7035cdn Service Manual

2PR
2-2-6
(4) Other electrical components

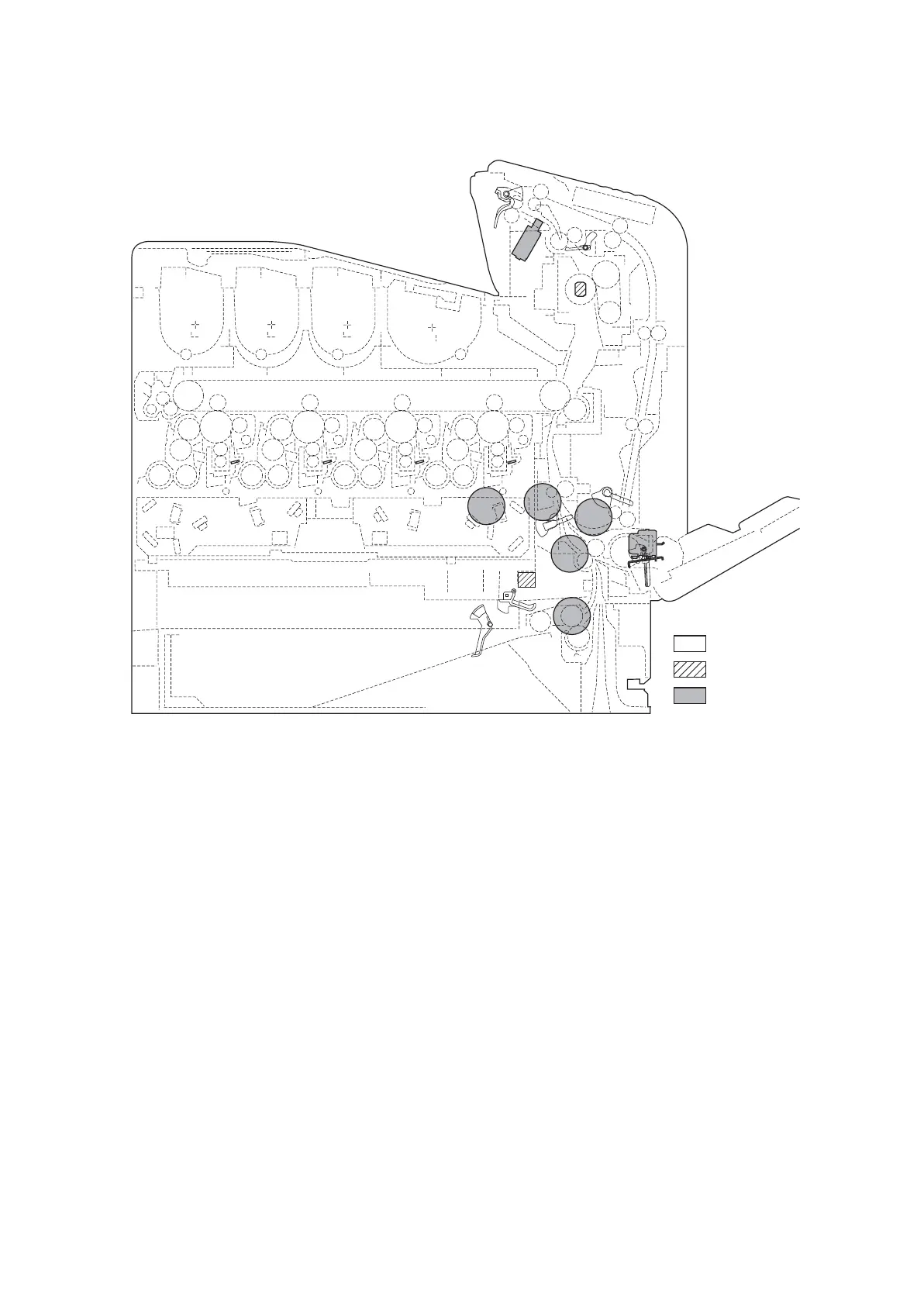

Figure 2-2-4 Other electrical components
1. Paper feed clutch ......................................... Controls the paper cassette paper feed.
2. Registration clutch ....................................... Controls the secondary paper feed.
3. Intermediate clutch....................................... Controls the paper conveying at the conveying section.
4. Duplex clutch ............................................... Controls the paper conveying at the duplex section.
5. Developing clutch K ..................................... Detaches the drive transmission of developing units other than develop-
ing unit K at the time of B/W printing.
6. MP paper feed solenoid ............................... Controls the MPF bottom plate of the MP tray.
7. Duplex solenoid ........................................... Operates the change guide.
8. ID solenoid ................................................... Operates the ID sensors cleaning system.
9. Eraser lamp M.............................................. Eliminates the residual electrostatic charge on the drum. (magenta)
10. Eraser lamp C .............................................. Eliminates the residual electrostatic charge on the drum. (cyan)
11. Eraser lamp Y .............................................. Eliminates the residual electrostatic charge on the drum. (yellow)
12. Eraser lamp K .............................................. Eliminates the residual electrostatic charge on the drum. (black)
13. Fuser heater lamp1/2................................... Heats the heat roller.
1
3
8
4
2
5
91011
12
13
6
7
Machine inside
Machine left
Machine right

Kyocera ECOSYS P7035cdn Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	8 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	150000 pages per month
Number of print cartridges	4
Page description languages	Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7, PostScript 3
Paper input type	Cassette, Paper tray
Total input capacity	650 sheets
Total output capacity	- sheets
Maximum input capacity	2650 sheets
Total number of input trays	2
Maximum number of input trays	6
Multi-Purpose tray input capacity	150 sheets
Custom media width	70 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	138 - 356 mm
Paper tray media types	Plain paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Wi-Fi	No
Mobile printing technologies	-
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Processor model	465S
Processor family	PowerPC
Maximum internal memory	1536 MB
Sound power level (standby)	33.7 dB
Sound pressure level (printing)	53.2 dB
Display	LCD
Certification	TÜV/GS, CE
Product color	Black, White
Display number of lines	5 lines
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0 W
Power consumption (standby)	86 W
Power consumption (printing)	622 W
Power consumption (PowerSave)	4 W
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Sustainability certificates	Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	518 mm
Width	345 mm
Height	512 mm
