Kyocera ECOSYS P7035cdn - Page 96

2PR
1-5-10

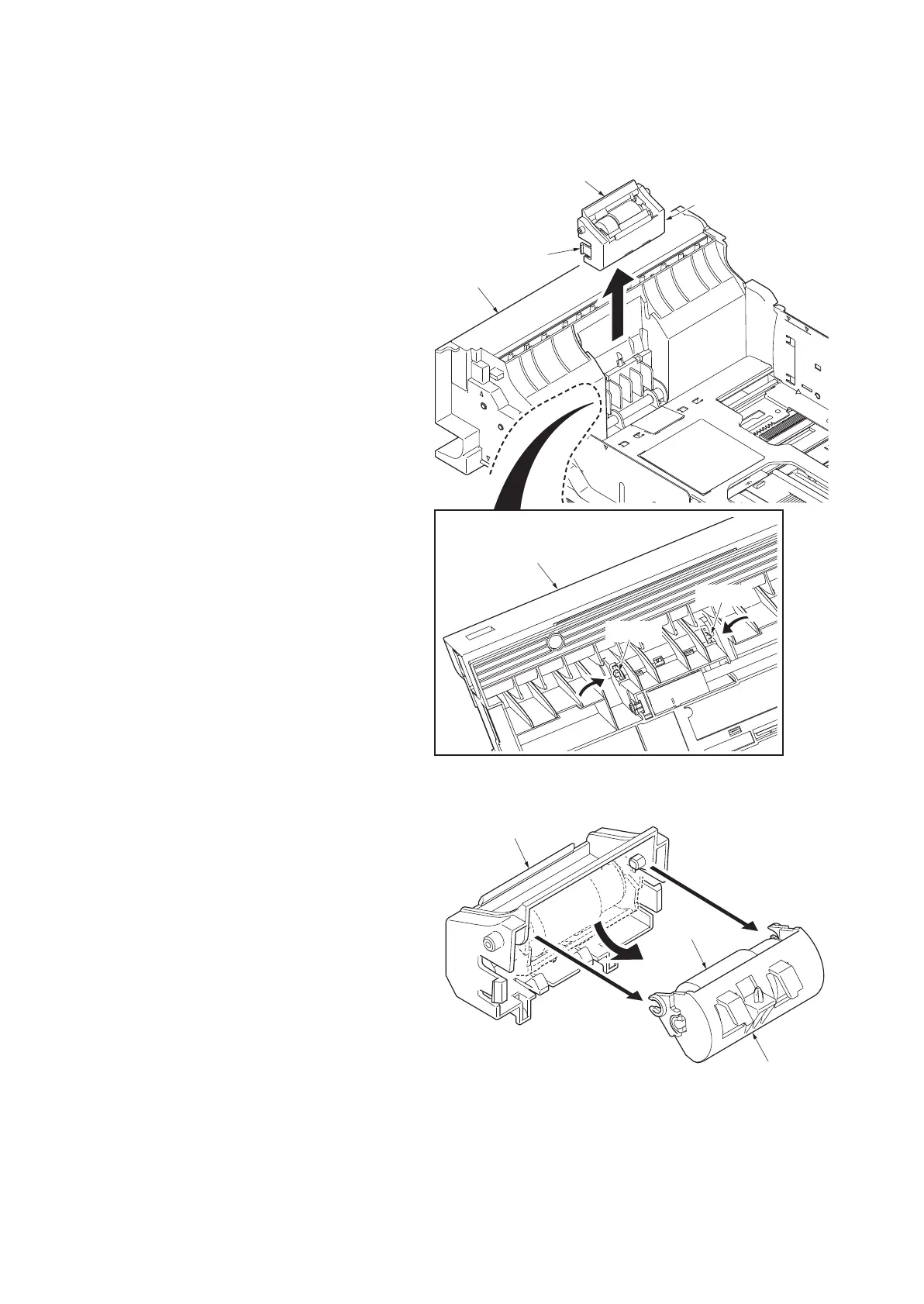

(2) Detaching and refitting the retard roller
Procedure
1. Remove the cassette (See page 1-5-8).
2. Push the bottom plate down until it locks.
3. Release two hooks and then remove the
retard guide (retard roller assembly).
Figure 1-5-11
4. Remove the retard roller assembly.
5. Check or replace the retard roller assembly
and refit all the removed parts.
Figure 1-5-12
Retard guide
Cassette
Cassette
Hook
Hook
Hook
Hook
Retard roller assembly
Retard roller
Retard guide
