(3) Detaching and refitting the MP paper feed roller
Procedure
1. Open the front cover.
2. While releasing the hook and the slide the
MPF shaft.
3. Remove the MP paper feed roller.
4. Check or replace the MP paper feed roller
and refit all the removed parts.

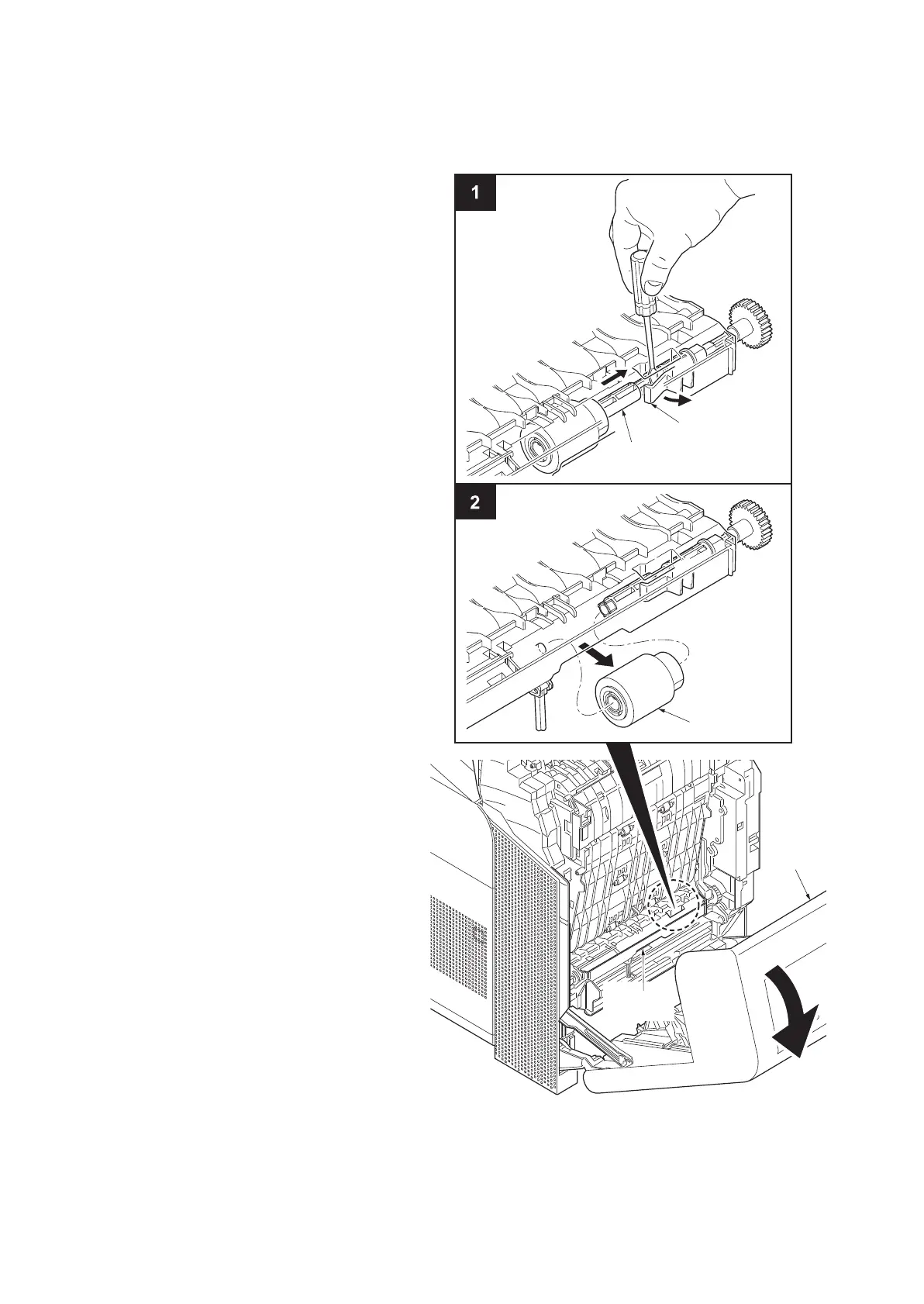

Figure 1-5-13
Front cove
r
Hook
MP paper
feed roller
MPF shaft
MP paper
feed roller
