2PR
1-5-12
1-5-4 Developing section
(1) Detaching and refitting the developing unit
Procedure
1. Remove the intermediate transfer unit (See
page 1-5-16).
2. Remove the drum unit (M,C,Y and K) (See
page 1-5-14).
3. Pinch the lever of developing unit to release
the lock.
4. Hold the grips and then remove the develop-
ing unit (M,C,Y and K).

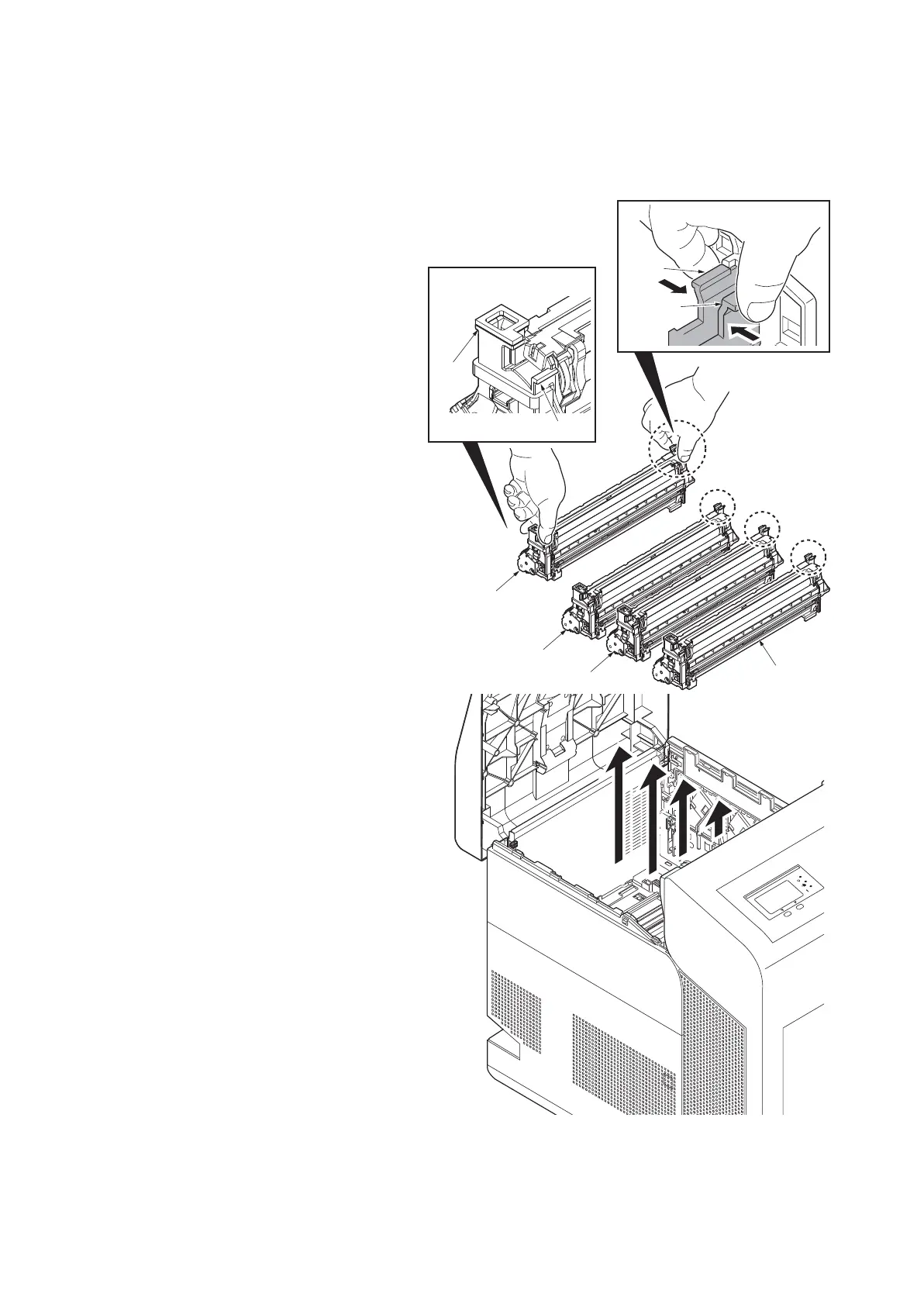

Figure 1-5-14
Lever
Grip
Grip
Lever
K
Developing unit M
Y
C
To Next Page
