1-5-5 Drum section
(1) Detaching and refitting the drum unit
Procedure
1. Remove the intermediate transfer unit (See
page 1-5-16).
2. Hold the grips and then remove the drum
unit (M,C,Y and K).
3. Check or replace the drum unit and refit all
the removed parts.

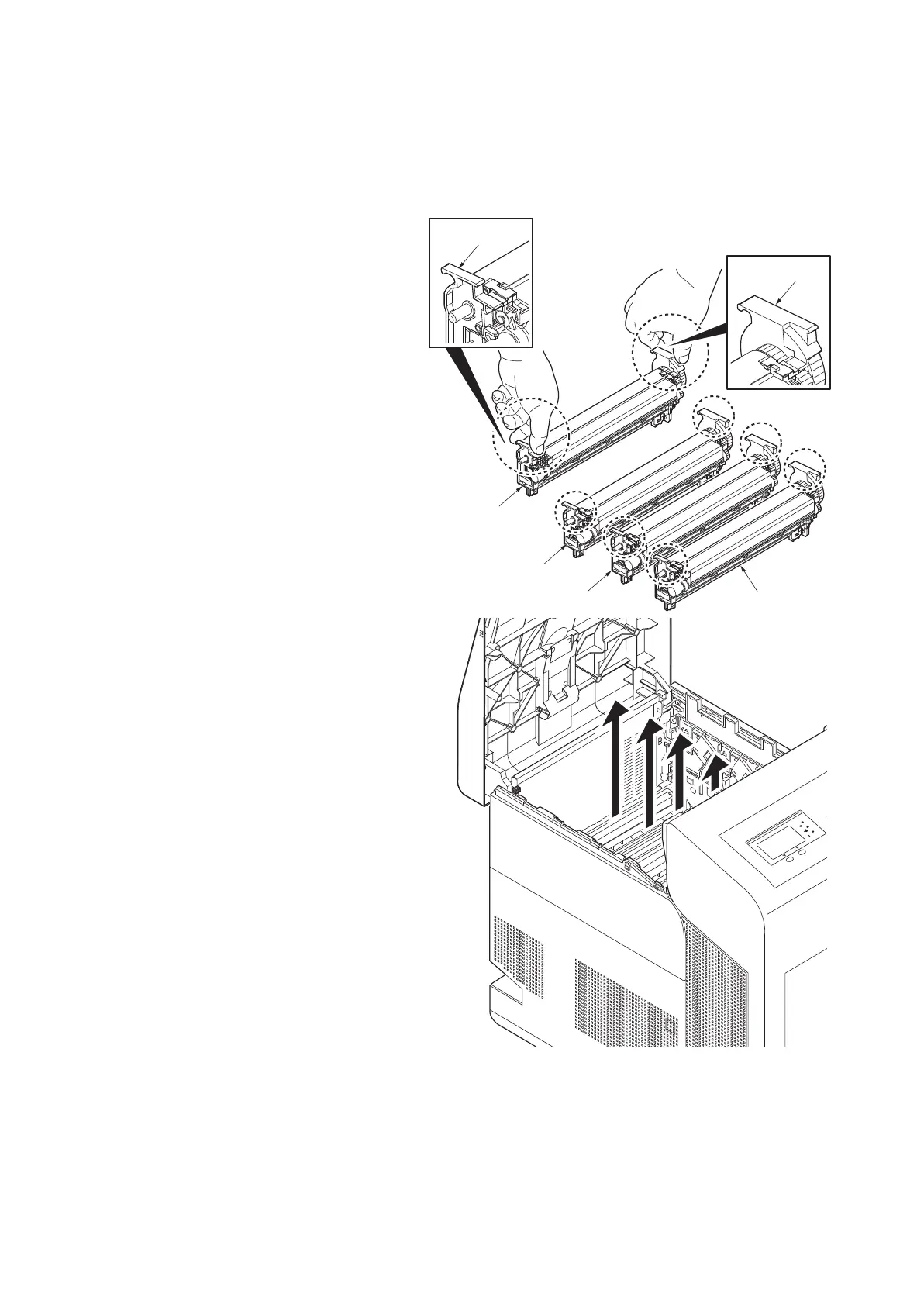

Figure 1-5-16
K
Drum unit M
Grip
Grip
Y
C
