(2) Detaching and refitting the main charger unit
Procedure
1. Open the left cover.
2. Remove the screw and then remove the
main charger unit (M,C,Y and K).
3. Check or replace the main charger unit and
refit all the removed parts.

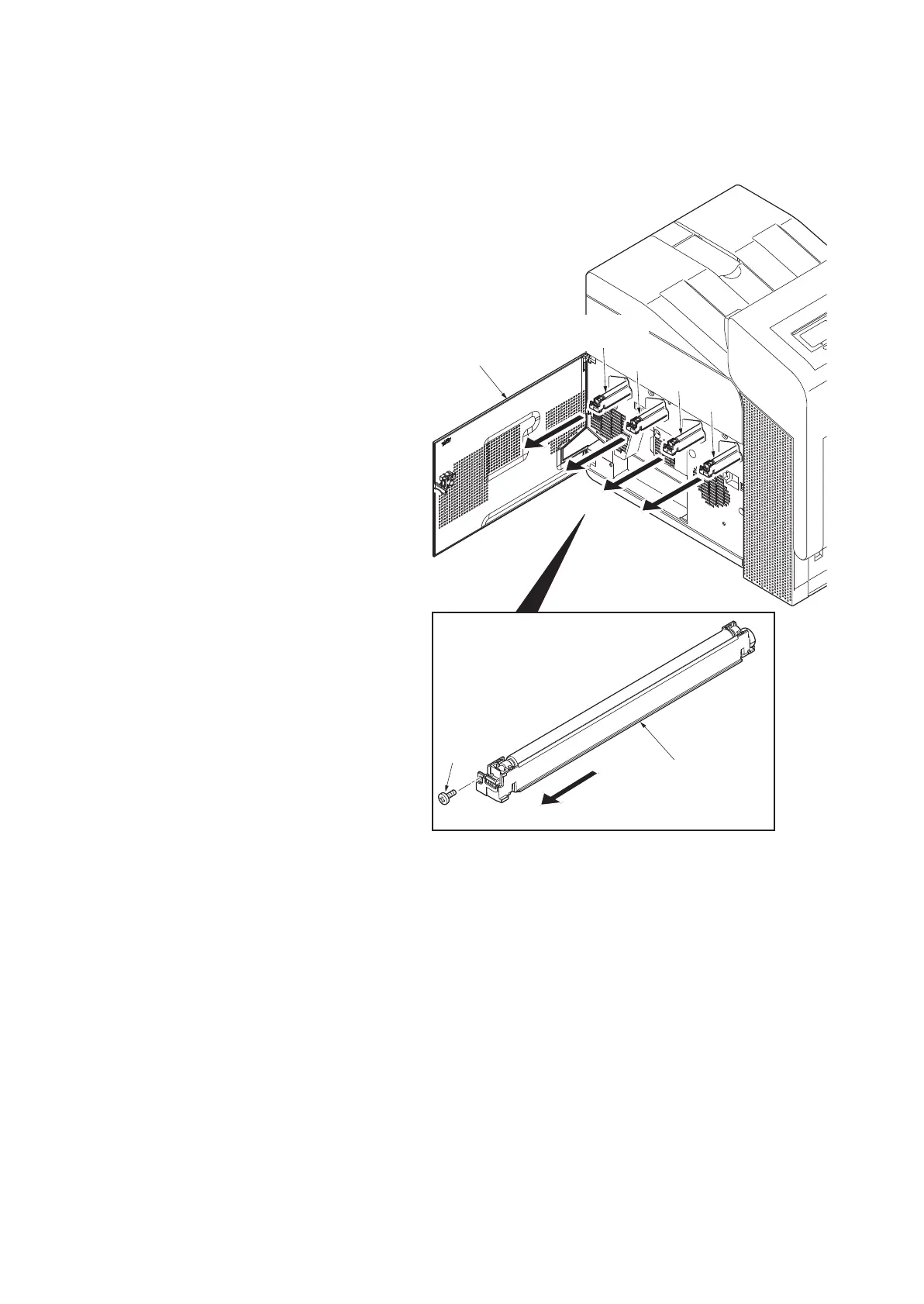

Figure 1-5-17
Main charger unit
C
Y
K
Screw
Main charger
unit M
Left cover
