1-5-6 Transfer/separation section
(1) Detaching and refitting the intermediate transfer unit
Procedure
1. Open the top cover.
2. Remove the all toner containers (M,C,Y and
K).

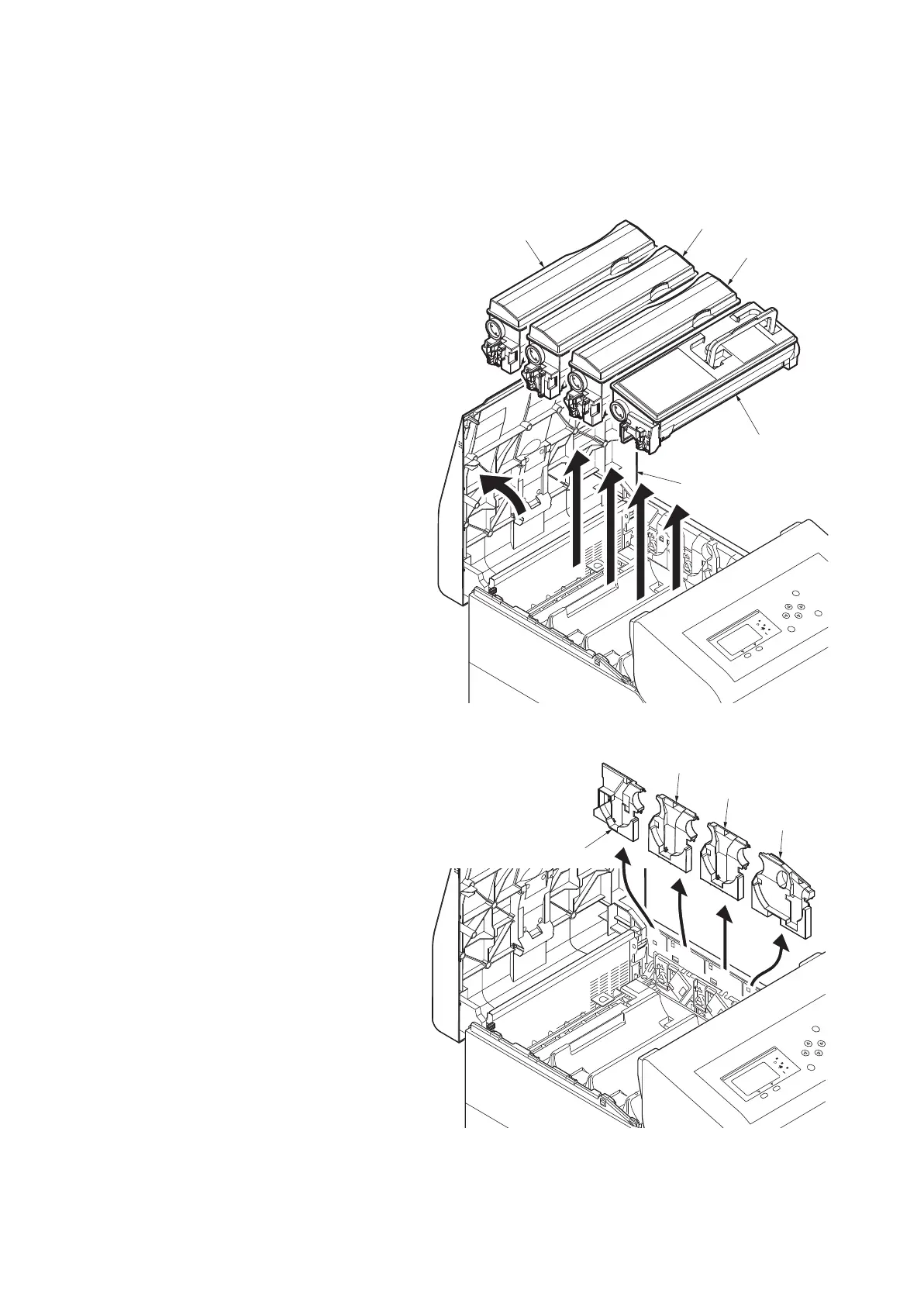

Figure 1-5-18
3. Remove the all container guides (M,C,Y and
K).
Figure 1-5-19
Top cover
K
Y
C
Toner container M
K
Y
C
Container guide M
