4. Remove two screws.
5. Open the RFID holder.

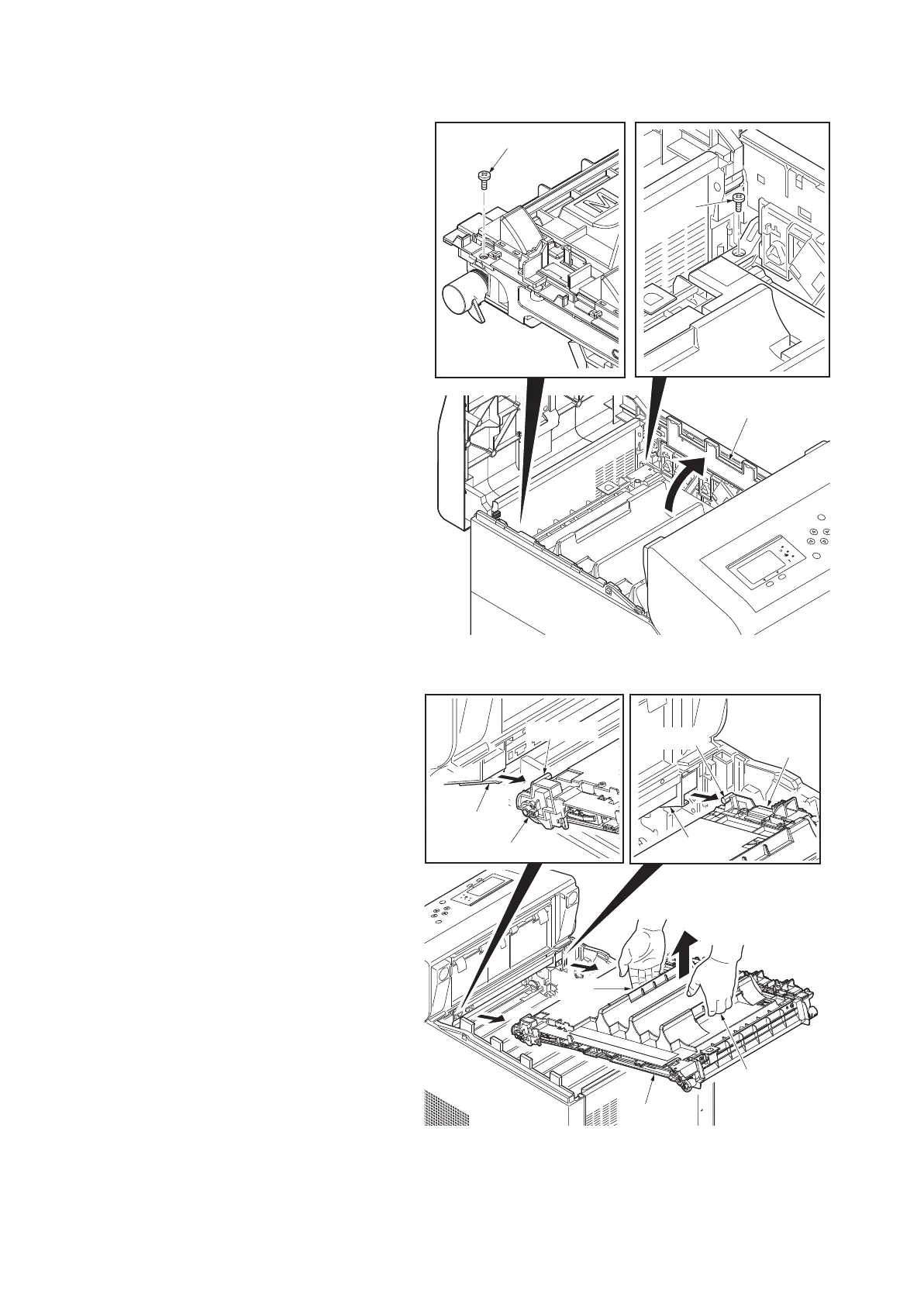

Figure 1-5-20
6. Hold the grips and then remove the interme-
diate transfer unit.
7. Check or replace the intermediate transfer
unit and refit all the removed parts.
Figure 1-5-21
RFID holder
Screw
Screw
Guide
Guide
Projection
Intermediate transfer unit
Intermediate
transfer unit
Intermediate
transfer unit
Projection
Grip
Grip
