(2) Detaching and refitting the transfer roller unit
Procedure
1. Open the front cover.
2. Open the duplex unit B.
3. Release two hooks and then remove the
transfer roller unit.
4. Check or replace the transfer roller unit and
refit all the removed parts.

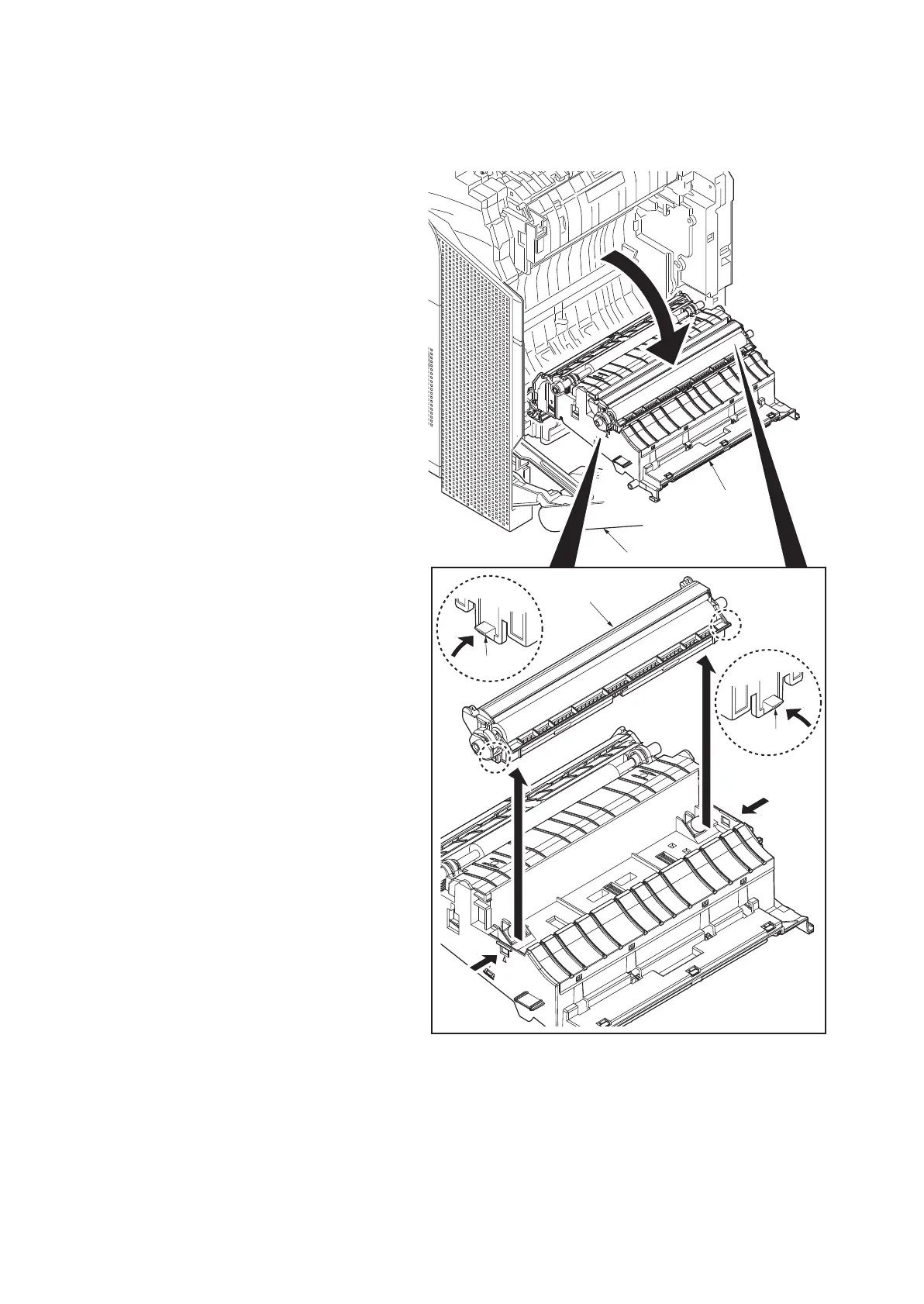

Figure 1-5-22
Transfer roller unit
Front cover
Duplex unit B
Hook
Hook
