(3) Detaching and refitting the duplex unit B
Procedure
1. Remove the outer covers (See page 1-5-3).
2. Remove the power source PWB (See page
1-5-25).
3. Open the front cover.
4. Remove the screw and then remove the
front cover right stopper.

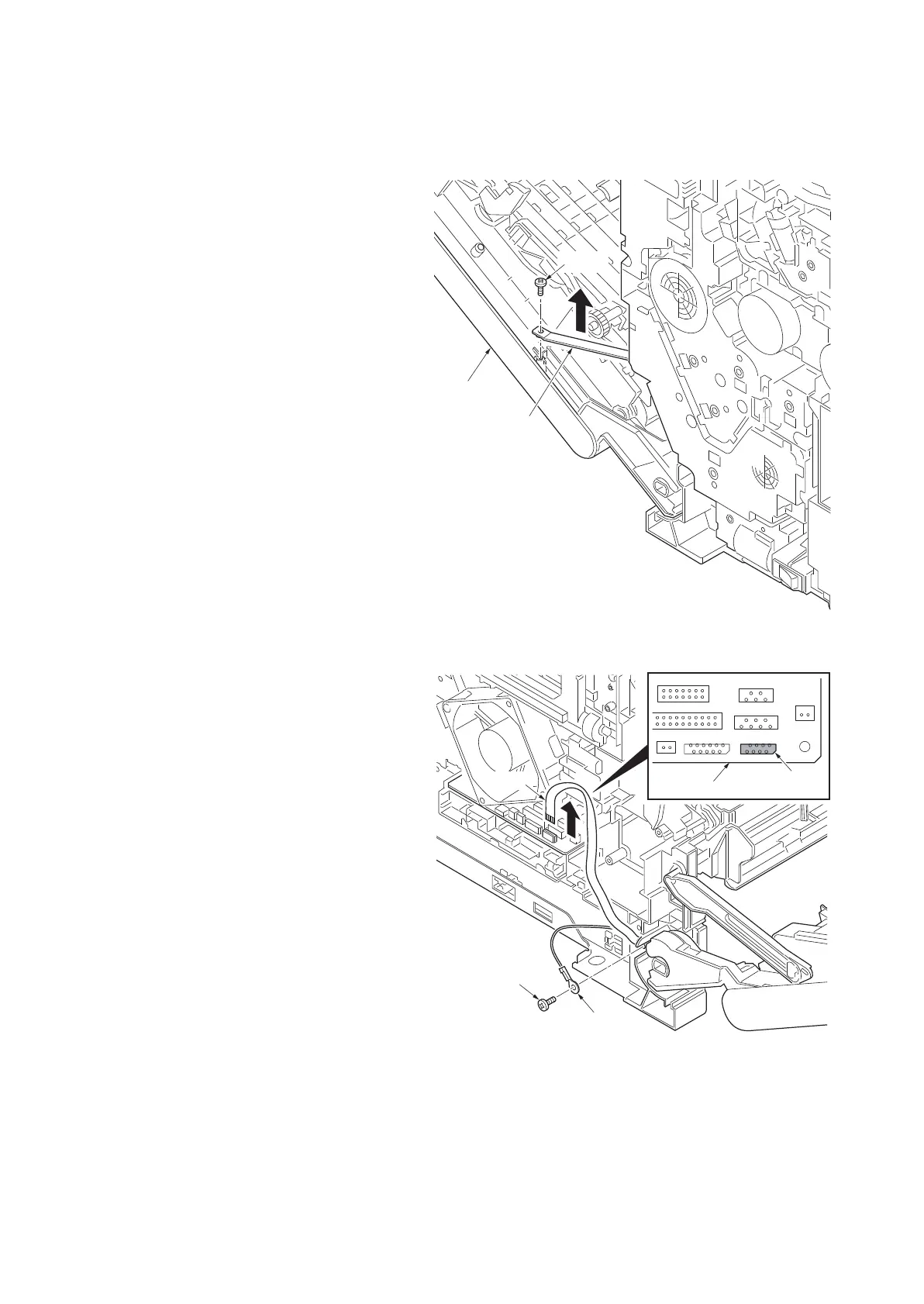

Figure 1-5-23
5. Remove the FFC from the engine PWB.
6. Remove the screw and then remove two
grounding terminals.
Figure 1-5-24
Screw
Front cover
right stopper
Front cover
YC601
Screw
Grounding terminal
FFC
FFC
Engine PWB
