(2) Direction of installing the left cooling fan motor, right cooling fan motor and power source fan motor
When detaching or refitting a fan motor, be careful of the airflow direction (intake or exhaust).

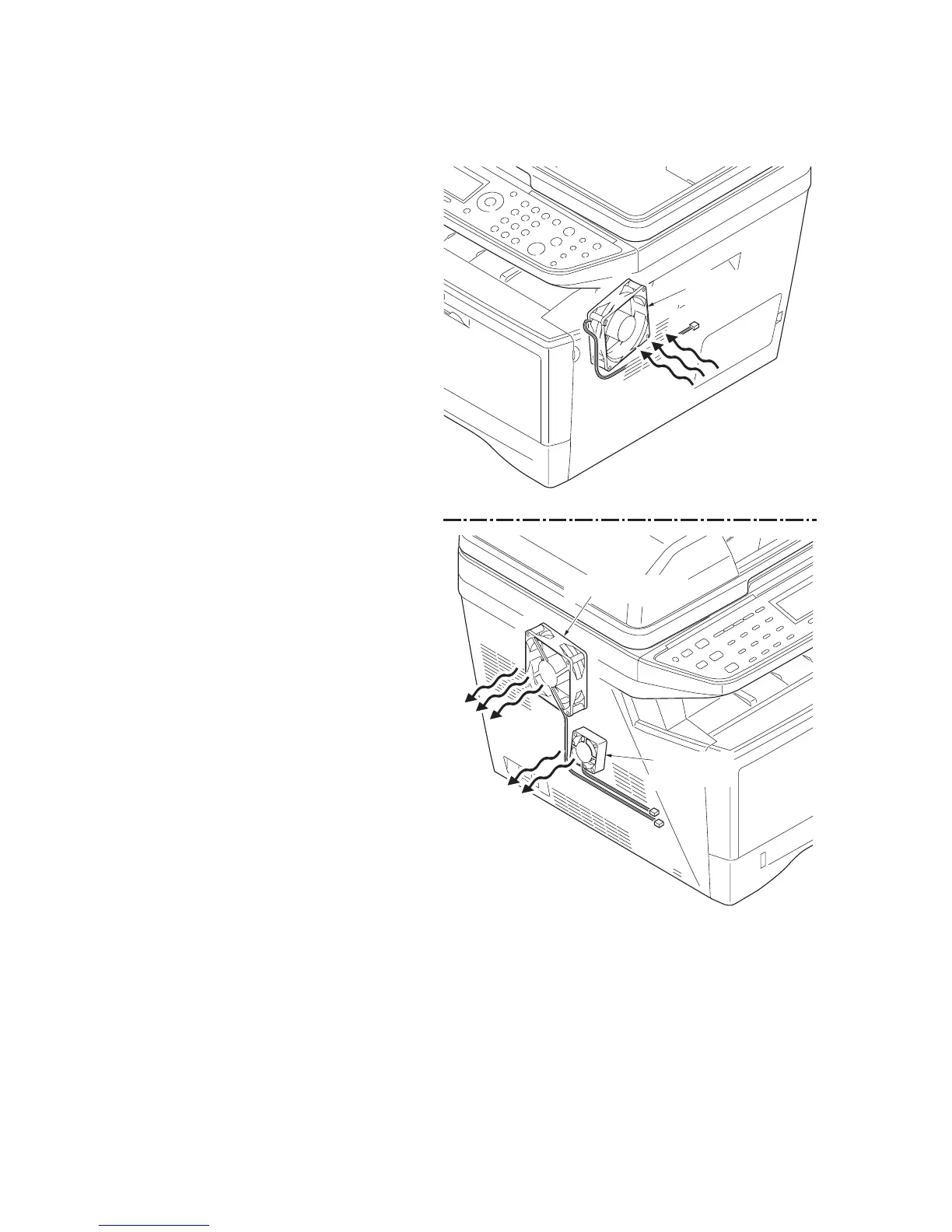

Figure 1-5-79
Power source
fan motor
Right cooling
fan motor
Exhaust
Exhaust
Intake
Left cooling fan motor
