Kyocera FS-1130MFP

2MH/2MJ/2MK/2ML
1-5-45
13. Remove the spring.
14. Remove the cassette pin.

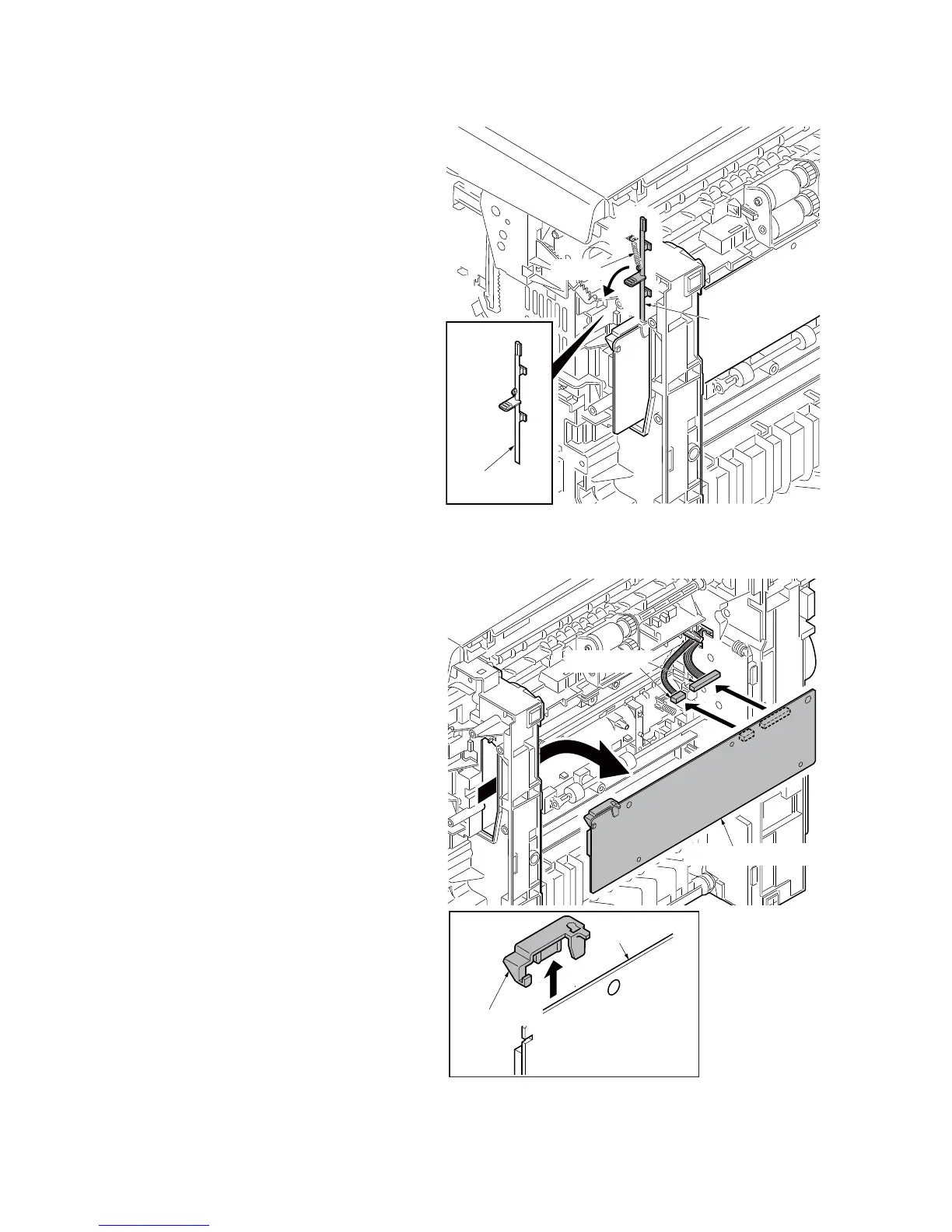

Figure 1-5-67
15. Remove two connectors and then
remove the high voltage PWB.
16. Remove the cassette pin holder from
the high voltage PWB.
Figure 1-5-68
Spring
Cassette pin
Cassette pin
Cassette pin
holder
High voltage PWB
High voltage
PWB
Connectors
