Kyocera FS-1350DN Service Manual

2H4
2-3-2

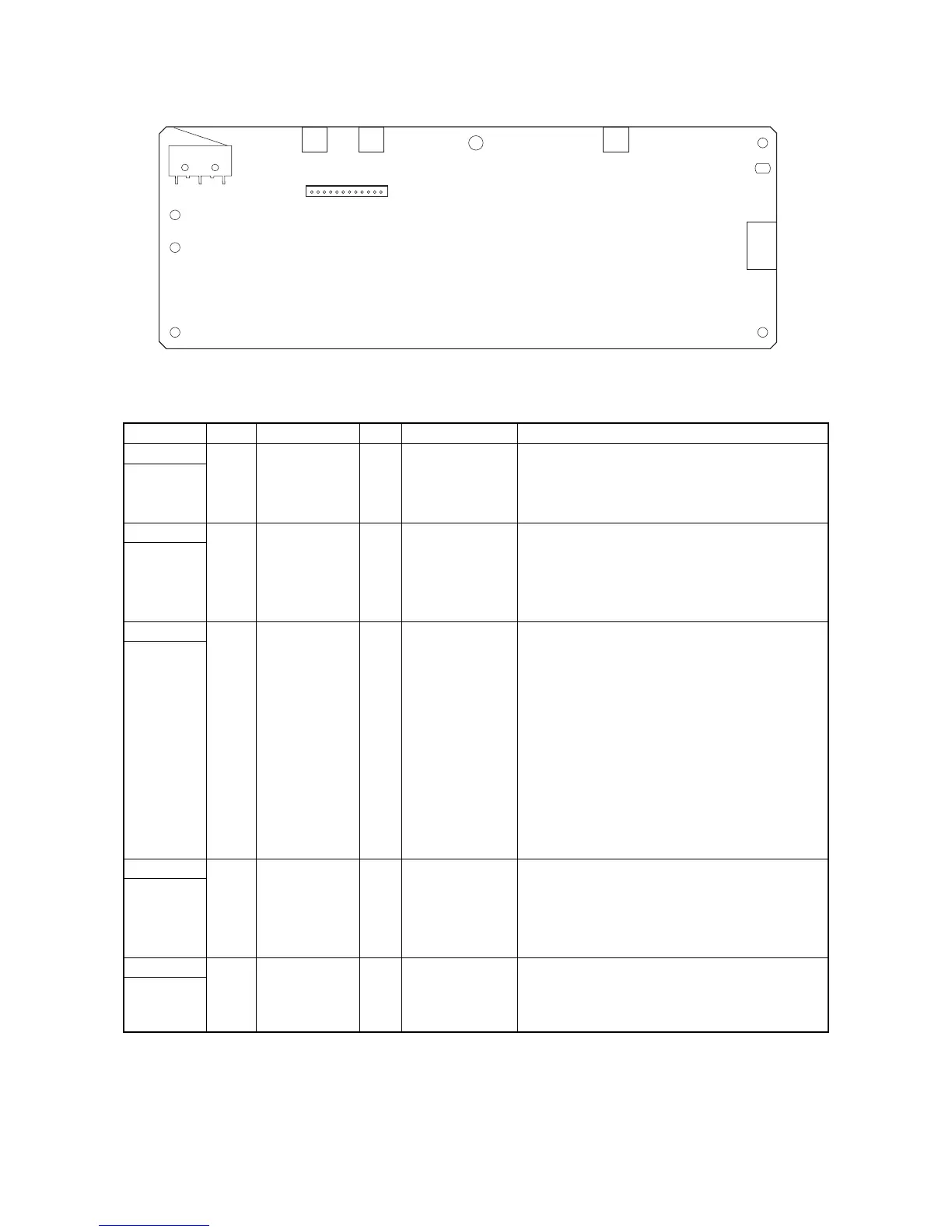

Figure 2-3-2 Power source PWB silk-screen diagram
Connector Pin Signal I/O Voltage Description
YC101 1 LIVE I 120 V AC AC power input
Connected
to the AC
inlet
220 - 240 V AC
2 NEUTRAL I 120 V AC AC power input
220 - 240 V AC
YC102 1 HEATER COM O 120 V AC Fuser heater lamp output
Connected
to the fuser
heater lamp
220 - 240 V AC
2 N.C. - - Not used
3 HEATER LIVE O 120 V AC Fuser heater lamp output
220 - 240 V AC
YC103 1 +24V1 O 24 V DC 24 V DC power source
Connected
to the high
voltage
PWB
2 SGND - - Ground
3 FAN I 0/24 V DC Left cooling fan motor: On/Off
4 THERM O Analog Fuser thermistor detection voltage
5 +3.3V2 I 3.3 V DC 3.3 V DC power source
6 HEATN I 0/3.3 V DC Fuser heater lamp: On/Off
7 SLEEP I 0/3.3 V DC Sleep mode signal: On/Off
8 ZCROSS O 0/3.3 V DC (pulse) Zero cross signal
9 +24V2 O 24 V DC 24 V DC power source (via interlock switch)
10 +24V2 O 24 V DC 24 V DC power source (via interlock switch)
11 PGND - - Ground
12 PGND - - Ground
YC104 1 +24V1 O 24 V DC 24 V DC power source
Connected
to the left
cooling fan
motor
2 FAN O 0/24 V DC Left cooling fan motor: On/Off
YC105 1 +3.3V2 O 3.3 V DC 3.3 V DC power source
Connected
to the fuser
thermistor
2 THERM I Analog Fuser thermistor detection voltage
YC101
YC103
YC104 YC105 YC102

Kyocera FS-1350DN Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	6 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Processor model	PowerPC–440F5
Maximum internal memory	1152 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	54 dB
Power supply type	AC 220 - 240 V, 50/60 Hz
Capacity cartridge	7200 sheets
Standard media sizes	(105 x 148 - 216 x 297 mm)
Power consumption (active)	484 W
Compliance industry standards	TUV/GS, CE
Number of print cartridges	1
Total input capacity	250 sheets
Maximum input capacity	800 sheets
Maximum print size	216 x 356 mm
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Power consumption (standby)	12 W
Power consumption (PowerSave)	7.1 W
Display	LCD

Weight and Dimensions

Dimensions (WxDxH)	375 x 393 x 267 mm
