Kyocera FS-1350DN - Machine Cross Section

2H4
1-1-5

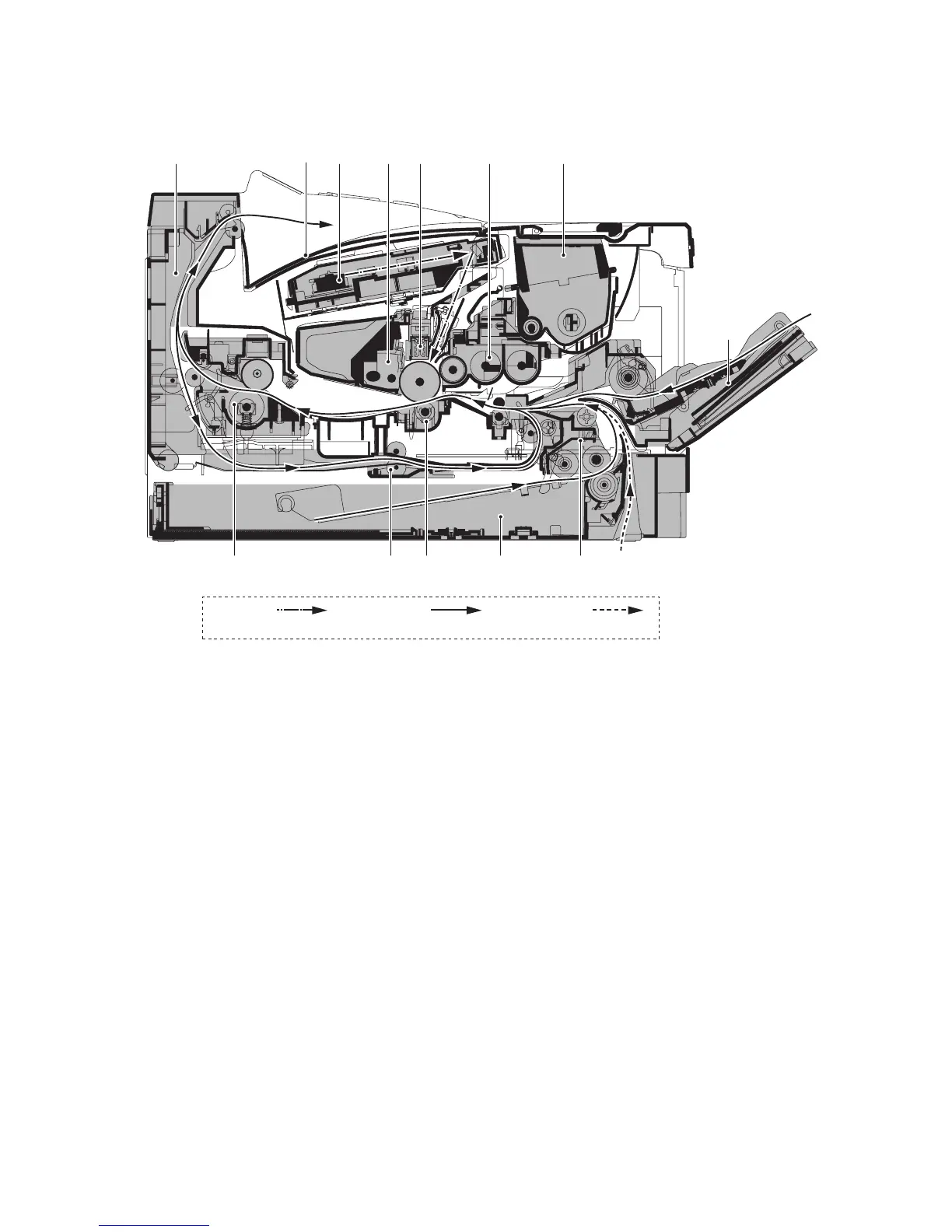

1-1-3 Machine cross section
Figure 1-1-3
2
13910 13
456811 12 7
Paper pathLight path Paper path
(option)
1. Cassette
2. MP tray
3. Paper feed/conveying
section
4. Toner container
5. Developing unit
6. Main charger unit
7. Drum unit
8. Laser scanner unit
9. Transfer/separation section
10. Fuser section
11. Paper exit section
12. Top tray
13. Duplex/conveying section
