Kyocera FS-1350DN - Paper Conveying Section

2H4
2-1-3
(3) Paper conveying section

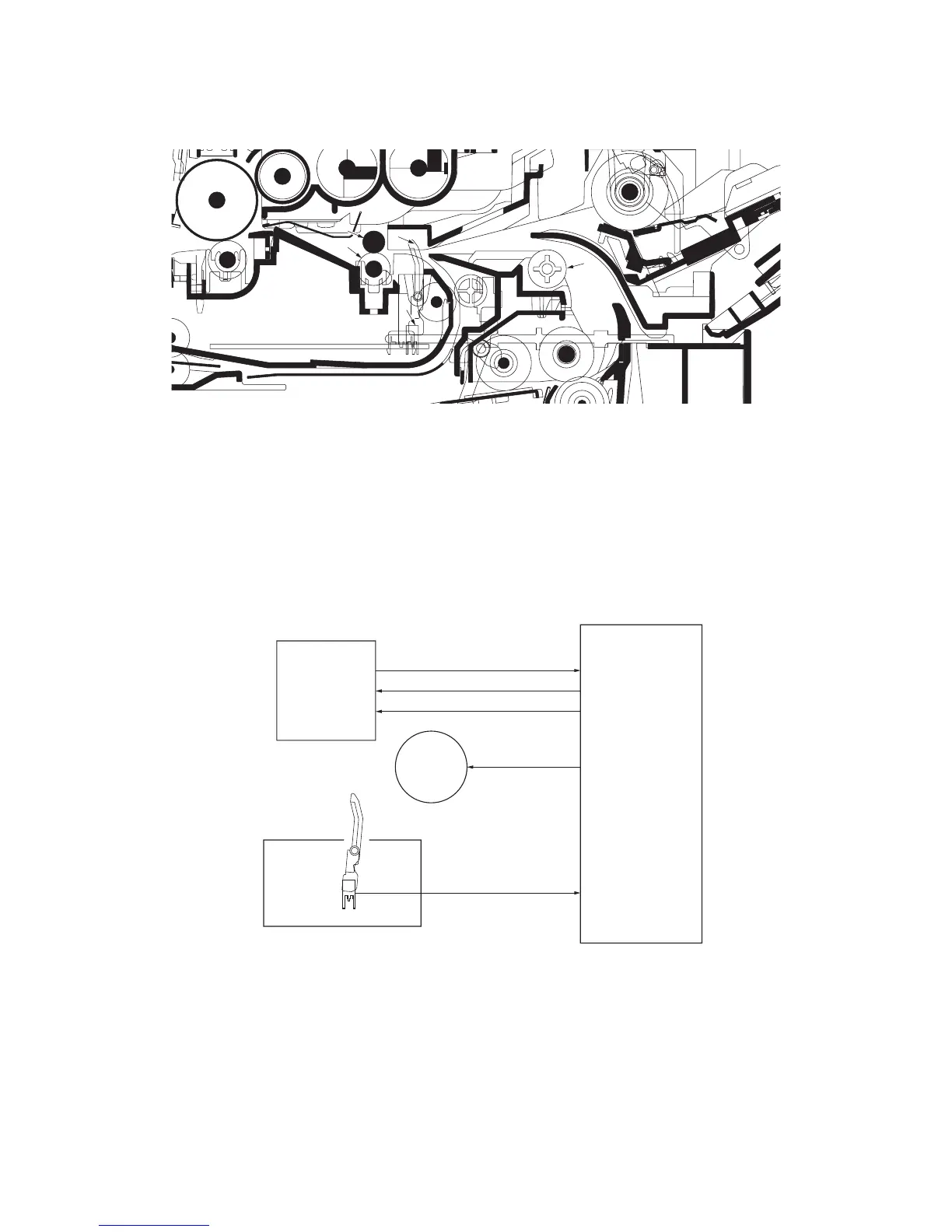

Figure 2-1-5 Paper conveying section
Figure 2-1-6 Paper conveying section block diagram
1
4
3
5
2
(1) Lower registration roller
(2) Upper registration roller
(3) Registration sensor
(4) Actuator (registration sensor)
(5) Feed pulley
MMOTRDYN
REGDRN
Registration
clutch
Main motor
Control PWB
Registration
sensor
High voltage PWB
REGN
MOTCLK
REMOTEN
YC337-11
YC334-2
YC331-3
YC331-4
YC331-5
