2H4
1-5-19
1-5-8 PWBs
(1) Detaching and refitting the control PWB
Procedure
1. Remove the right cover (See page 1-5-4).
2. Remove the thirteen connectors form the
control PWB.
3. Release the wires from the wire clamps.

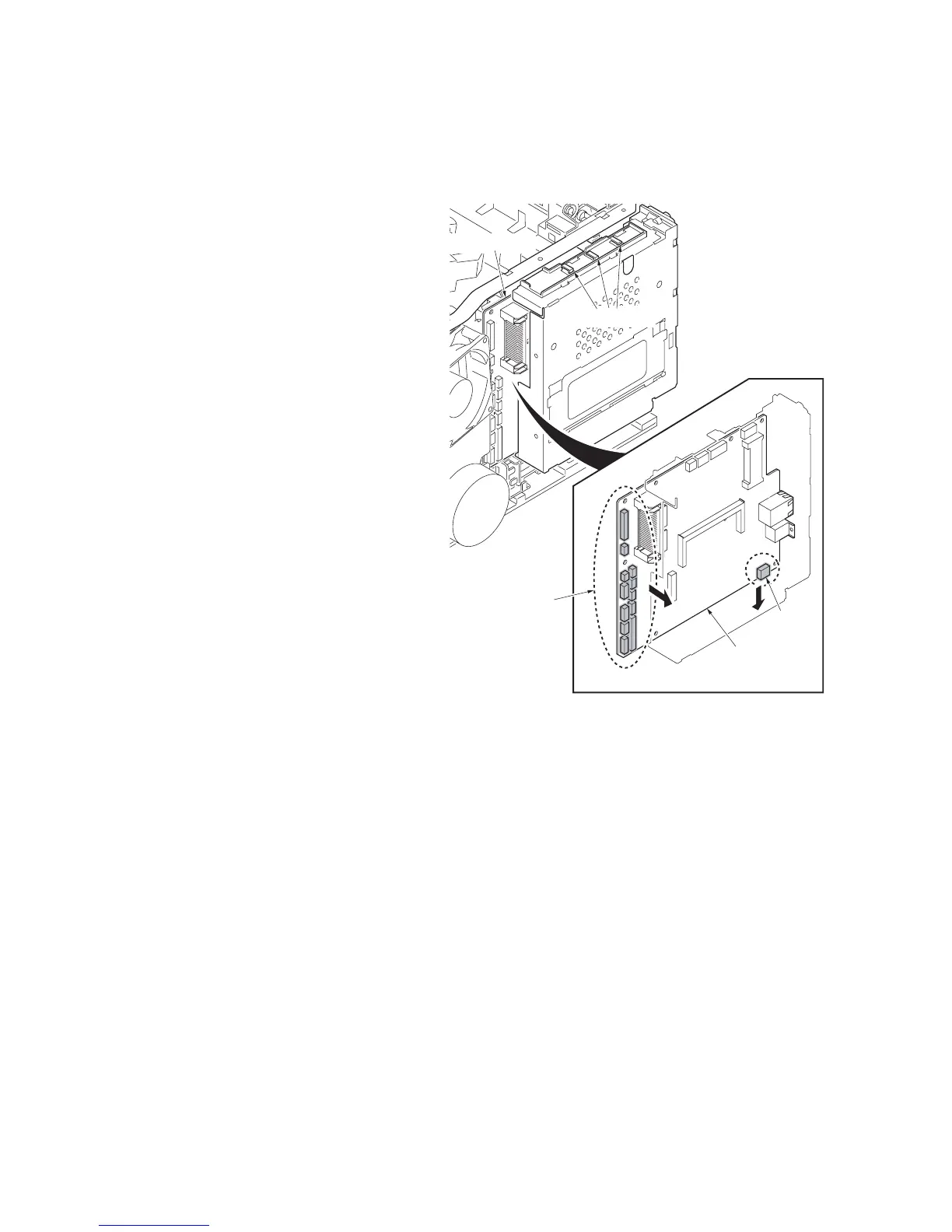

Figure 1-5-27
Connectors
(Twelve)
Connector
Control PWB
Control PWB
Wire clamps
