2K3/2L3
1-5-5
(2) Detaching and refitting the rear cover
Procedure
1. Remove the power cord.
If the document feeder is installed,
remove its interface connector.
2. Remove two screws of the DP interface
connector and then remove the DP
interface connector.
(See page 1-5-28)
3. Remove the controller box cover.
4. Remove six screws.
5. Pull the rear cover upwards and then
release three hooks.
6. Remove the rear cover.

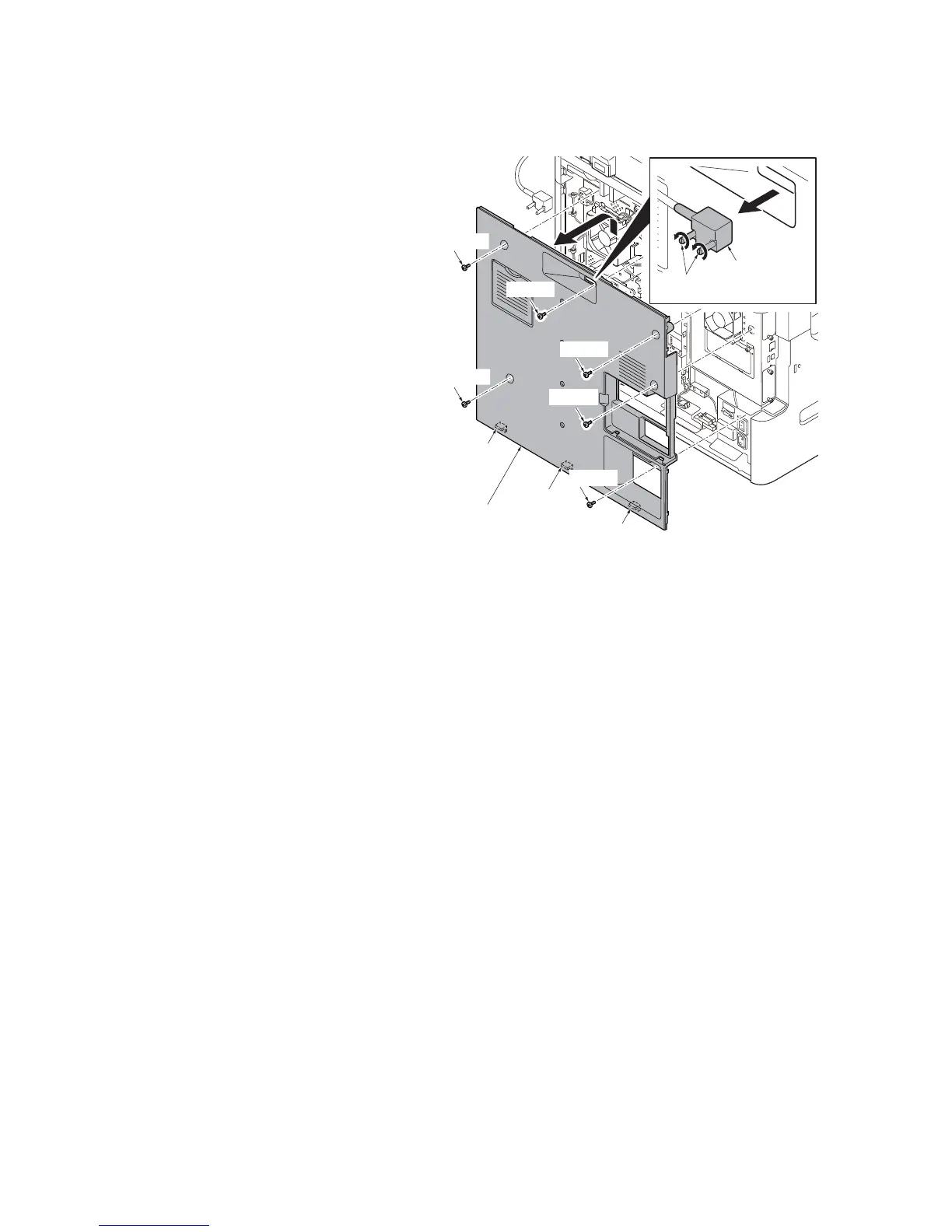

Figure 1-5-6
Screw
Rear cover
Hook
Hook
Hook
DP interface
connector
Screw
Screw
Screw
Screw
Screw
Screw
