Kyocera KM-C2525E Service Manual

2JL/2JJ/2JG/2JD
2-1-7
2-1-3 Developing section
(1) Developing section
The dual component developing system develops magnetic brushes (of developer) around the magnet roller. The toner
moves onto the sleeve roller which is positioned parallel to the drum and generates a thin layer of toner. The sleeve roller
is pressed against the drum with the DS pulley for developing static latent image.
.

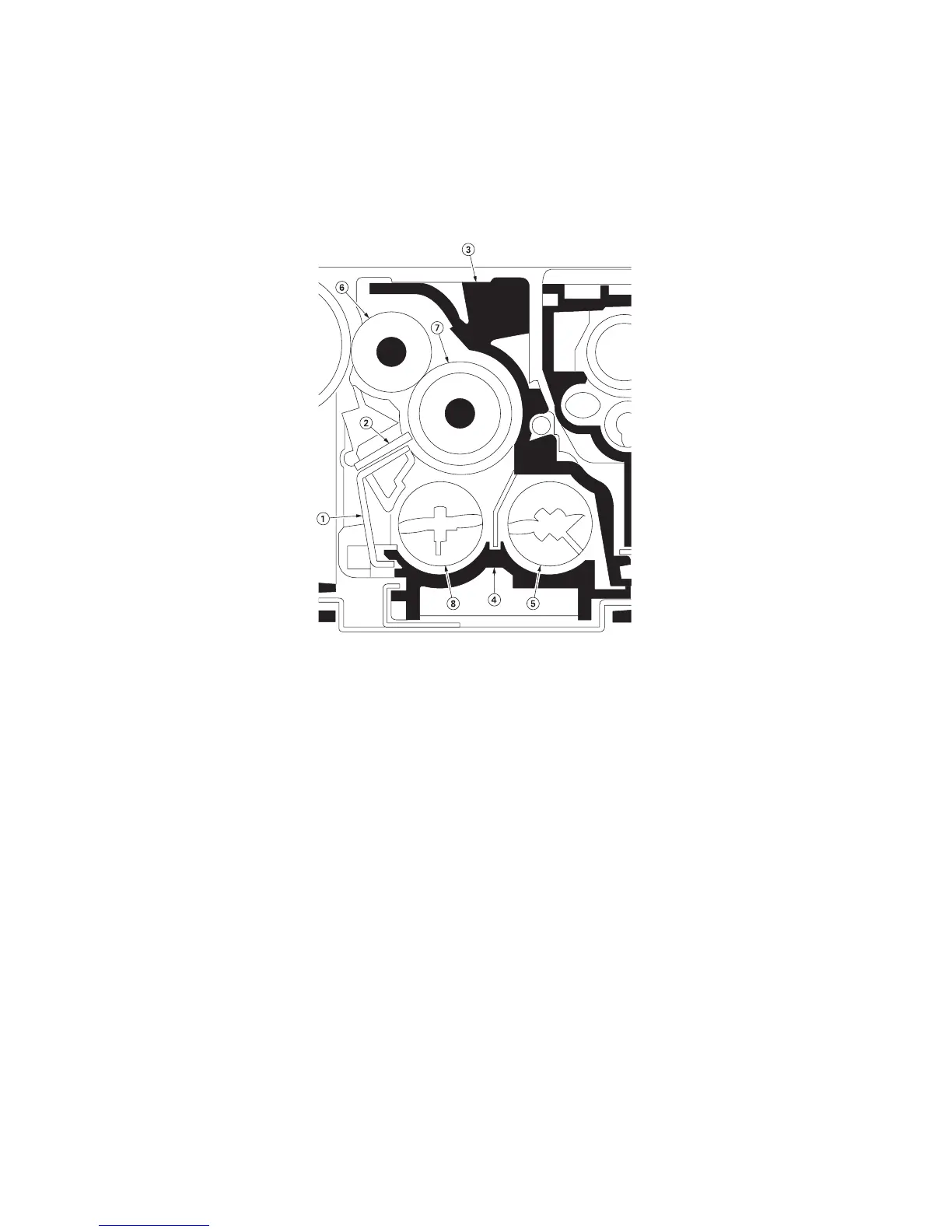

Figure 2-1-9 Developing section
(1) Case DLP stay
(2) DLP blade
(3) DLP case
(4) DLP lid
(5) DLP screw B
(6) Sleeve roller
(7) Magnet roller
(8) DLP screw A
