Kyocera KM-C2525E Service Manual

2JL/2JJ/2JG/2JD
2-1-17
2-1-8 Duplex section
(1) Duplex section
In duplex mode, after printing on to the reverse face of the paper, the paper is reversed in the feedshift section and con-
veyed to the duplex section. The paper is then conveyed to the paper feed section by the duplex B roller and duplex A
roller.

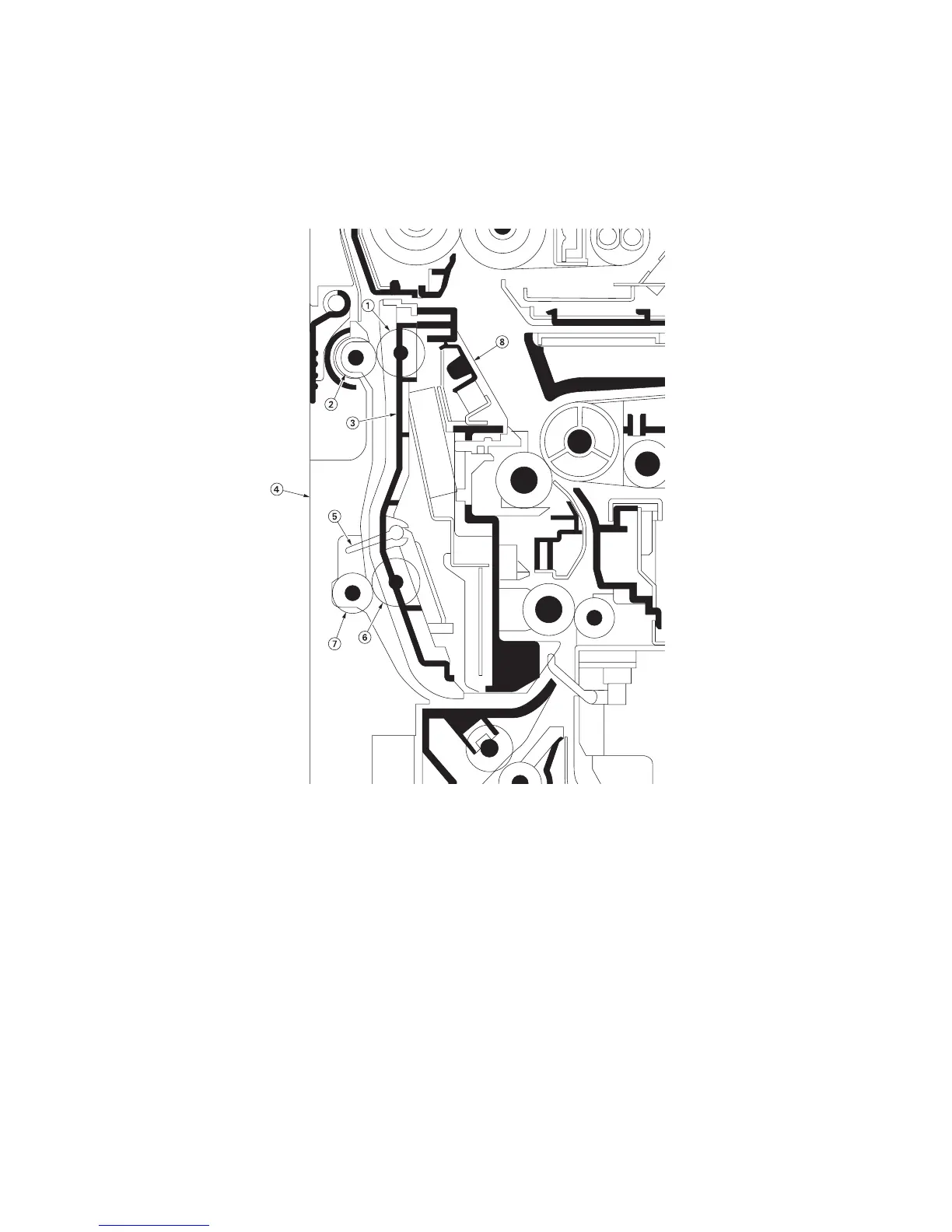

Figure 2-1-23 Duplex section
(1) Middle pulley
(2) Duplex B roller
(3) DU frame
(4) Left cover 1
(5) Duplex jam detection switch (DUJDSW)
(6) Middle pulley
(7) Duplex A roller
(8) Conveying guide
