2JL/2JJ/2JG/2JD
1-5-8
1-5-3 Optical section
(1) Detaching and refitting the exposure lamp
Follow the procedure below to replace the exposure lamp.
Procedure
1. Remove the original platen or DP.
2. Remove fifteen screws and remove the rear
cover.

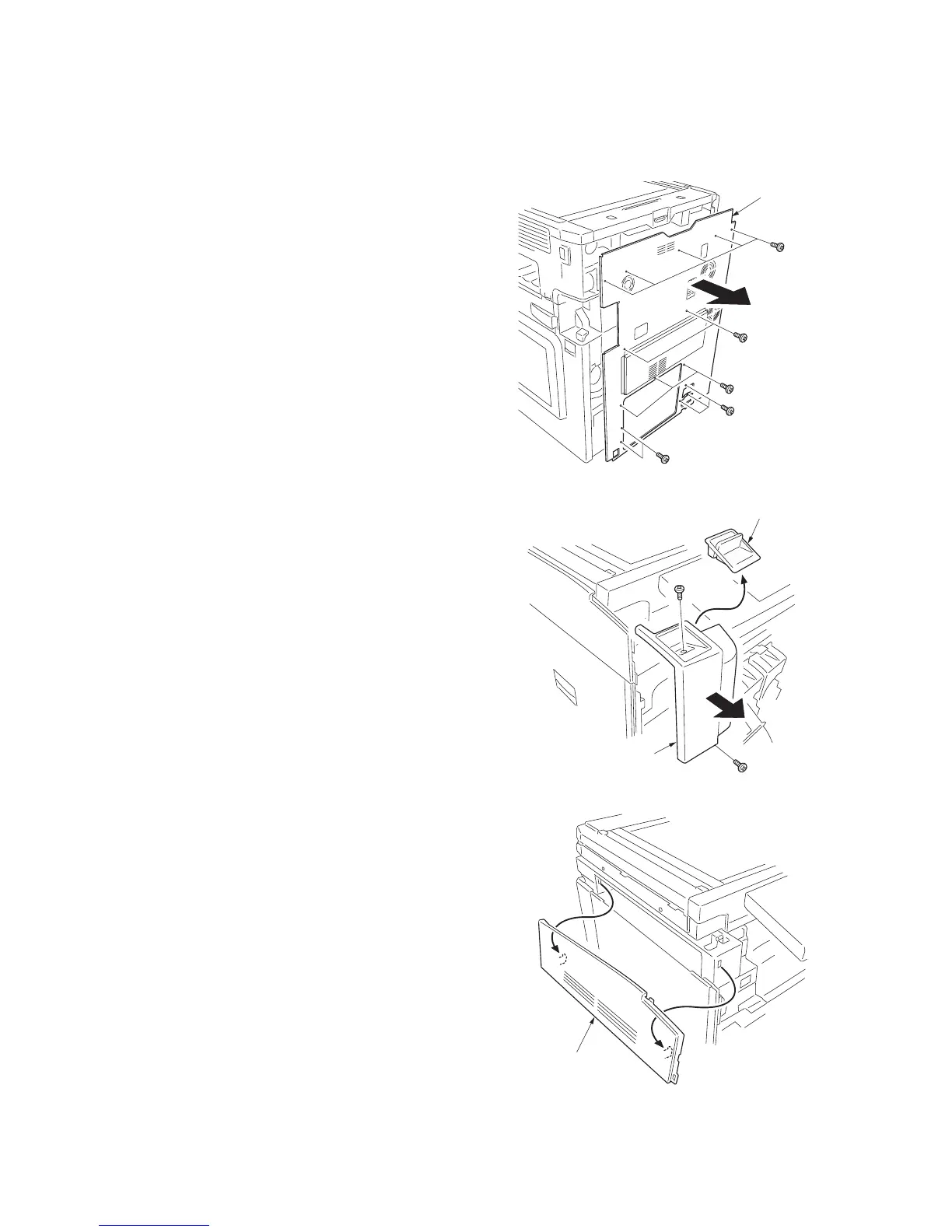

Figure 1-5-16
3. Open the front cover.
4. Turn the toner container lock lever for the
toner container clockwise to release the
lock.
Lift the clip to open the toner container
[black].
5. Remove the clip support.
6. Remove two screws and remove front left
cover 1.
Figure 1-5-17
7. Remove the inserted parts and then remove
the upper left cover.
Figure 1-5-18
Rear cove
Clip support
Front left cover 1
Upper left cover
To Next Page
