(3) Paper jam detection condition
Main unit + document processor + paper feeder (option)
Figure 7-2
Error code and JAM location
Error
code
JAM
location
Error
code
JAM
location
Error
code
JAM
location
Error
code
JAM
location
J0000 - J0503 B J1413 J4203 C
J0101 - J0508 E J4002 A J4208 E
J0104 - J0509 A J4003 A J4209 C
B
B
B
A
D
C
E
1
5
2
3
4
6
7
8

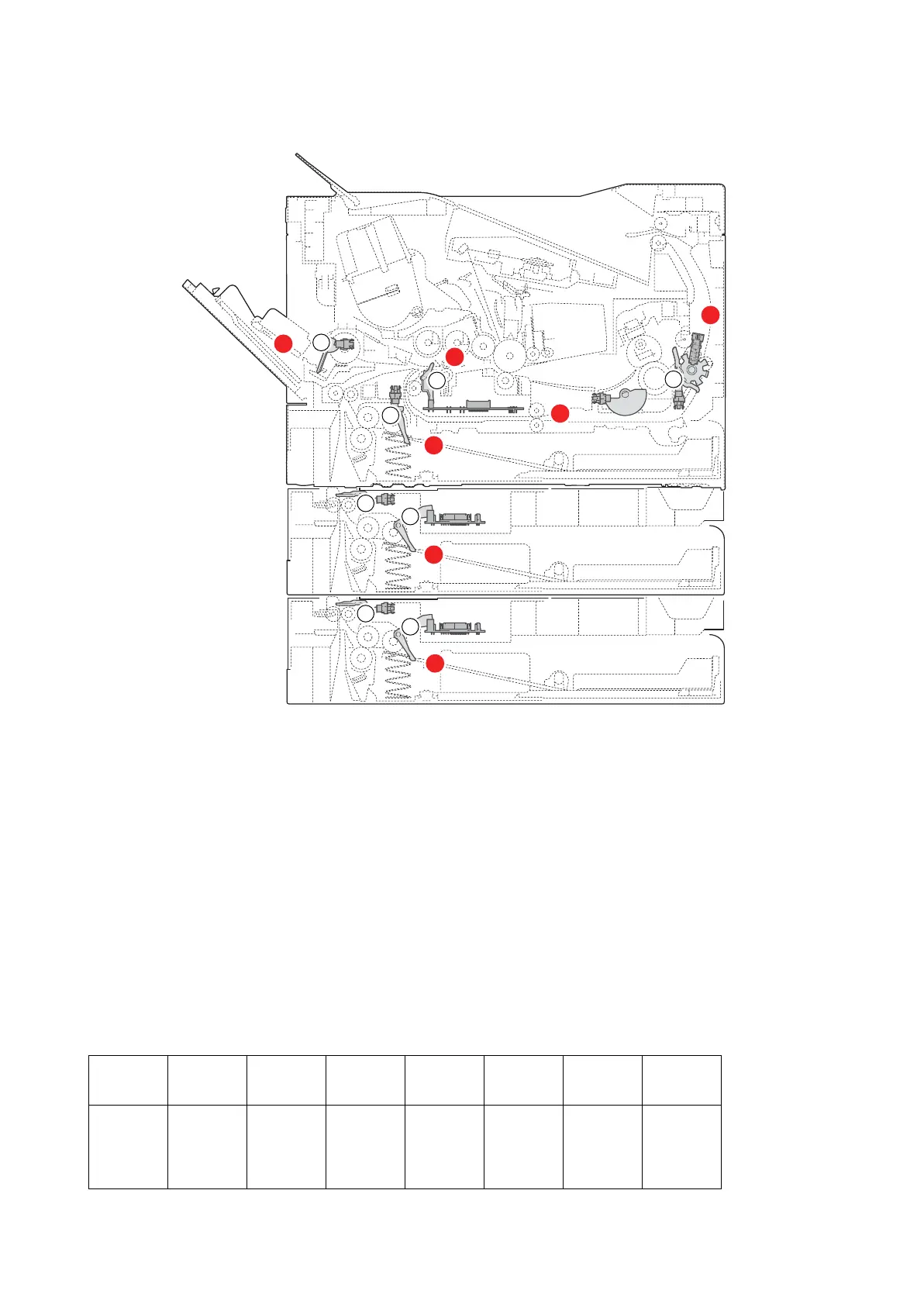

[Paper jam location]
A. MP tray paper jam
B. Paper jam in the cassette 1 (to 3)
C. Paper jam inside the front cover
D. Paper jam inside the rear cover
E. Paper jam inside the duplex unit
[sensor(paper conveying)]
1. Paper sensor
2. MP paper sensor
3. Registration sensor
4. Eject sensor
5. PF paper sensor 1
6. PF feed sensor 1
7. PF paper sensor 2
8. PF feed sensor 2
