Kyocera PF-1100 - Machine Right Side

2RV/2RW/2RX/2RY/3RA
3-3

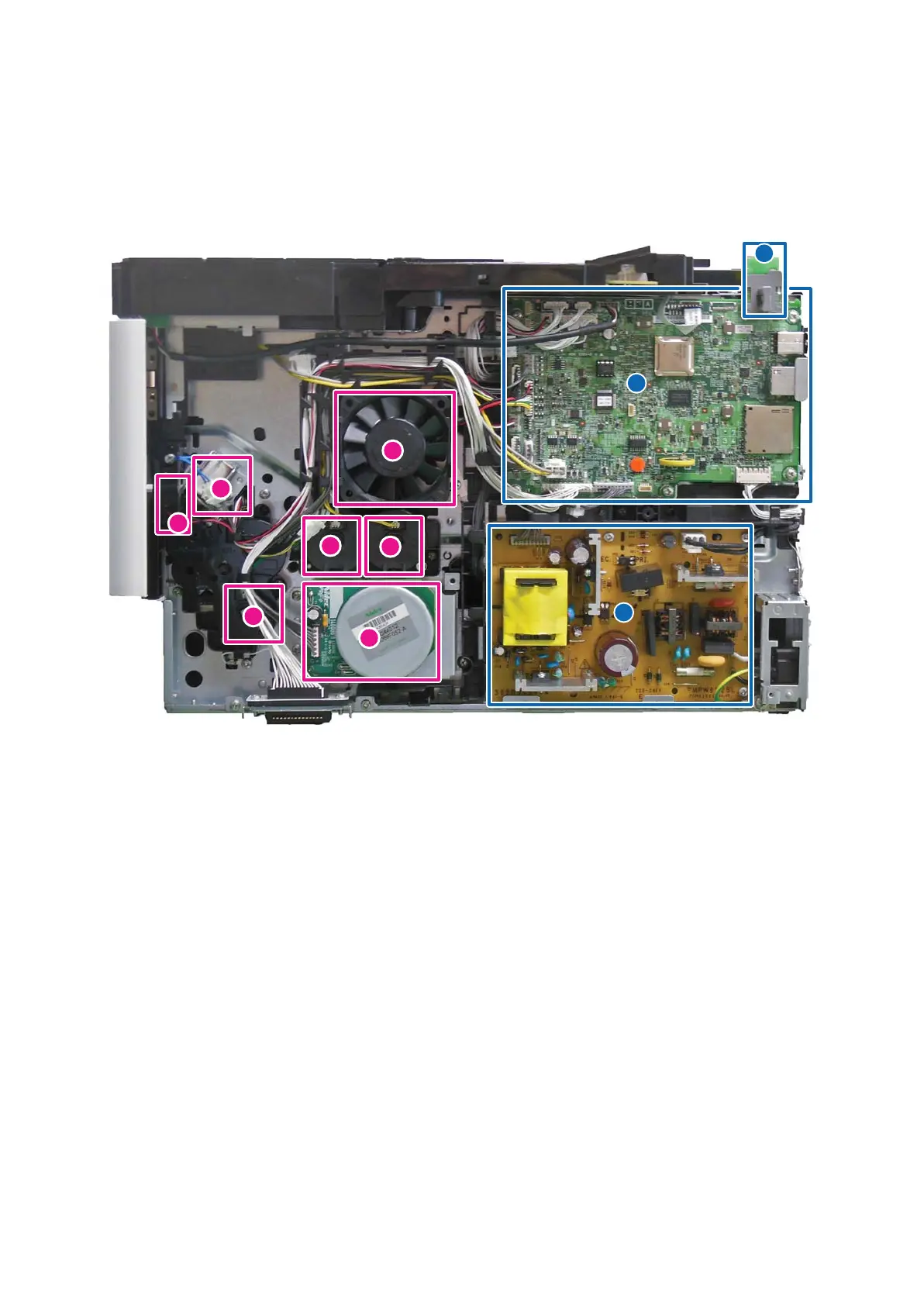

(1-2) Machine right side
Figure 3-3
C
1
A
B
5
3
4
2
6
7
1. Paper feed motor
2. Paper feed clutch
3. Registration clutch
4. Developer clutch
5. Rit side fan motor
6. MP solenoid
7. Power switch
A. Main/Engine PWB
B. Low voltage power source PWB
C. Wi-Fi PWB
