Kyocera TASKalfa 351ci - 10 Troubleshooting; Regular Maintenance; Cleaning; Toner Container Replacement

(Page.10/11)
Service Bulletin Ref. No. 2TV-0015 (J130)
(Service information) <Date> July 19, 2019
KYOCERA Document Solutions Inc.
For authorized KYOCERA engineers only.
Do not distribute to non-authorized parties.
A
B
C
CONFIDENTIAL
No
Procedure
Detail

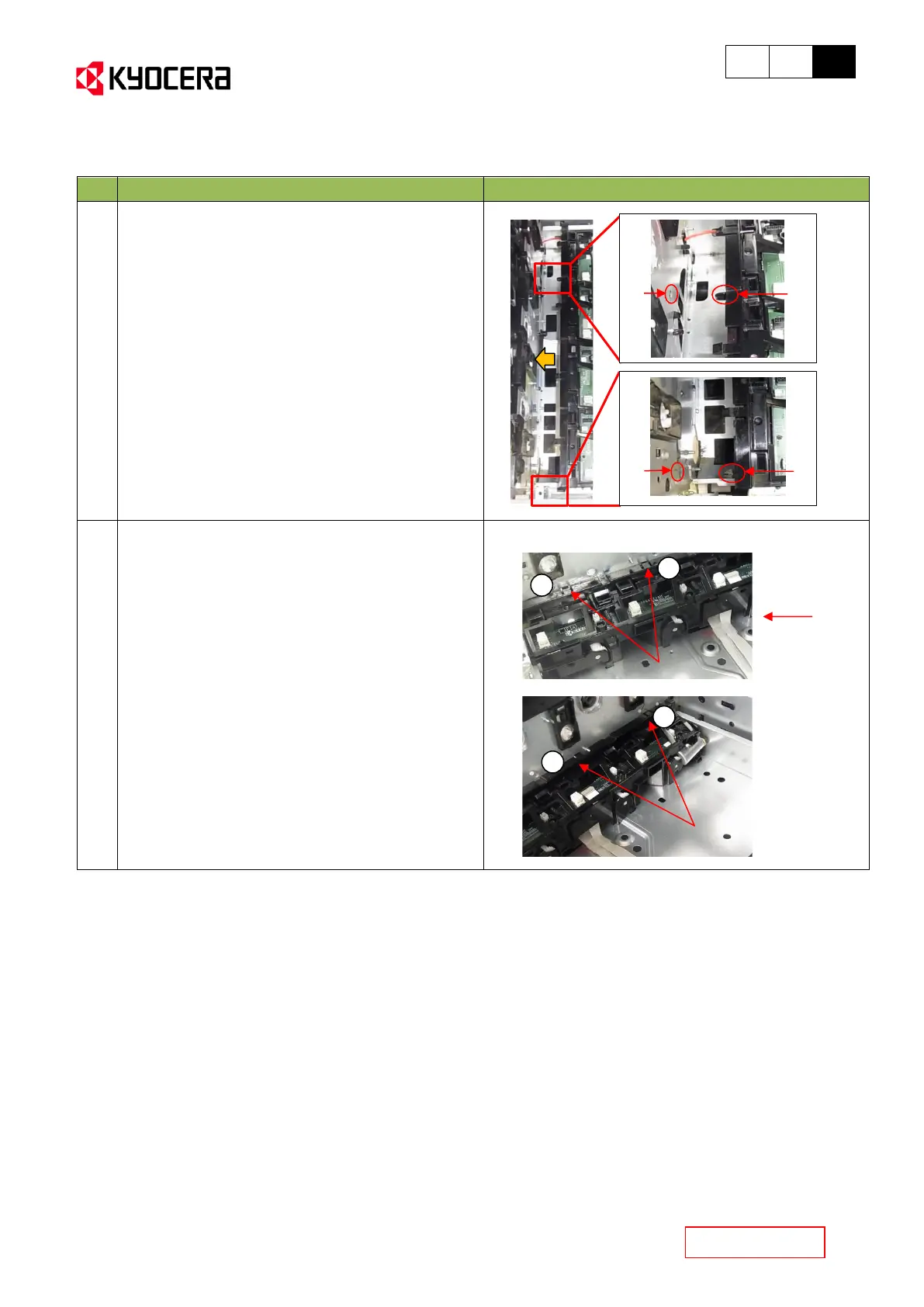

13
Insert 2 positioning bosses (F) on the LSU drive
unit into2 positioning holes (G) on the left frame of
the main unit.
14
Insert 4 upper hooks (u) in the order of 1 to 4 in
the figure.
G
G
F
F
(Front side of the main unit)
(Rear side of the main unit)
u
u
1
2
3
4
