WIFOLIFTBAR positioning
Refer to WIFOLIFT on page 8-9.
Hybrid arrays
If you are implementing a hybrid configuration carefully follow the verification procedure outlined in

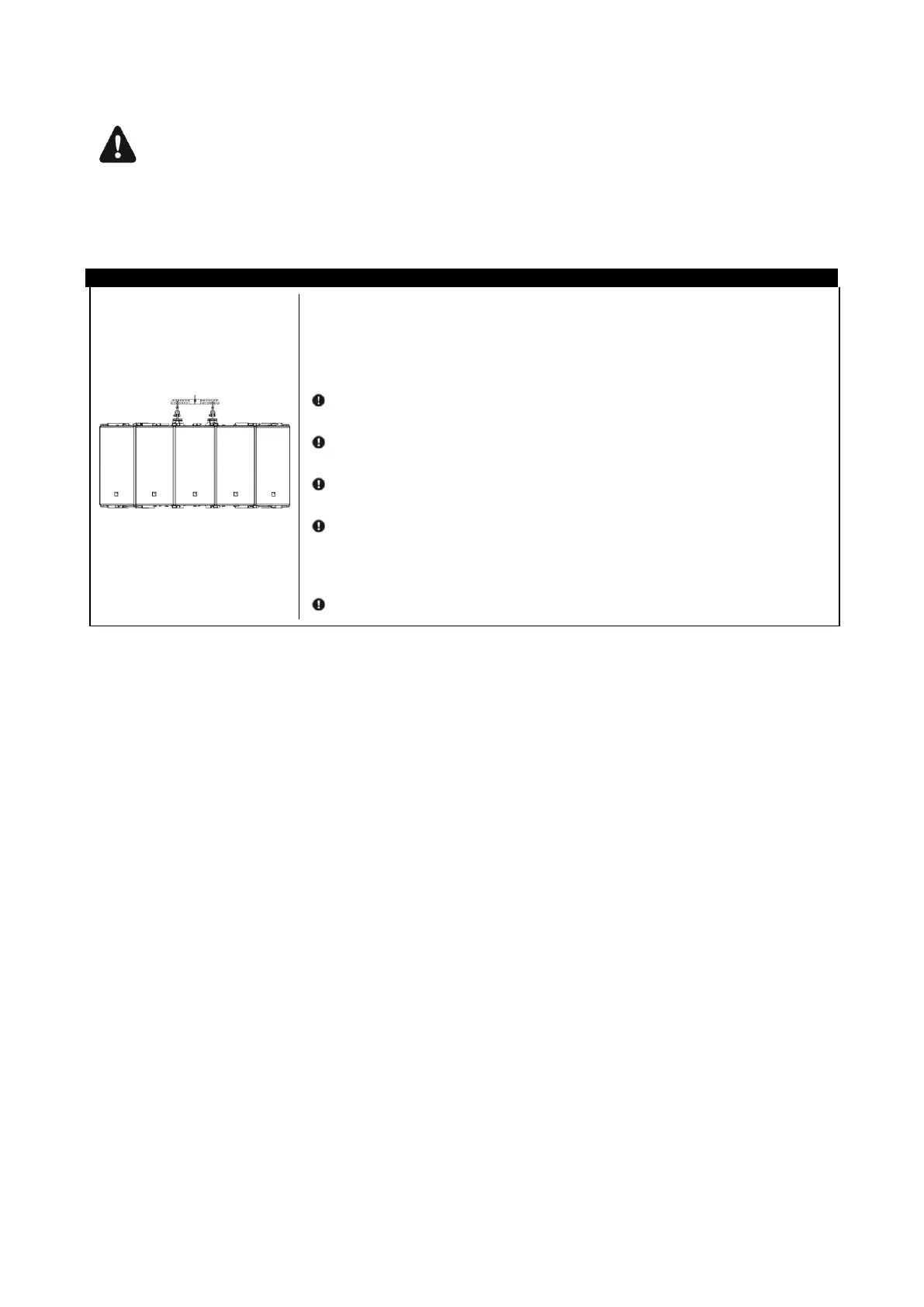

PROCEDURE C Attaching a WIFOLIFTBAR
Horizontal 3, 5 or 6 enclosure
 Place the enclosures in vertical position, side-by-side, logo down and rails
aligned.
 Remove all top WIFORIG bars from their storage location.
 Install the WIFOLIFT bar(s).
See WIFOLIFT p 8-9 at the beginning of this section.
Refer to PROCEDURE A.
 Slide and lock the WIFORIG bars into all top remaining adjacent rails.
Refer to PROCEDURE A.
 Attach a WIFOLIFTBAR to the two WIFOLIFT.
Refer to PROCEDURE C.
 Attach a shackle or a CLAMP250 to the WIFOLIFTBAR.
Refer to PROCEDURE D.
 Slightly raise the array.
 Remove all bottom WIFORIG bars from their storage location.
 Slide and lock WIFORIG bars into all bottom adjacent rails.
Refer to PROCEDURE A.
