L-Acoustics ARCS WIDE Rigging Manual

ARCS
®
WIDE SYSTEM / ARCS
®
FOCUS SYSTEM
rigging manual
VERSION 3.0
ARCSWIFO_RM_EN_3.0 w w w . l - a c o u s t i c s . c o m 16

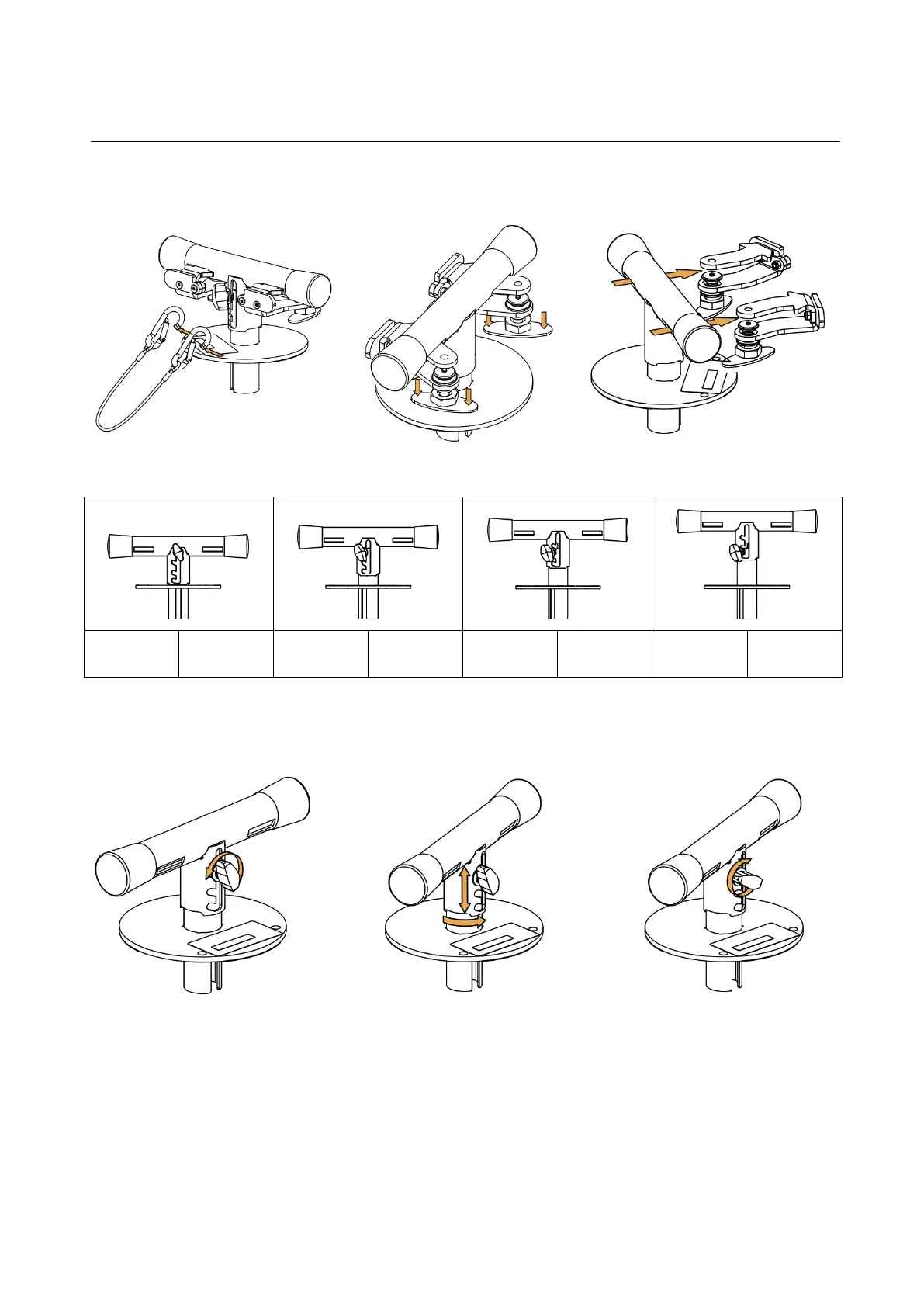

Using WIFOTILT to adjust ARCS WIDE/FOCUS site angle
PROCEDURE B
Remove the locking tabs and sling from WIFOTILT.
Adjust WIFOTILT angle.
WIDE
FOCUS
WIDE
FOCUS
WIDE
FOCUS
WIDE
FOCUS
0°
-7.5°
-2.5°
-10°
-5°
-12.5°
-7.5°
-15°
Loosen the knob.
Select the angle and notch the corresponding
slit on the knob screw.
Turn the T-shape support and
tighten the knob.
