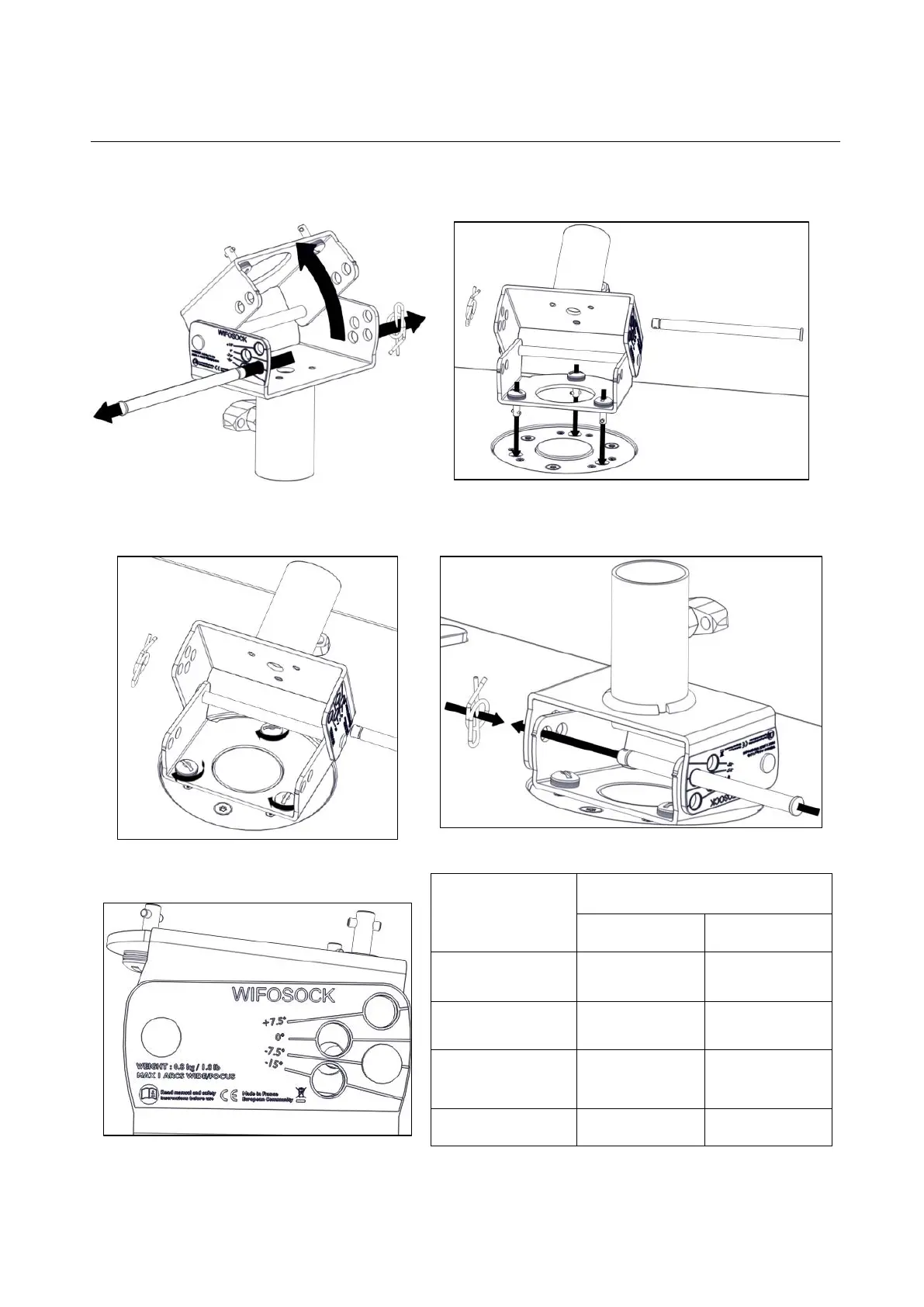

Mounting the WIFOSOCK
PROCEDURE E
Remove the pin from the angle hole.
Place the WIFOSOCK onto the socket receptacle of the
enclosure.
Secure the WIFOSOCK by applying a quarter-turn
rotation to the three screws, with a coin or a
screwdriver.
Insert the pin into the appropriate angle hole.
Possible angles on the WIFOSOCK
Selected angle on
WIFOSOCK
Realized site angle
ARCS
®
WIDE
ARCS
®
FOCUS
-15,0°
0,0°
-7,5°
-7,5°
7,5°
0,0°
0,0°
15,0°
7,5°
7,5°
22,5°
15,0°
