ARCS
®
WIDE SYSTEM / ARCS
®
FOCUS SYSTEM
rigging manual
VERSION 3.0
ARCSWIFO_RM_EN_3.0 w w w . l - a c o u s t i c s . c o m 22
Attaching a shackle or CLAMP250
PROCEDURE D
1. Refer to SOUNDVISION modeling or to the table in APPENDIX B TILT ANGLE REFERENCE CHART to
identify the hole that corresponds to the targeted tilt angle.

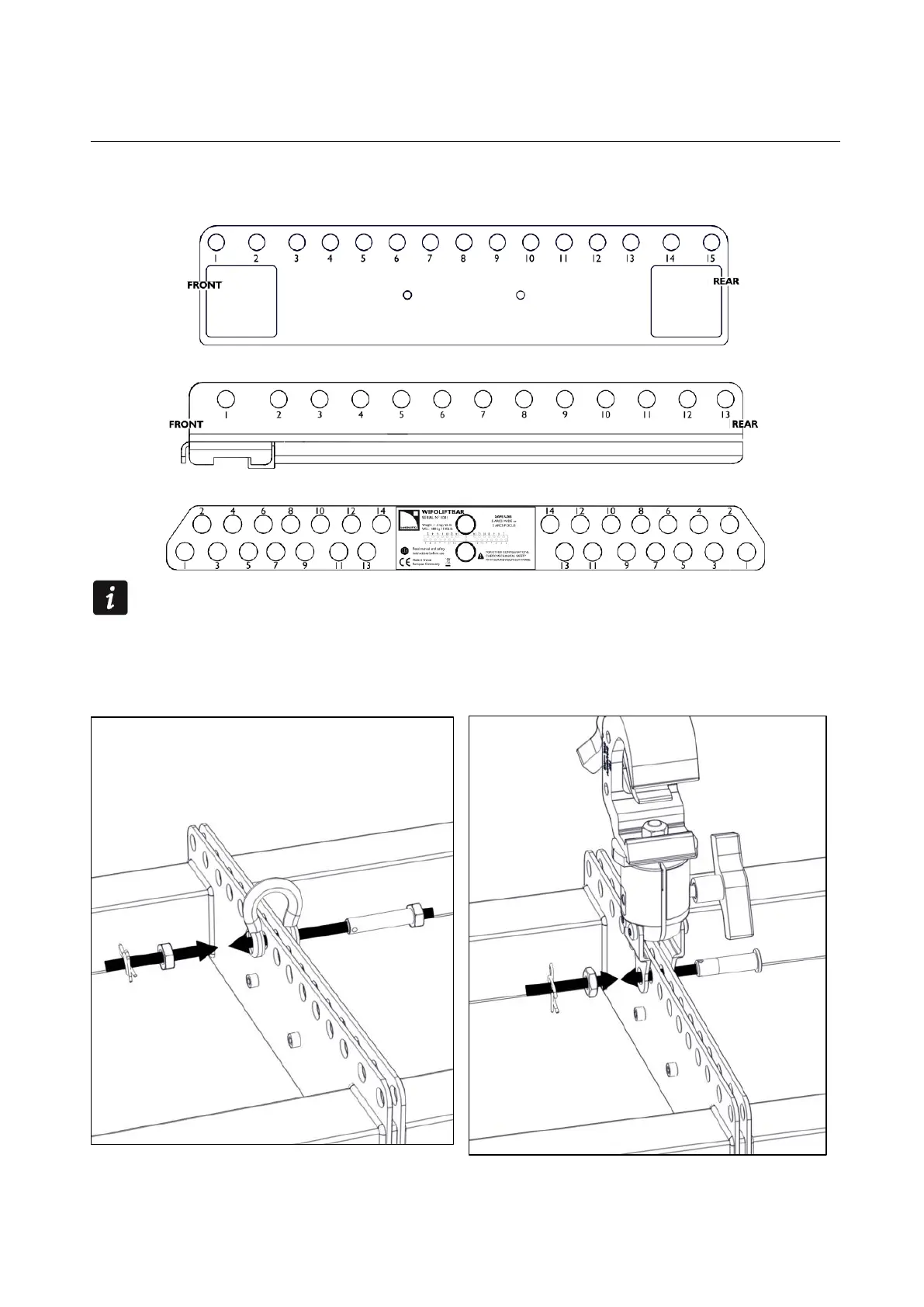

WIFOBUMB HOLES
WIFOLIFT HOLES
WIFOLIFTBAR HOLES
About site angle
Since many variables can affect the actual site angle, it is recommended to use an inclinometer.
Attach and secure a shackle or a CLAMP250 to the identified hole, by driving the pierced bolt.
With a CLAMP250, install safety slings between the KIBU-SB and the truss.
