L-Acoustics ARCS WIDE Rigging Manual

ARCSWIFO_RM_EN_3.0 w w w . l - a c o u s t i c s . c o m 19

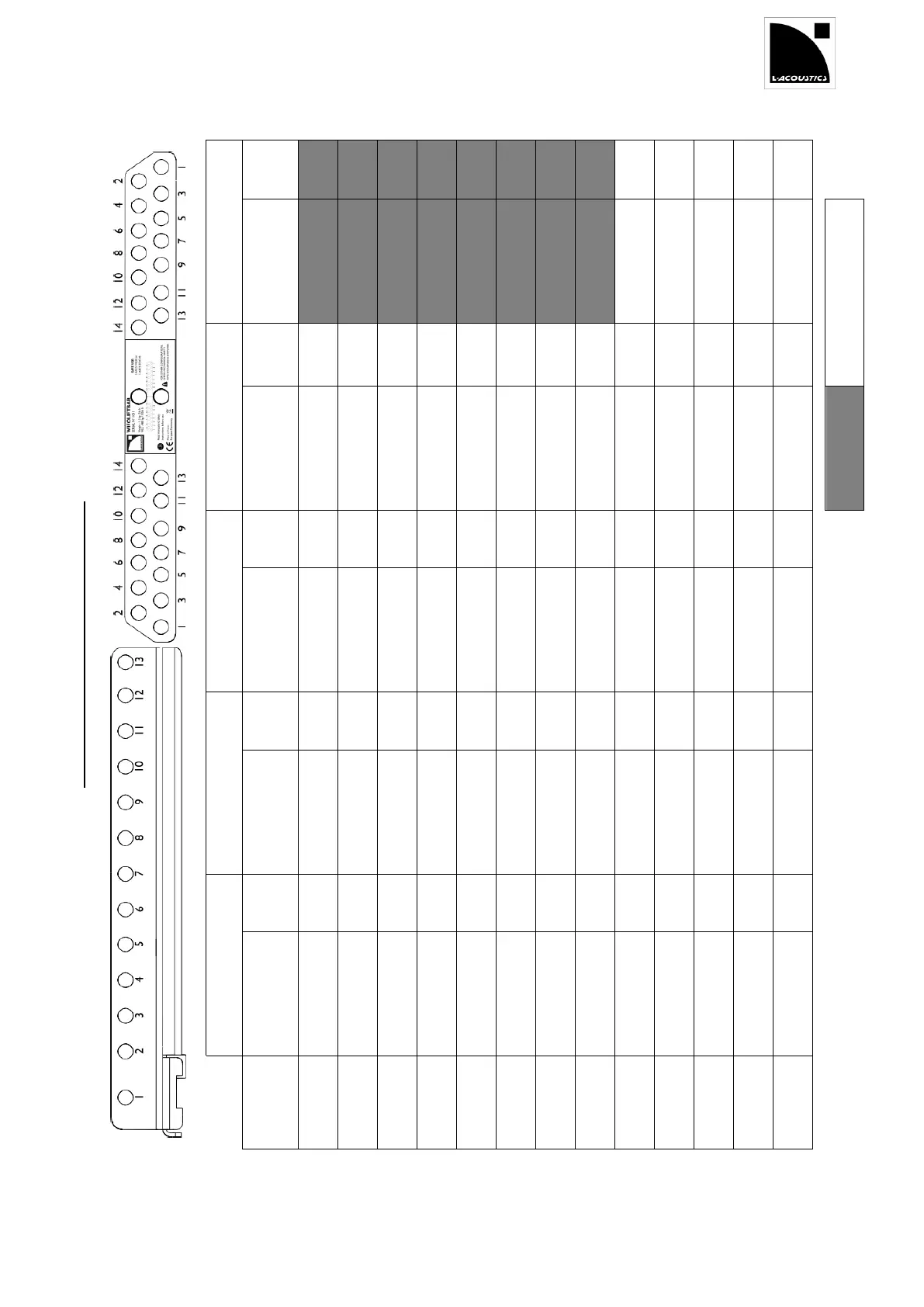

Tilt angle reference chart WIFOLIFTBAR
6 ARCS
®
WIDE
Tilt
angle
5,1°
1,4°
-2,2°
-5,7°
-9,3°
WIFOLIFTBAR
HOLE
2
3
4
5
6
= not applicable
5 ARCS
®
WIDE
Tilt
angle
34,7°
30,9°
27,5°
23,9°
20,2°
16,3°
12,4°
8,2°
4,0°
-0,1°
-4,3°
-8,8°
-12,5°
WIFOLIFTBAR
HOLE
1
2
3
4
5
6
7
9
10
11
12
13
14
5 ARCS
®
FOCUS
Tilt
angle
32,3°
28,0°
24,4°
20,4°
16,4°
12,1°
7,8°
3,3°
-1,3°
-5,7°
-10,0°
-14,4°
-18,2°
WIFOLIFTBAR
HOLE
2
3
3
4
4
5
5
6
6
7
7
8
8
3 ARCS
®
WIDE
Tilt
angle
26,0°
21,8°
17,9°
13,8°
9,5°
4,4°
1,1°
-3,2°
-7,4°
-11,7°
-15,7°
-19,7°
-23,1°
WIFOLIFTBAR
HOLE
2
3
4
5
6
7
8
9
10
11
12
13
14
3 ARCS
®
FOCUS
Tilt
angle
26,5°
21,6°
17,6°
13,4°
9,0°
4,8°
0,2°
-4,4°
-8,9°
-13,1°
-17,3°
-21,4°
-25,0°
WIFOLIFTBAR
HOLE
2
3
3
4
5
5
6
6
7
7
8
8
9
WIFOLIFT
hole
1
2
3
4
5
6
7
8
9
10
11
12
13
