Rigging system description
Rigging system description
K3

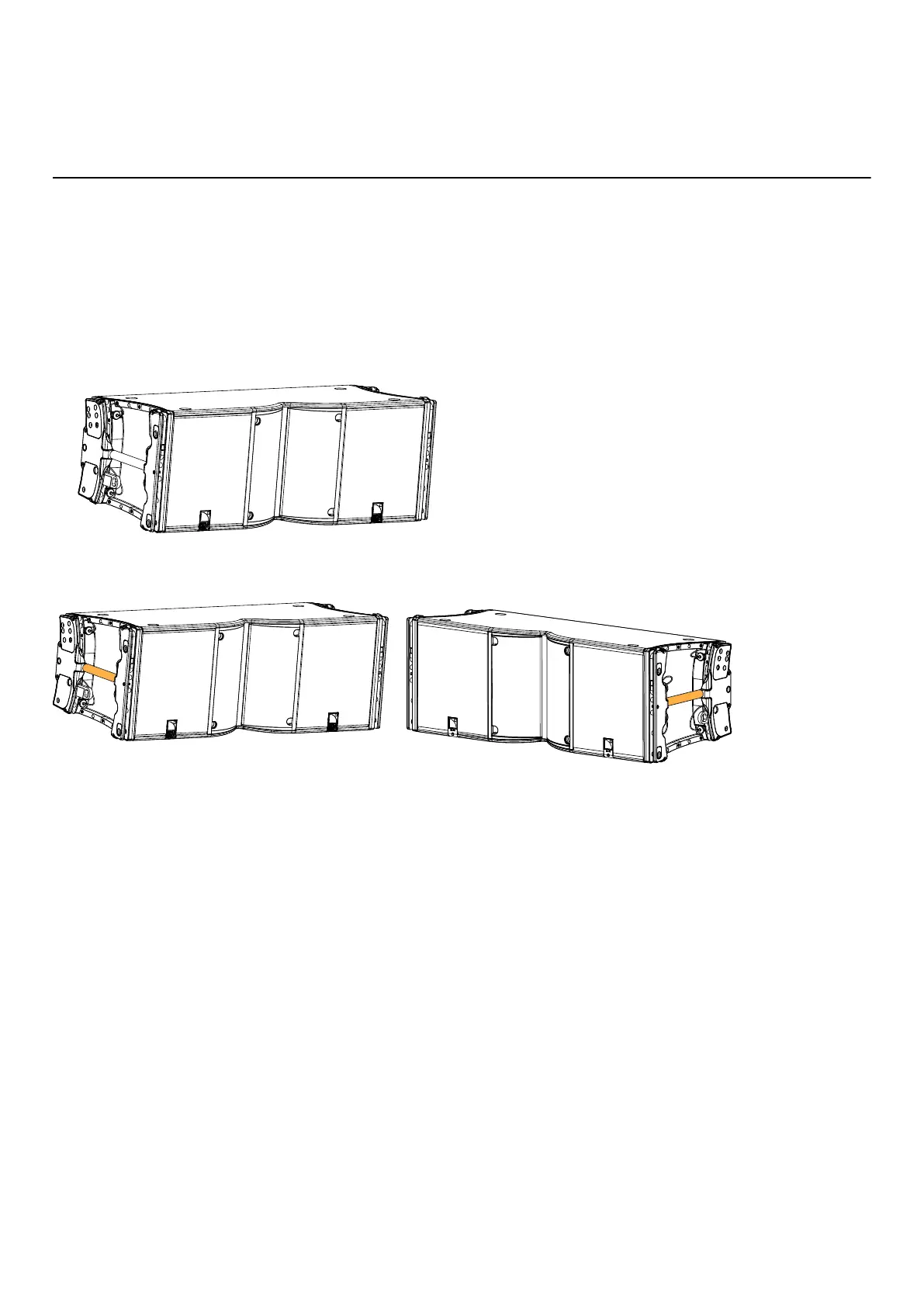

On both sides, K3 integrates two arms to connect another element of the rigging system, such as an enclosure or a ying
frame.
• At the front, a rotating arm provides a xed point around which the enclosure can freely rotate until its connection at
the rear.
• At the rear, a sliding arm enables the inter-element angle setting and the inter-element rear connection.
The angles between adjacent enclosures are secured by an automatic system that is activated in advance and locks itself
during the stacking and lifting procedures.
Eight angle positions are available: 0.25°, 1°, 2°, 3°, 4°, 5°, 7.5°, 10°.
Two ergonomic handles on both sides of the enclosure are available for transportation.
K3 owner's manual (EN) version 1.0 21
