Rigging system description
K3-BAR

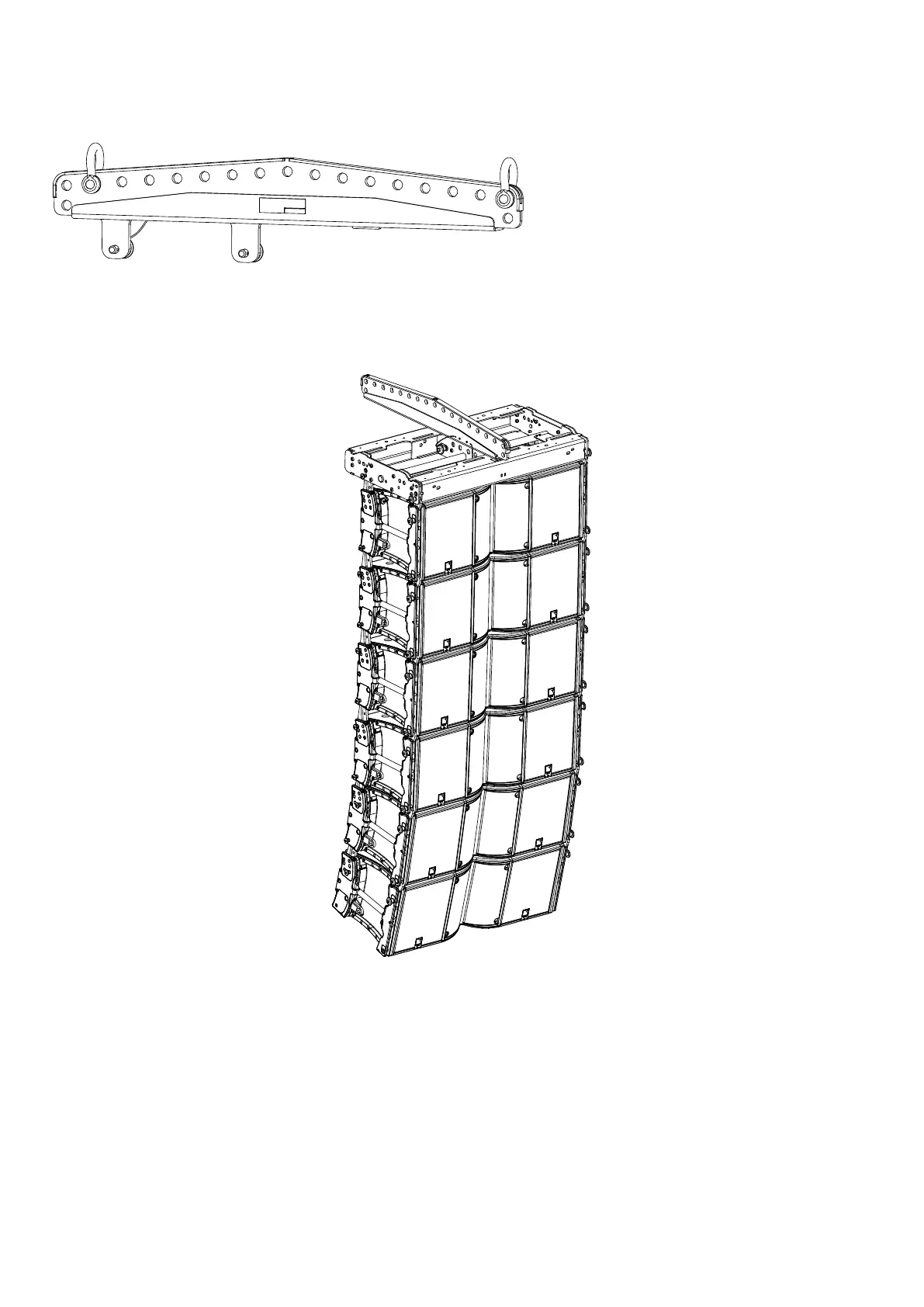

K3-BAR is an extension bar designed to be combined with K3-BUMP.
By adding a K3-BAR to the K3-BUMP, the site angle range can be increased. Seventeen holes are available on the K3-
BAR which can be attached to the K3-BUMP as a rear or a front extension and in position A or B, thus offering a total of
68 discrete positions for pick-up points.
The rear extension is suited to downwards site angles. The front extension is suited to upwards site angles.
24 K3 owner's manual (EN) version 1.0
