Rigging procedures
Stacking
Stacking K3 on KS28 with K3-TIL
T
T
ype of deployment
stacked array
Rigging accessory
K3-TIL
T
KS28-OUTRIG
Min number of operators
2
Stacking KS28
Refer to
KS28 documentation
for more information.
Procedure
1.

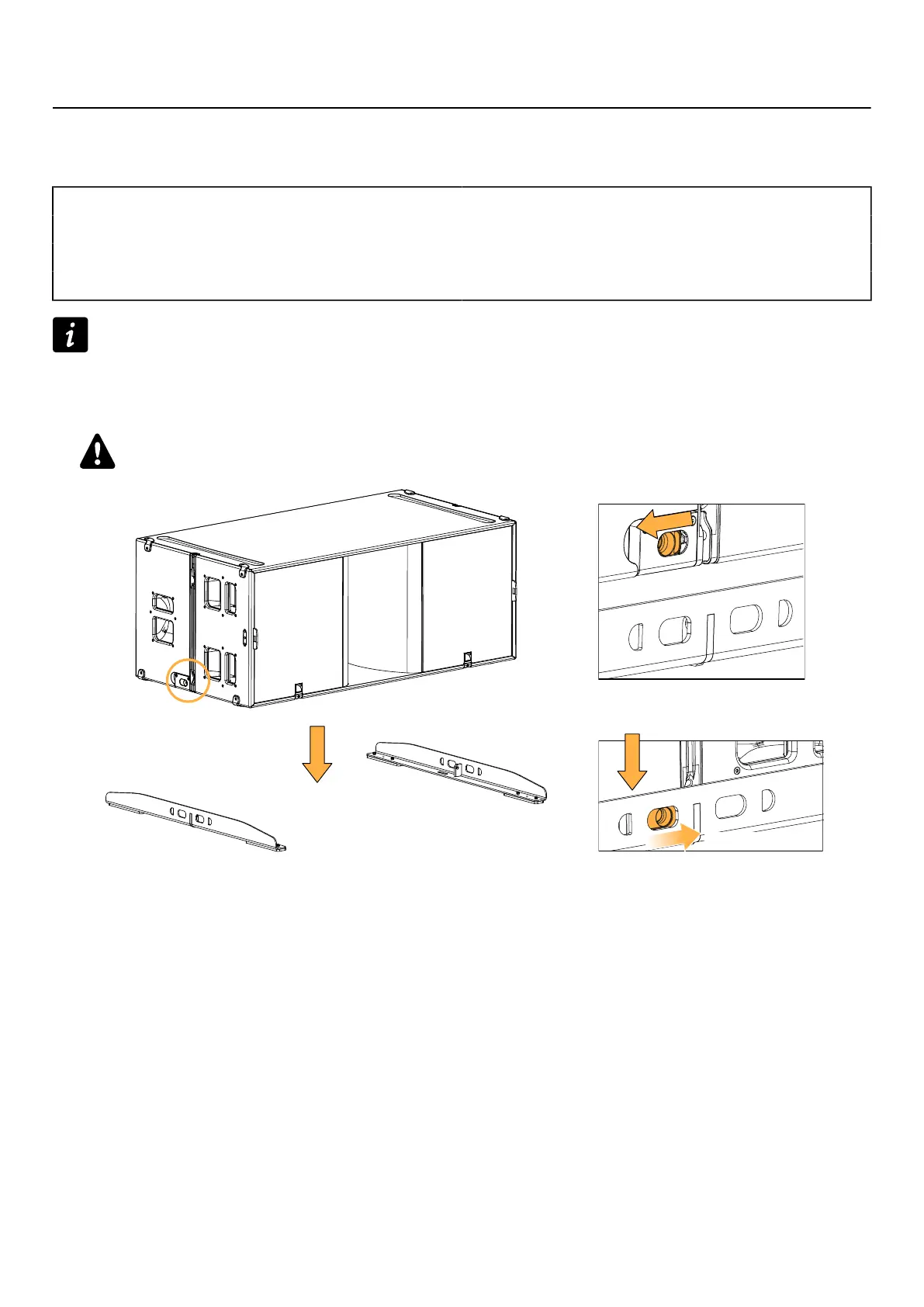

Secure KS28-OUTRIG under KS28.
Risk of crushing injury
.
Keep ngers away from the contact area between the ledge and the cabinet.
SHLAK!
K3
owner's
manual
(EN)
version
1.0
83
82
84
Table of Contents
Table of Contents
3
Safety
6
Introduction
8
K3 Long Throw Line Source
8
How to Use this Manual
9
System Components
10
Loudspeaker Cables
11
Rigging Elements
13
Electro-Acoustical Description
14
Directivity
14
Adjustable Ns
14
Directivity
17
Preset Description
18
Connectors
19
Rigging System Description
21
Ks28
22
Rigging Elements for Own Arrays
23
K3-Bump
23
K3-Bar
24
K3-Rigbar
25
Karadownk3
26
Delta 1.5T
27
La-Rakmount
28
Rigging Elements for Stacked Arrays
29
K2-Jack
29
K3-Tilt
30
Ks28-Outrig
30
Storage and Handling Elements
31
K3-Chariot
31
K3-Chariotcov
32
K3-Chariotlid
33
K3-Bumpflight
34
Mechanical Safety
35
Loudspeaker ConGurations
37
Line Source
37
Line Source with Low-Frequency Element
38
Additional DownLl Element
40
Kara / Kara II
40
Inspection and Preventive Maintenance
41
How to Do Preventive Maintenance
41
Rigging Part Inspection
42
Mechanical System Overview
42
K3 Array with K3-BUMP and K3-BAR
43
K3 Array with K3-BUMP and KARADOWNK3
44
K3 Array with K3-RIGBAR as Pullback
45
K3 Array with K3-BAR, LA-RAKMOUNT, and K3-BUMP
46
K3 Array with K3-CHARIOT and K2-JACK
47
K3 Stacked on K3-TILT and KS28 with KS28-OUTRIG
48
K3 Stacked on K3-CHARIOT with K3-CHARIOTCOV and K3-CHARIOTLID
49
Inspection References
50
Rigging Check
53
Acoustical Check
57
Rigging Procedures
61
Preparing a Block of Four K3
61
Pre-Setting the Inter-Enclosure Angles
65
Flying
67
Flying an Array with K3-BUMP and K3-BAR
67
Adding a Pullback with K3-RIGBAR
73
Rigging a Kara II DownLl Array under a K3 Array with KARADOWNK3
76
Securing LA-RAK II AVB on LA-RAKMOUNT
80
Stacking
83
Stacking K3 on KS28 with K3-TILT
83
Attaching K2-JACK Stabilizers to K3-CHARIOT
89
Adjusting the K3-CHARIOT Site Angle
92
Transporting
94
Stacking Multiple K3-CHARIOTLID on K3-CHARIOT
94
Mounting K3-CHARIOTLID to K3
96
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the L-Acoustics K Series and is the answer not in the manual?
Ask a question
